(Each)
$2.00
(Each)
(per 5)
In Stock Locally
$2.00
| Attribute | Details |
|---|
| Catalog Number | AGC212R |
| Vendor Code | BUS |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | AGC-2-1/2-R |

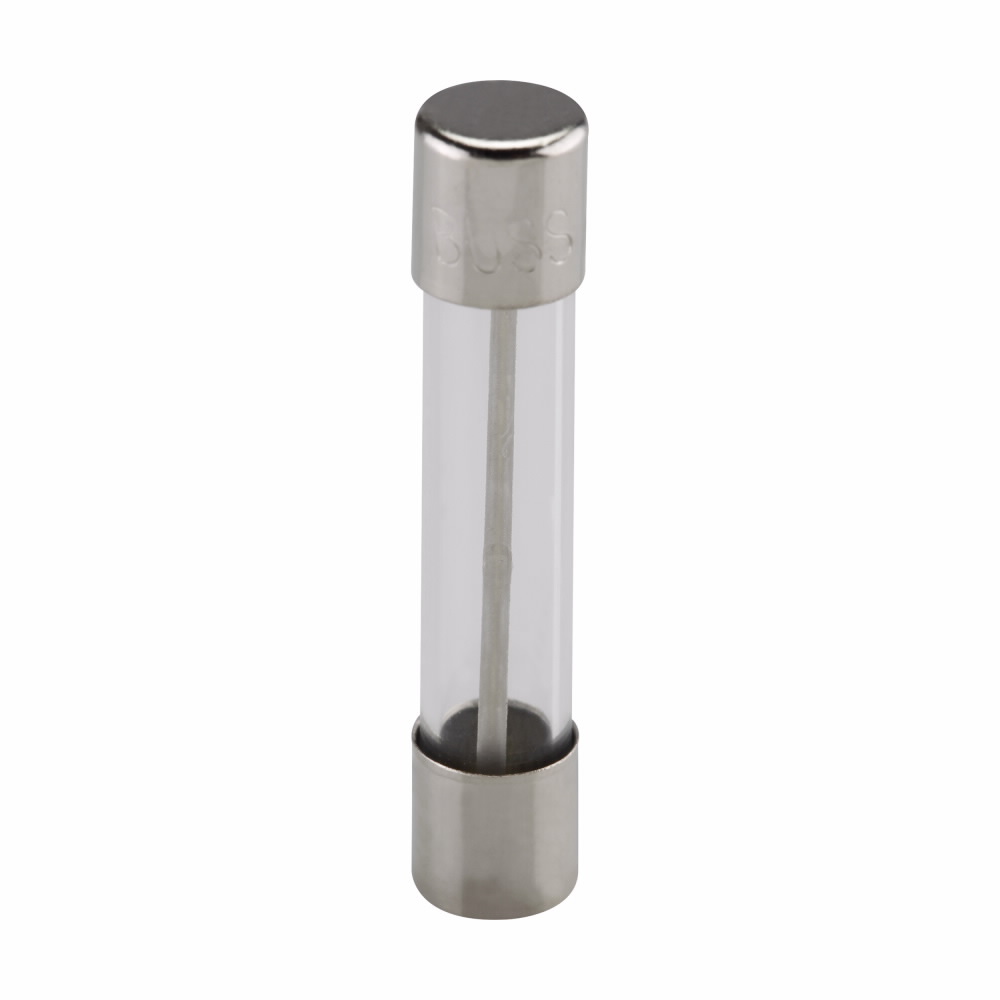

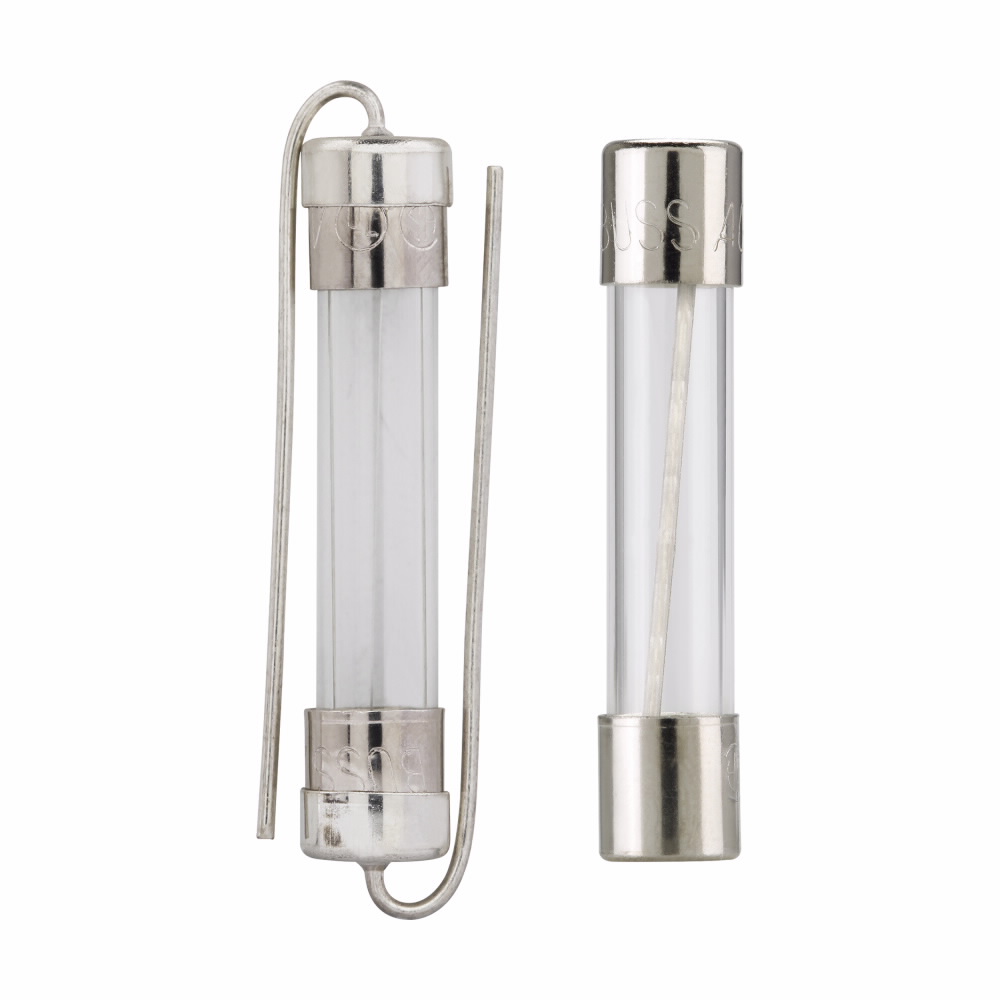

| Description | 2-1/2A 250V 1/4X1-1/4 ROHS Fast Acting Glass Fuse |
| Slang Terms | — |
| Categories | Fuses – Small Dimension Fuses |
| Classification | Glass Fuses (and Ceramic) |
| UNSPSC | 39121607 – Glass body fuses |
| UPC/GTIN | 051712655064 / 00051712655064 |
| Weight per Unit | 0.01 lbs/each |
| Minimum Order Quantity | 1 |
| Unit Price | $2.00 (Each) |
| Standard Packaging | $10.00 (Per 5) |
| Current Rating | 2-1/2 A |
| Voltage Rating | 250 V AC |
| Material | Glass (Body); Brass (End Cap) |
| Terminal Type | Ferrule |
| Interrupt Rating | 100 A @ 250 V AC; 10,000 A @ 125 V AC |
| Amperage Rating | 2.5 A |
| Connection Type | Ferrule End x Ferrule End |
| Diameter | 1/4 in; 6.3 mm |
| Overall Length | 1-1/4 in; 32 mm |
| Size | 1/4 in Diameter x 1-1/4 in Length |
| Product Type | Fuse |
| Short Description | 2-1/2 A, 250 VAC, Fast Acting Fuse |
| Long Description | Fuse, Fast Acting Fuse Speed, Ferrule Connection, 2-1/2 A, 250 V AC, Glass/Brass, 1/4 x 1-1/4 in |
| Special Features | Interrupt Rating 100A @ 250V AC, 10,000A @ 125V AC, ROHS Compliant |
| Extra Long Description | EFSE AGC-2-1/2-R BUSS SMALL DIMENSI |
| Fuse Speed | Fast Acting |
| Standards Met | UL 248-14, CSA, RoHS, CE Certified |
| Response Time | 60 min at 135%, 120 sec at 200% |
| Brand | Eaton Bussmann series |
| GTIN / UPC | 00051712655064 / 051712655064 |
| Category Description | Glass Fuses (and Ceramic) |
| Type | Fast-acting glass tube fuse |
| Packaging Info | Weight per each: 0.01; Carton: 1; Package: 5 |
| Application | Electronic Circuits |
| Standard Compliance | CE Marked, RoHS Compliant |
