| Attribute | Details |
|---|---|
| Catalog Number | AGC5R |
| Vendor Code | BUS |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | AGC-5-R |

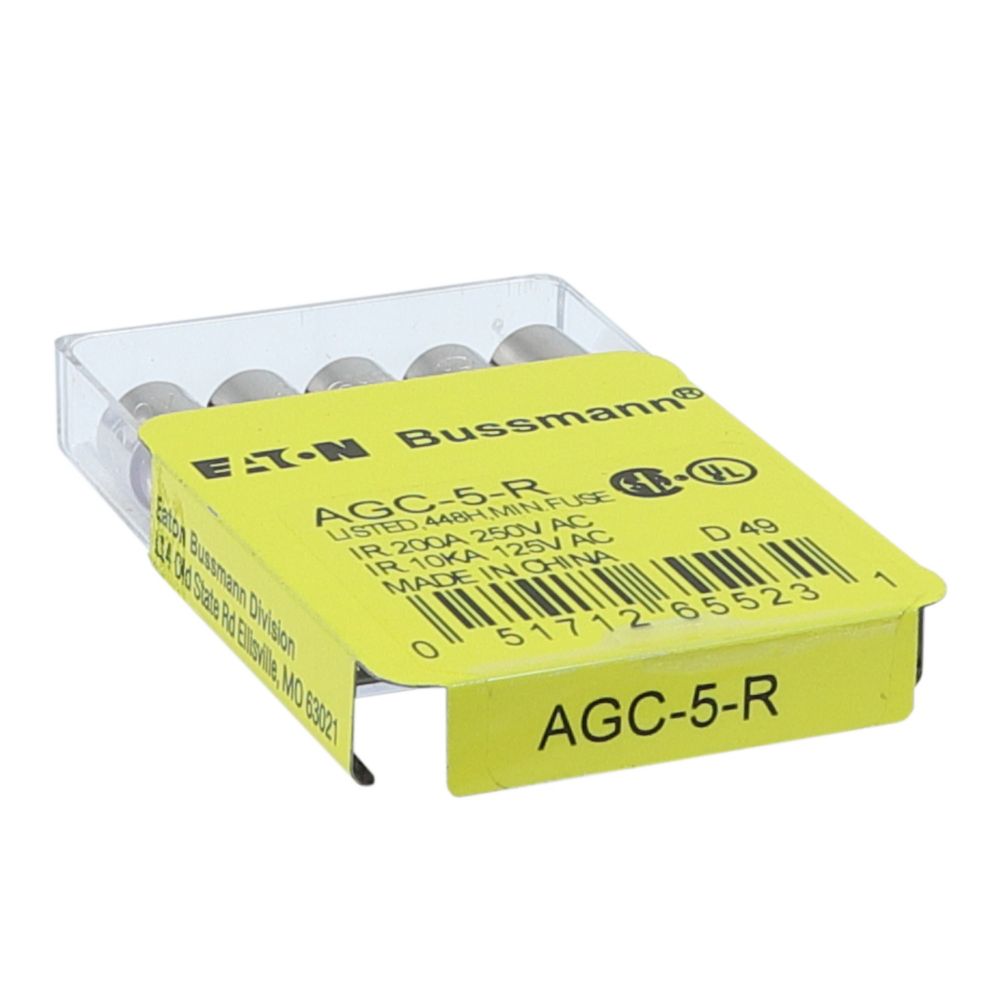

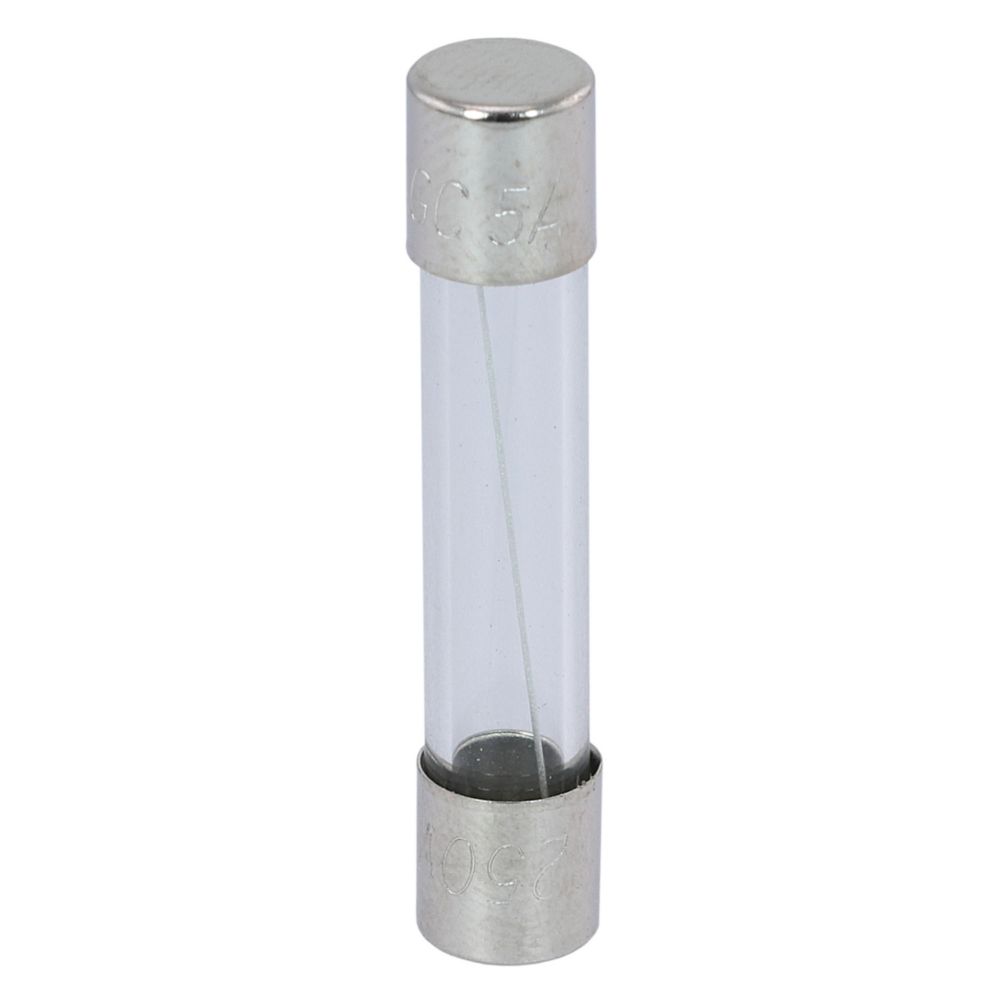

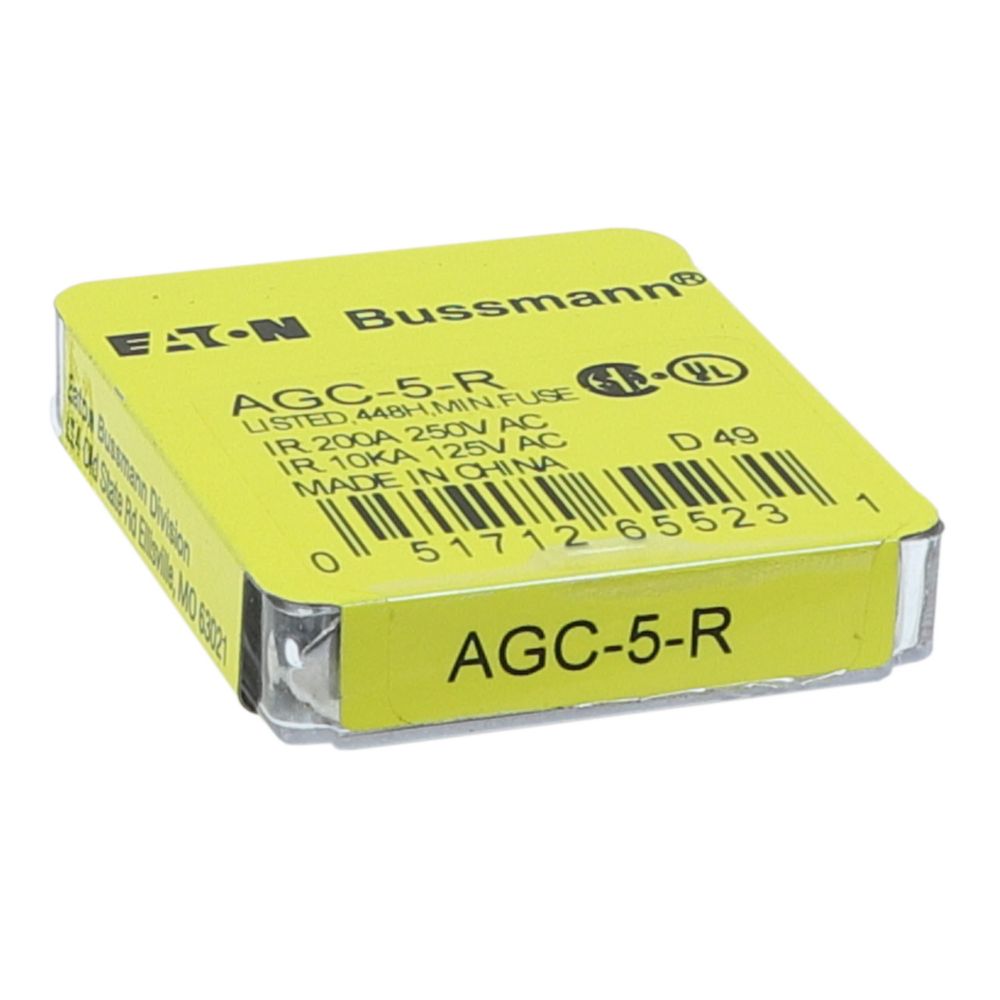

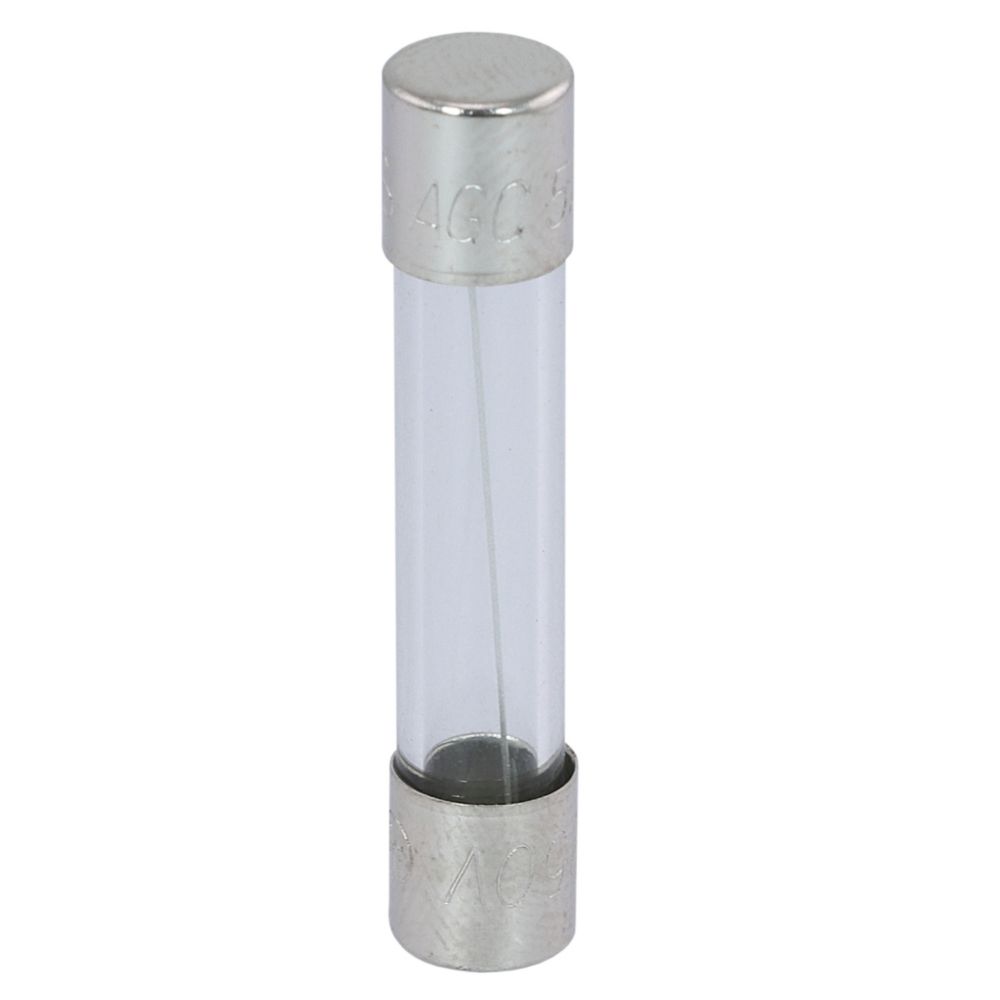

| Description | 5A 250V 1/4×1-1/4 RoHS Fast Acting Glass Fuse |
| Product Type | Fuse |
| Type | Fast-acting glass tube fuse |
| Fuse Speed | Fast Acting |
| Current Rating | 5 A |
| Amperage Rating | 5 A |
| Voltage Rating | 250 V AC |
| Interrupt Rating | 200 A @ 250 V AC; 10,000 A @ 125 V AC |
| Response Time | 60 min @ 135%, 120 s @ 200% |
| Connection Type | Ferrule End x Ferrule End |
| Terminal Type | Ferrule |
| Material | Glass (Body); Brass (End Cap), Nickel Plated |
| Diameter | 1/4 in / 6.3 mm |
| Overall Length | 1-1/4 in / 32 mm |
| Size | 1/4 in Diameter x 1-1/4 in Length |
| Weight per Unit | 0.01 lb |
| Minimum Order Quantity | 1 |
| Unit Price | $2.37 (Each) |
| Standard Packaging | $11.85 (Per 5) |
| Package Quantity | 5 CT; 10 PK |
| Indicator Type | Non-Indicating |
| Application | Electronic Circuits |
| Standards Met | UL 248-14 Listed, CSA Certified, RoHS Compliant, CE Certified |
| UPC/GTIN | 051712655231 / 00051712655231 |
| Brand | Eaton Bussmann series |
| GTIN | 00051712655231 |
| UNSPSC | 39121607 – Glass body fuses |
| Category Description | Glass Fuses (and Ceramic) |
| Special Features | RoHS Compliant, Fast-acting, Nickel Plated Brass Endcaps |
