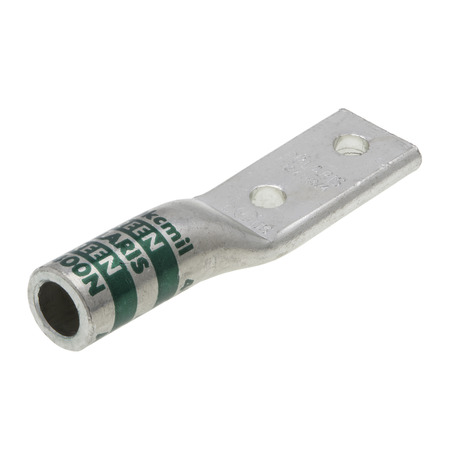

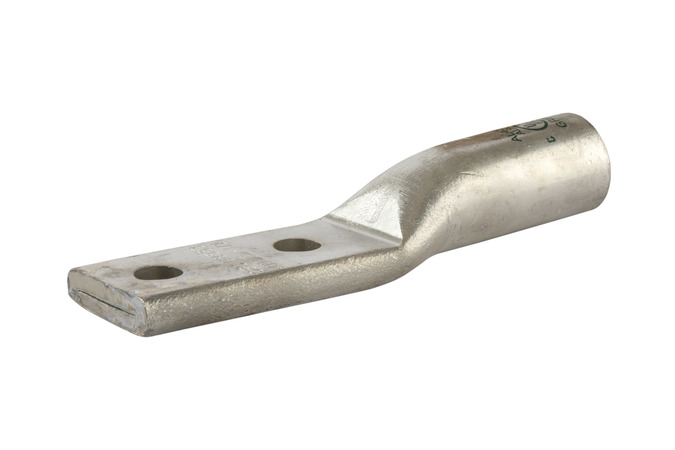

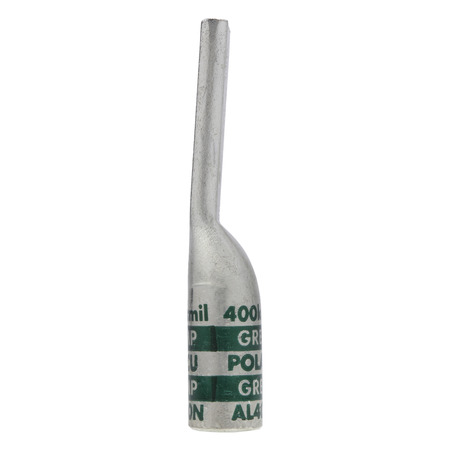

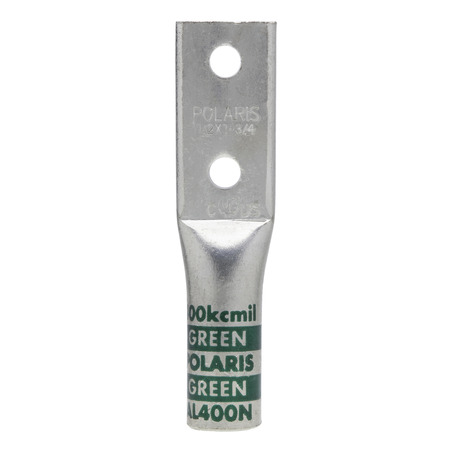

AL400N – 400 Al/Cu 2 Hole Compression Lug
$
(per )
(Each)
$50.93
(Each)
$
(per 1)
$
(per 6)
Availability:
In Stock Locally
| Category | Details |
|---|---|
| Catalog Number | AL400N |
| Vendor Code | NSI |
| Manufacturer | NSi |
| Manufacturer Part Number | AL400N |
| Description | 400 AL/CU 2 HOLE COMPRESSION LUG |
| Extra Long Description | NSI AL400N 400 MCM 1/2” 2-Hole Alu |
| Product Type | 400 MCM 1/2” 2-Hole Aluminum Long Lug – Green |
| Long Description | 2Hole Standard Barrel Aluminum Compression Lug 400 MCM – 1/2″ Bolt; produced from high conductivity aluminum tubing; tin-plated; die marked; listed for 35KV max. |
| Special Features | 400 MCM (STR), 1/2″ Mounting Holes, 1 3/4″ Hole Spacing |
| Slang Terms | — |
| Categories | Solderless Connectors – Large Terminals & Connectors |
| Classification | Comp & Mech Lugs and Butt Splices |
| UNSPSC | 39121449 – Wire or cable compression splice |
| UPC / EAN / GTIN | 662381031075 / 6623810310752 / 00662381031075 |
| Weight per Unit | 0.44 lbs each |
| Minimum Order Quantity | 1 |
| Unit Price | $50.93 (Each) |
| Carton Price | $50.93 (Each) |
| Standard Packaging Price | $305.60 (Per 6) |
| Stock Availability | Nacogdoches: 0, All Stores: 81 |
| Voltage Rating | 600 V |
| Material | Aluminum |
| Color | Green |
| Finish | Tin Plated Bronze |
| Dimensions (L x W x OD x ID) | 6.42 x 1.60 x 1.19 x 0.759 (inches) |
| Number of Holes | 2 |
| Cable Size | 400 MCM (STR) |
| Warranty | 1 YEAR |
| Stud Size | 1/2 inch |
| Brand | NSi |
| Mounting | 1/2″ Mounting Holes |
| Environmental Conditions | 90°C |
| Application | Terminate, Splice, Tap Power Connectors |
| Standard | UL486A/B |
| Type | Standard Barrel – Two Hole |
