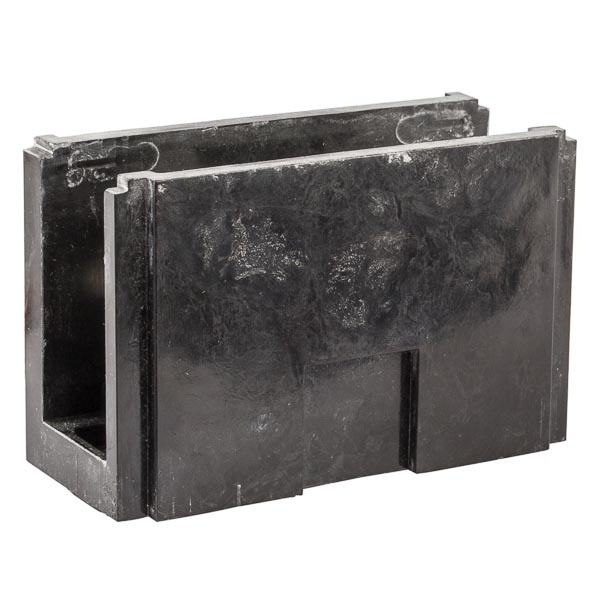

ASK1H4 – (1)-2/0 to (4)-#4 Power Dist Block
$
(per )
(Each)
$25.12
(Each)
$
(per 1)
Availability:
In Stock Locally
| Specification | AL-R2-M4 | AS-K1-H4 |
|---|---|---|
| Catalog Number | ALR2M4 | ASK1H4 |
| Manufacturer’s Part Number | AL-R2-M4 | AS-K1-H4 |
| Amperage Rating | 760 A | 175 A |
| Voltage Rating | 600 V | 600 V |
| Primary Openings | 2 | 1 |
| Secondary Openings | 4 | 4 |
| Wire Size (Primary) | #6 AWG – 500 MCM | #14 – 2/0 AWG |
| Wire Size (Secondary) | #6 – 4/0 AWG | #14 – 2/0 AWG |
| Material (Conductor/Housing) | Aluminum/Copper / Glass Filled Polyester | Aluminum/Copper / Glass Filled Polyester |
| Cover Type | Clear Acrylic | Clear Acrylic |
| Dimensions (L x W x H) | 5.5 in x 2.9 in x 3.25 in | 2.9 in x 1.04 in x 2.34 in |
| Weight | 1.48 lb | 0.2 lb |
| Mounting | — | 2 Mounting Holes |
| Operating Temp. Max | +90 °C | +90 °C |
| Standards / Certifications | UL, CSA, RU | UL1059 Recognized |
| Country of Origin | USA | USA |
| Unit Price (Each) | $77.44 | $25.12 |
| Carton Price (3 Units) | $232.32 | $75.36 |
| Minimum Order Qty | 1 | 1 |
| Stock (All Stores) | 151 | 1,271 |
