(Each)
$27.26
(Each)
(per 5)
(per 25)
In Stock Locally
$27.26
| Quick Specs | |
|---|---|
| Catalog Number | BR250 |
| Vendor Code | ETN |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | BR250 |

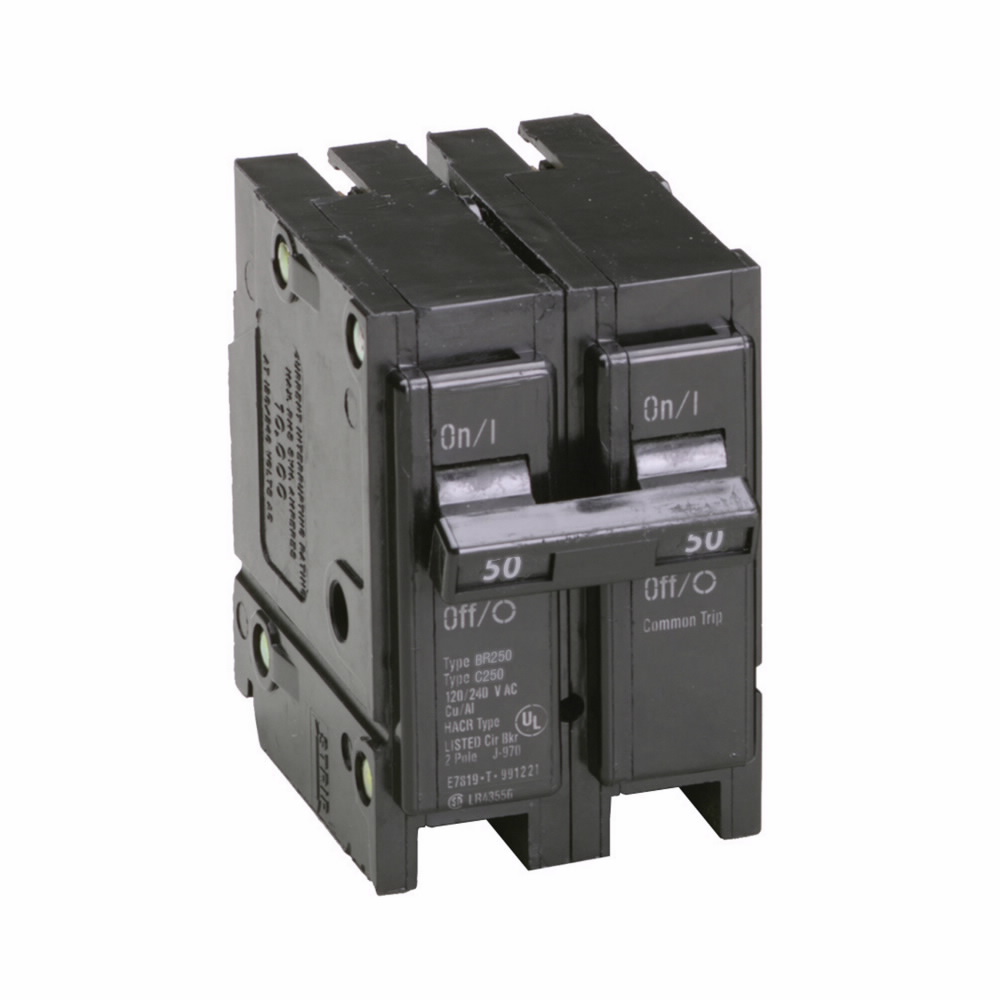

| Description | Type BR BRKR 50A/2 Pole 120/240V 10K Standard Trip Circuit Breaker, 50 A, Common Tripping Mechanism, Line and Load Lug Terminal, Plug-On, 120/240 V Ac, 3 In Overall Height, 3 In Overall Length, 2 In Overall Width |
| Slang Terms | |
| Categories | Standard Trip Plug – 2 Pole Standard Trip Plug-In |
| Classification | Loadcenter Plug In Breakers and Accessories |
| UNSPSC | 39121601 – Circuit breakers |
| UPC/GTIN | 786676363051 / 00786676363051 |
| Weight per unit | 0.5 (lbs/each) |
| Price & Packaging | |
| Minimum Order Quantity | 1 |
| Unit | $27.26 (Each) |
| Carton | $136.30 (Per 5) |
| Standard Packaging | $681.50 (Per 25) |
| Resources | |
| Images | BR250 – Small Image BR250 – Large Image (multiple) |
| Attachments | BR250 – Specification Sheet |
| Brochures | BR250 – Brochure |
| Other Links | BR250 – Other (multiple) |
| Features | |
| Current Rating | 50 A |
| Voltage Rating | 120/240 V ac |
| interrupt rating | 10 kAIC |
| Poles | 2 |
| Dimensions and Weight | |
| Overall Length | 3 in |
| Descriptions | |
| Product Type | Standard Trip Circuit Breaker |
| Short Description | 2P Standard Trip Circuit Breaker, 50 A, 120/240 VAC w/Trip Flag |
| Long Description | Standard Trip Circuit Breaker, 50 A, Common Tripping Mechanism, Line and Load Lug Terminal, Plug-On, 120/240 V ac, 3 in Overall Height, 3 in Overall Length, 2 in Overall Width |
| Features | A branch feeder type arc fault circuit interrupter is a device intended to mitigate high current arcing faults in the complete circuit, including connected cords. High current arcing faults can occur from line to neutral or line to ground. These arcing faults are in parallel with the load and produce the most energy of all arcing faults. The branch feeder type AFCI is required in the 1999 and 2002 National Electrical Code. The Combination Type AFCI is required in the 2005, 2008, and 2011 National Electrical |
| extra long description | ETN BR250 Type BR Breaker 50A/2 Pol |
| Description | TYPE BR BRKR 50A/2 POLE 120/240V 10K |
| Additional Information | |
| Tripping Mechanism | Common |
| Terminal Connection Type | Line and Load Lug |
| Mounting Type | Plug-On |
| circuit breaker type | Standard Trip Circuit Breaker |
| Overall Width | 2 in |
| for use with | Type BR Loadcenters |
| Standards Met | UL Listed 489; Federal Specifications Classification W-C375; IGCC 4813 |
| Overall Height | 3 in |
| dimensions | 3.0000 IN X 2.0000 IN X 3.0000 IN |
| Trip Type | Common breaker trip |
| Manufacturer Information | |
| Brand | Eaton Corp Viton(R) |
| Manufacturers Part Number | BR250 |
| GTIN | 00786676363051 |
| UPC | 786676363051 |
| Taxonomies, Classifications, and Categories | |
| Category Description | Loadcenter Plug In Breakers and Accessories |
| Type | Thermal magnetic circuit breakers |
| Packaging | |
| Weight per each | 0.5 |
| Carton | 5 |
| Package | 25 |
| Uses, Certifications, and Standards | |
| Application | Datacenters – IT Space: CI and Hyper ConvergedOtherGeneration – Renewable Energy – Alternative EnergyMarine Vessels and Equipment – Marine Vessels and Equipment – OtherGeneration – Conventional Energy – Conventional Energy |
| standard | UL 489, Federal Specifications Classification W-C375 |
