(Each)
$481.07
(Each)
(per 1)
In Stock Locally
$481.07
| Catalog Number | BRP20B200 |
| Vendor Code | ETN |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | BRP20B200 |

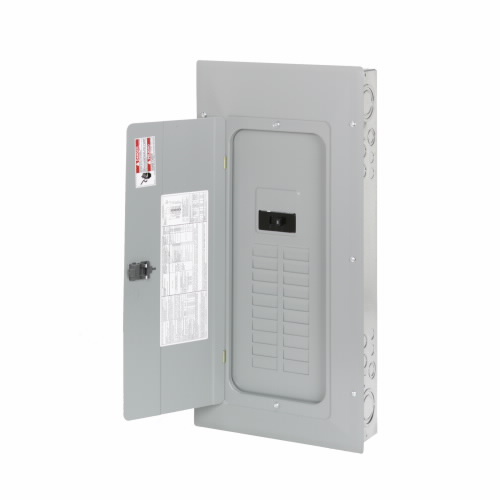

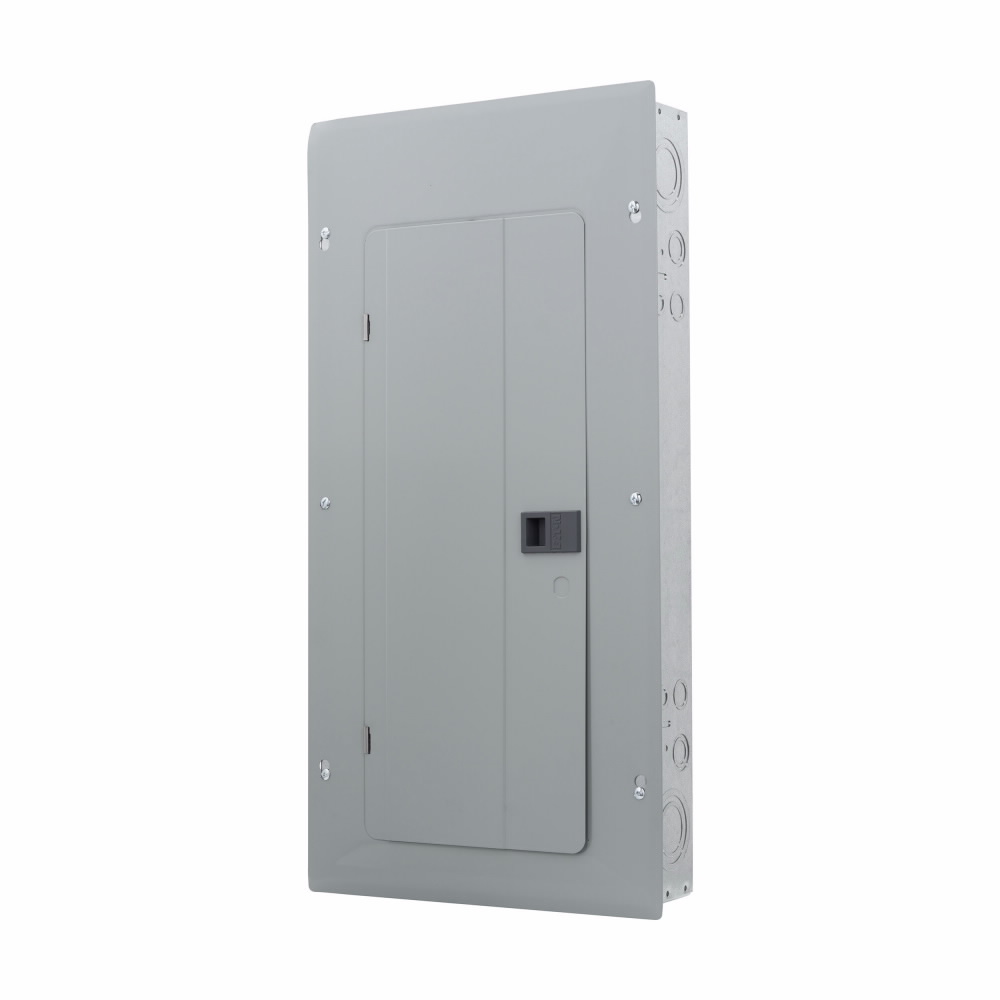

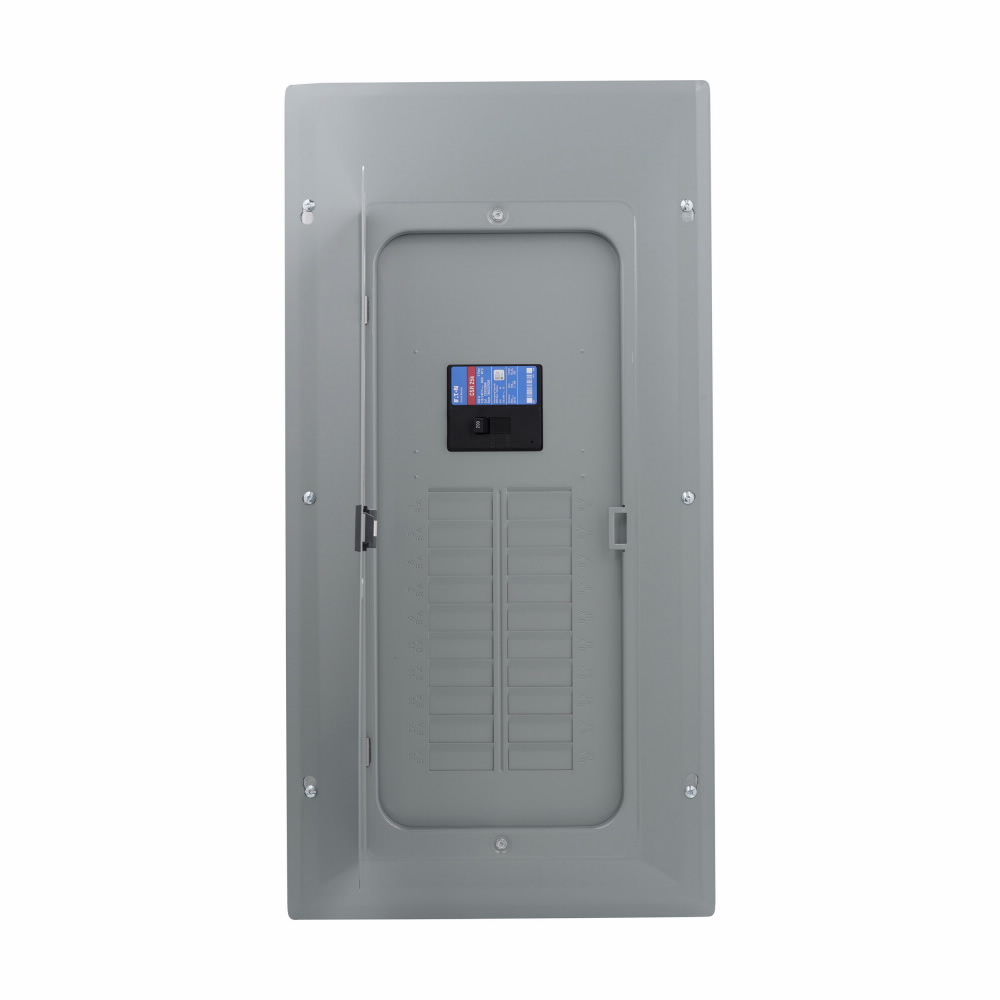

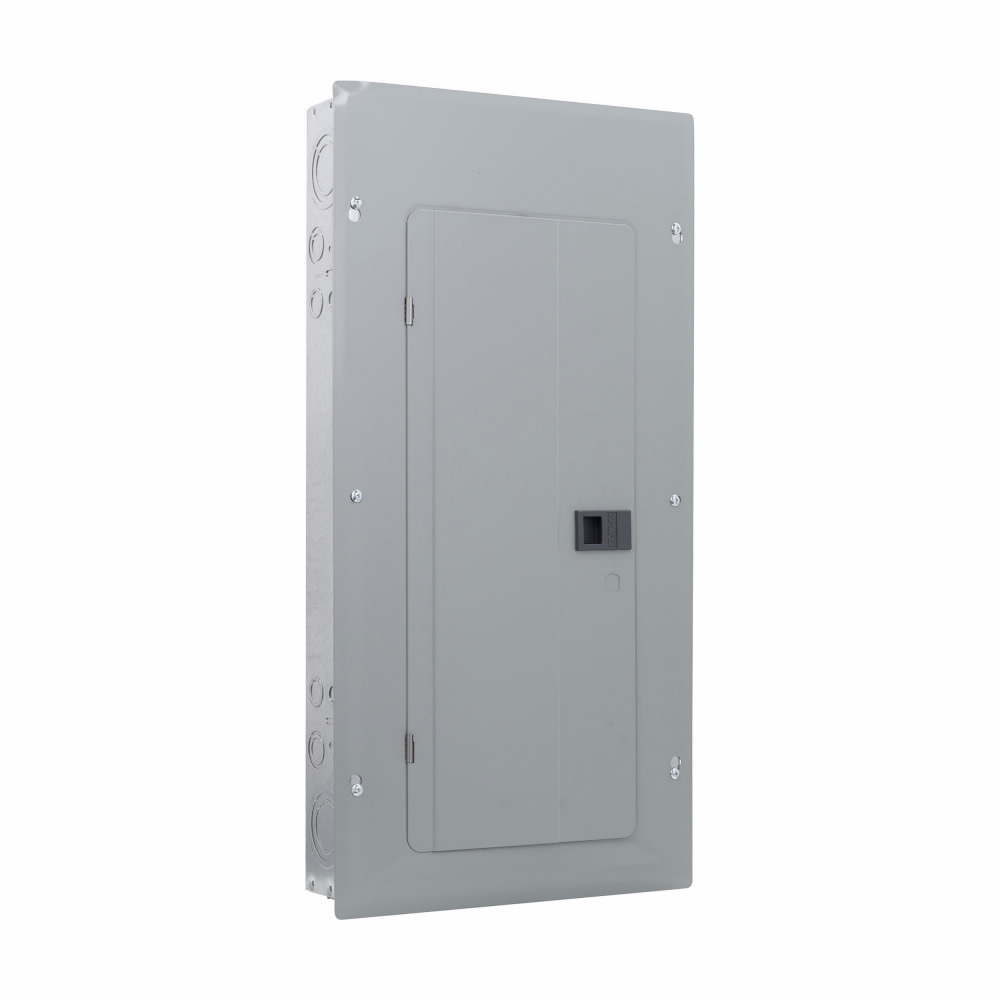

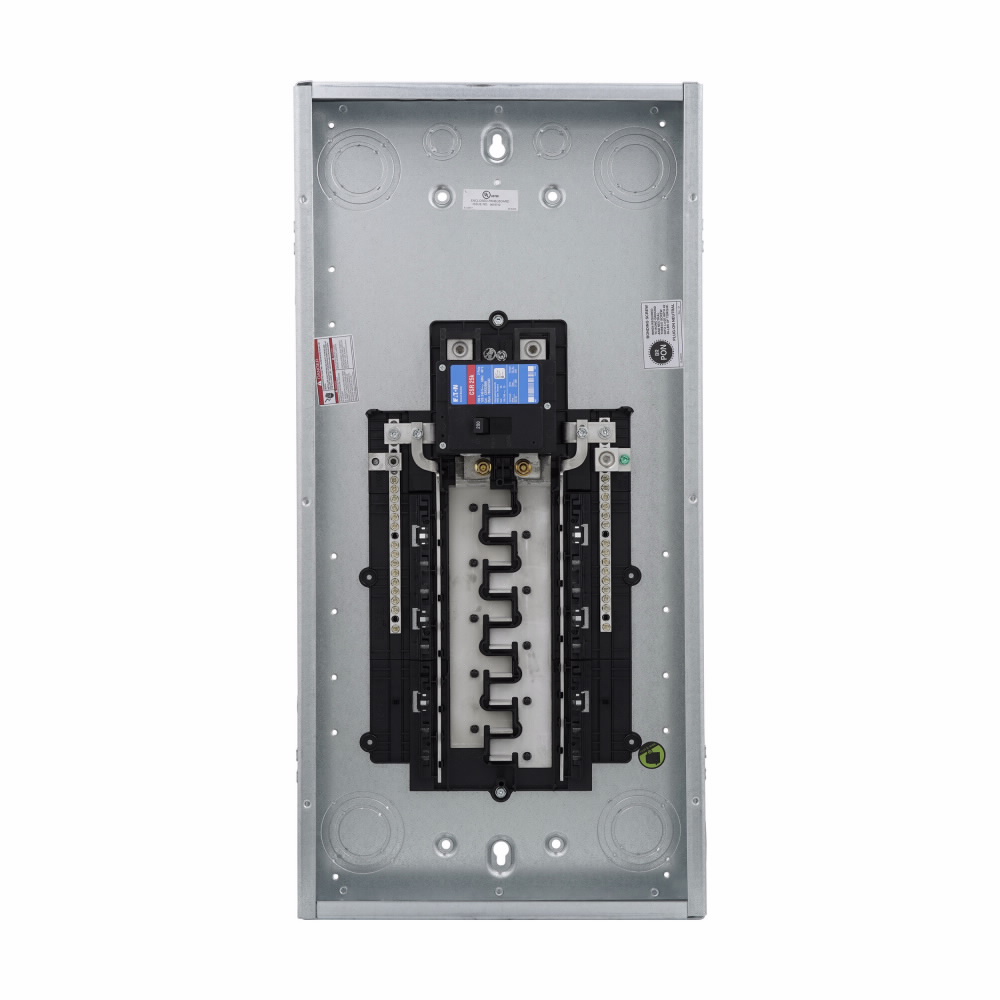

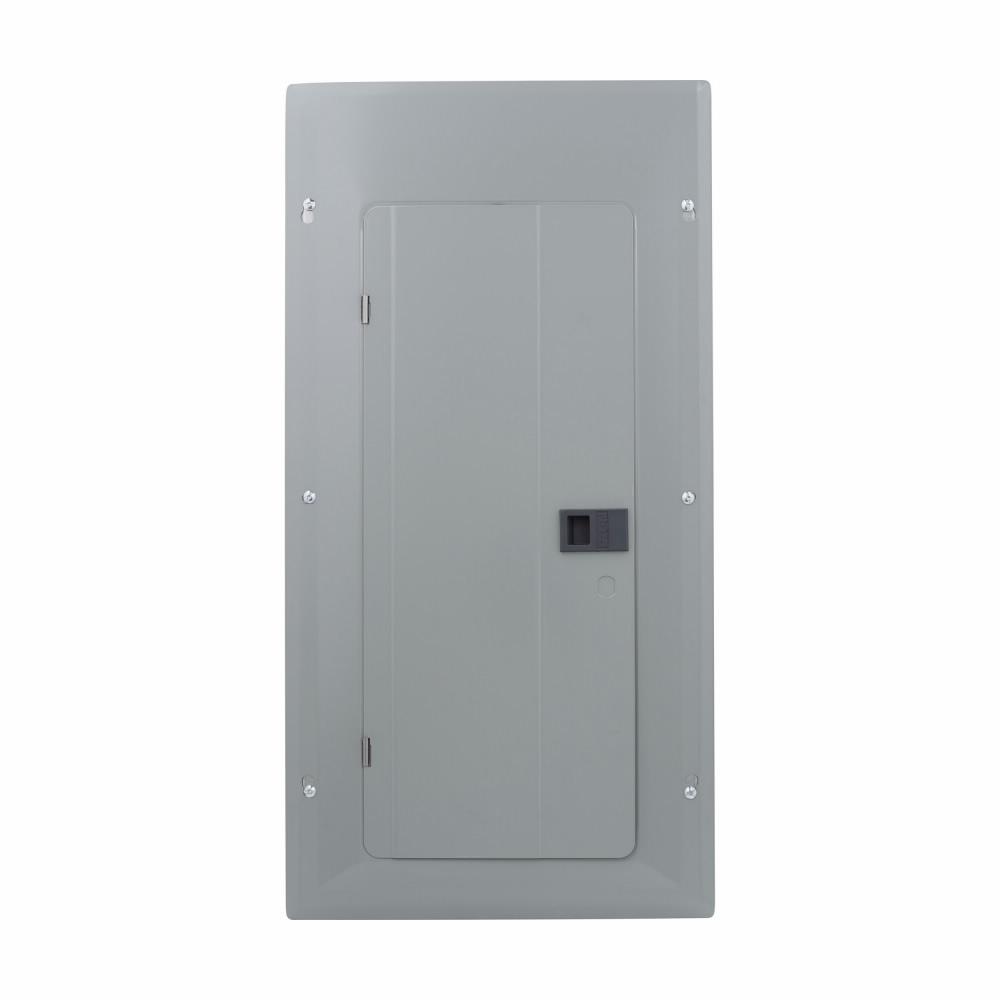

| Description | BR Pon Loadcntr 200A Main BRKR 20 Space |
| Long Description | Plug-on neutral main circuit breaker loadcenter, 200A, X5, Aluminum, Cover included, NEMA 1, Metallic, 22 kAIC, CSR2200, 40 circuits, Single pole, 20 spaces, Two hots, a neutral and a ground, Single-phase, #6-1/0 AWG Cu/Al, 25 Kilo Ampere, 25 kAIC, Gray, Combination |
| Extra Long Description | ETN BRP20B200 BR PON LC, 200A, MCB |
| Product Type | BR Pon LC, 200A, MCB, 20 Space |
| Phase | 1 |
| Voltage Rating | 120/240 V |
| Amperage Rating | 200 A |
| Interrupt Rating | 22 kAIC |
| Cover Type | Cover included |
| Wattage | Single-pole |
| Number of Spaces | 20 |
| Number of Circuits | 40 |
| Enclosure Type | NEMA 1 |
| Mounting Type | Combination Mount |
| Width | 14.31 in |
| Depth | 29.12 in |
| Height | 3.88 in |
| Size | X5 |
| Weight per Unit | 29.4 lbs |
| Carton Quantity | 1 |
| Applications | Residential Buildings & Facilities, Electrical Assemblies, Panels & EOEMs |
| Standards | UL 50, UL 67 |
| Price | $481.07 (Each) |
| GTIN | 00786689054977 |
| UPC | 786689054977 |
