(Each)
$237.70
(Each)
(per 1)
In Stock Locally
$237.70
| Catalog Number | BRP20L125 |
| Vendor Code | ETN |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | BRP20L125 |

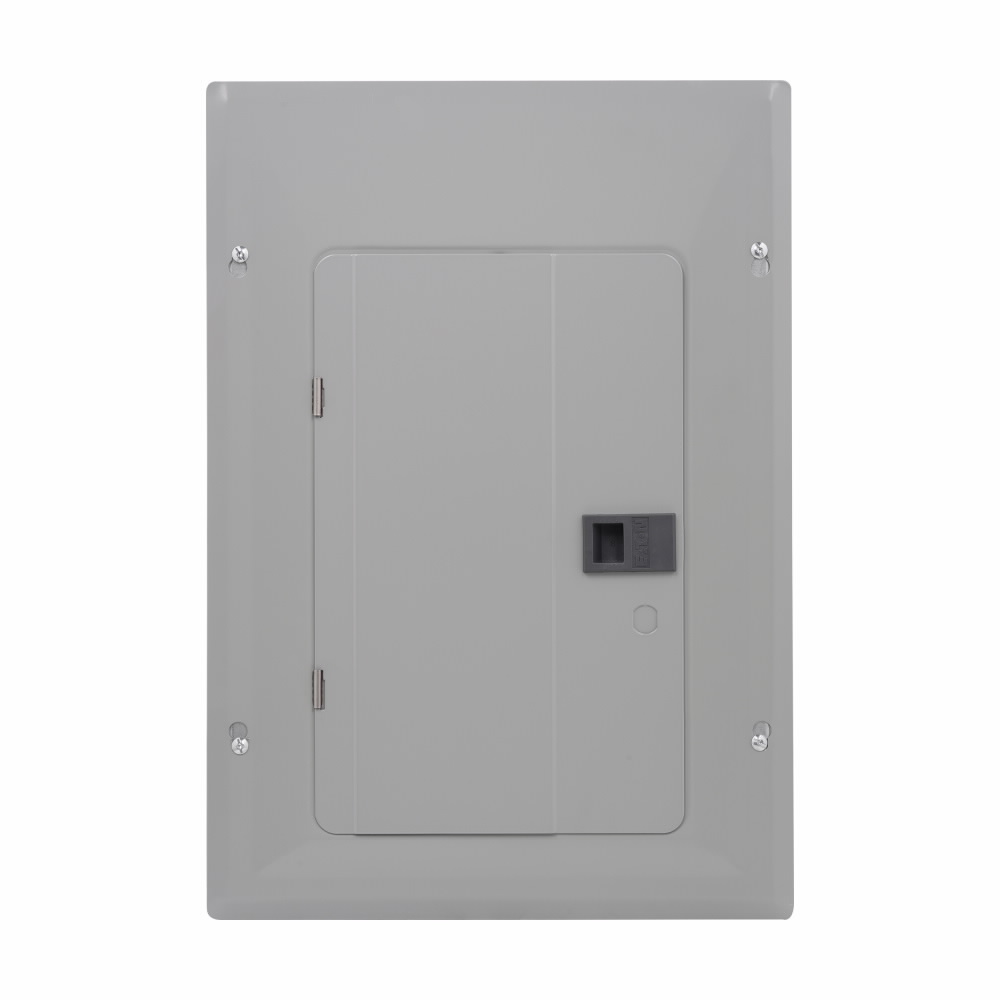

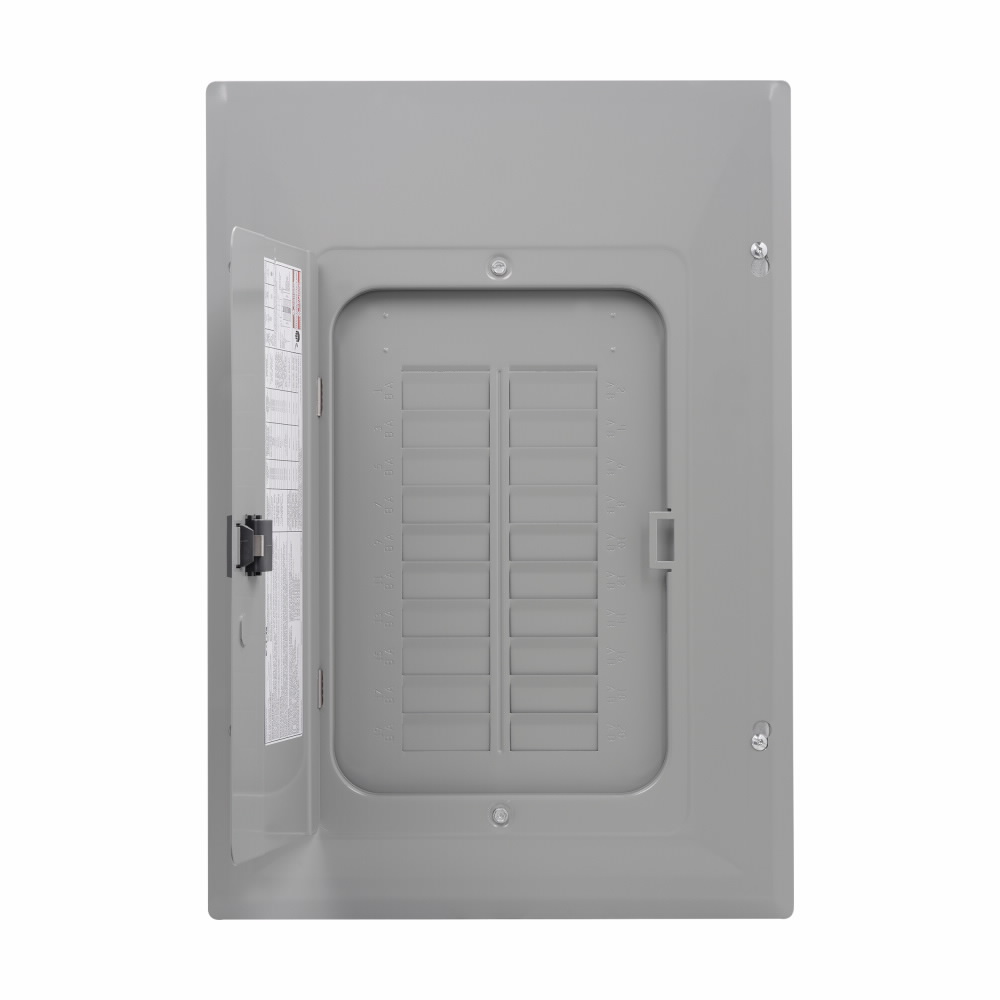

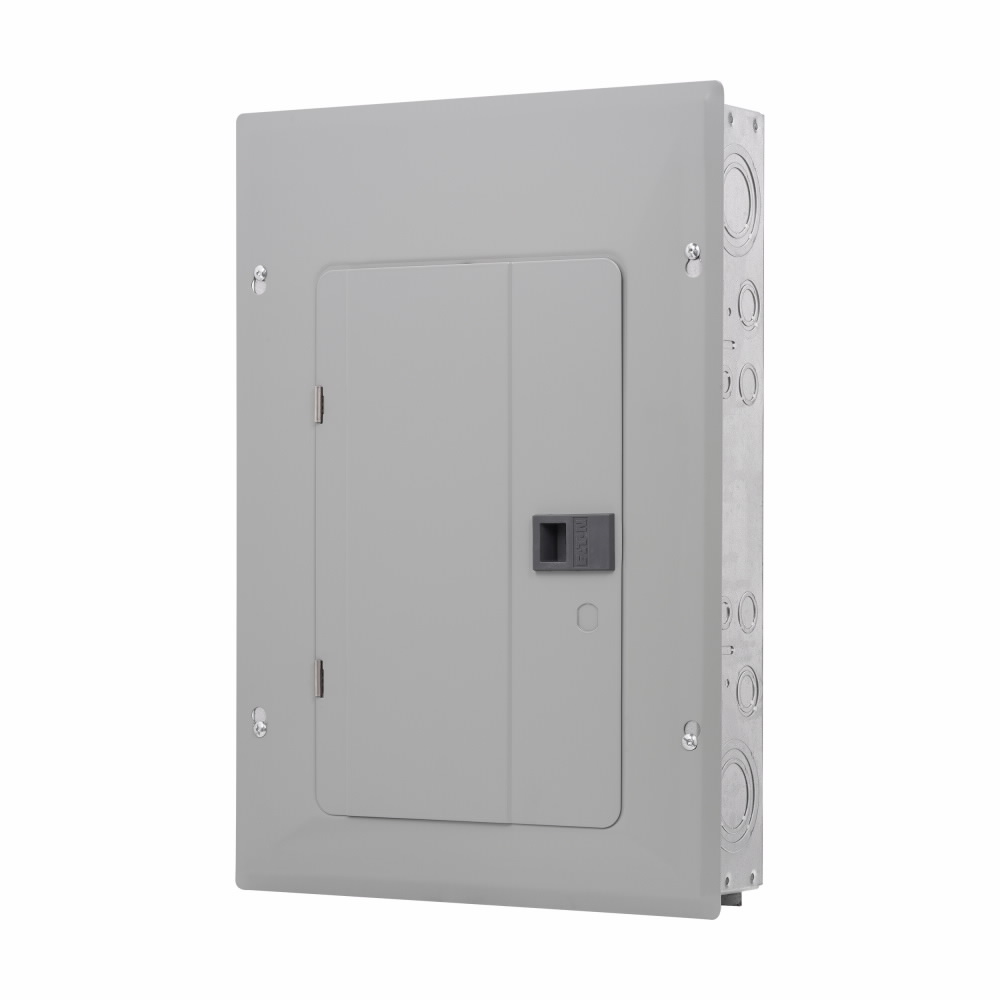

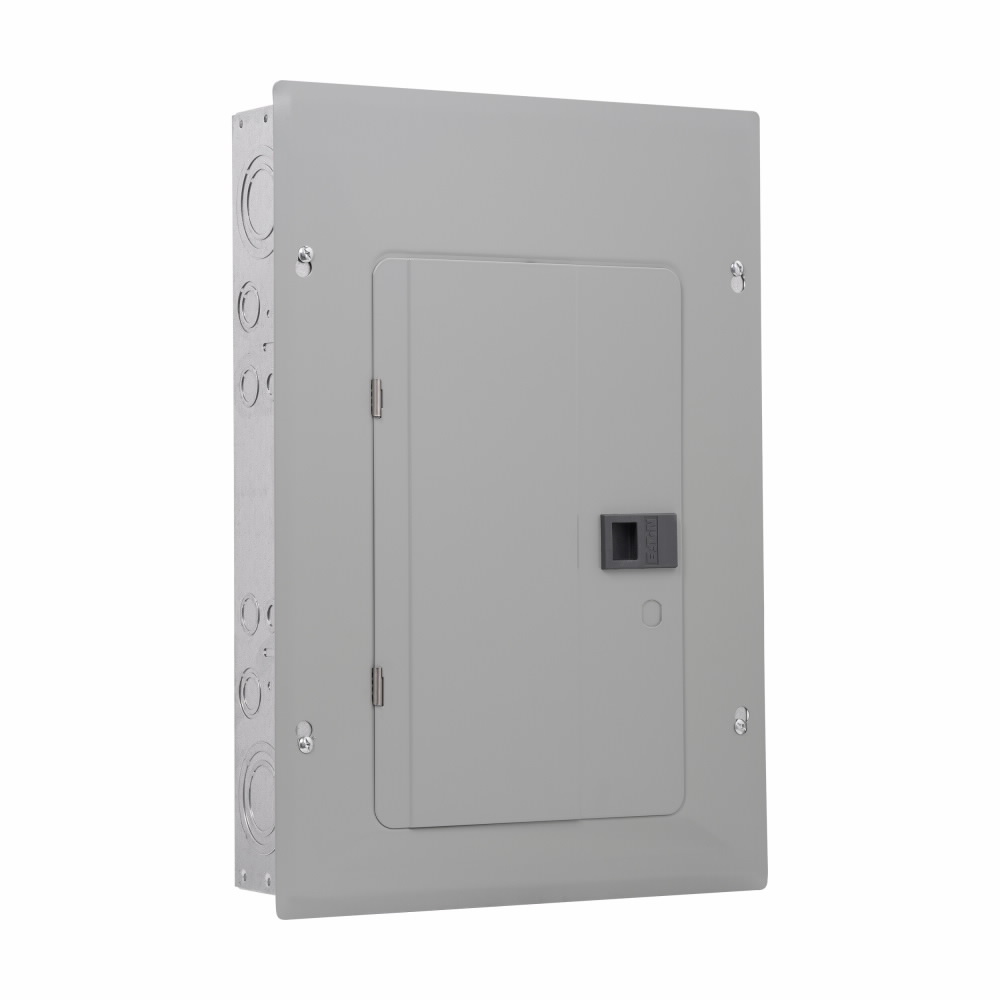

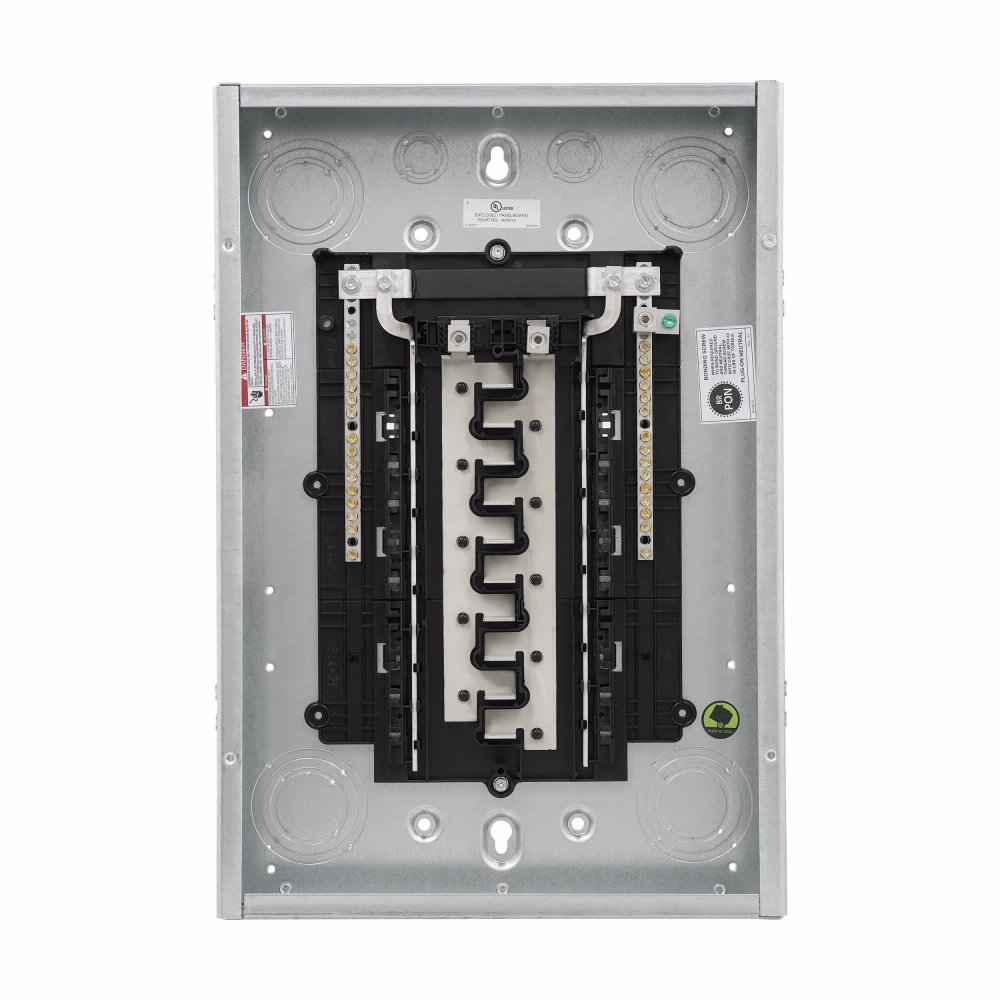

| Description | BR Pon Loadcntr 125A Mlo 20 Space |
| Long Description | Eaton BR main lug loadcenter, Main lug only, 125 A, X2, Aluminum, NEMA 1, Metallic, 10kAIC, BR2125, NEMA1, 40 Circuits, Twenty pole, 20 Spaces, Two hots, a neutral, and a ground, Single-phase, Type BR 1-inch breakers, 120/240V, #6-2/0 AWG Cu/Al |
| Extra Long Description | ETN BRP20L125 Type BR 1-inch PON loadcenter |
| Product Type | Type BR 1-Inch PON Loadcenter |
| Phase | 1 |
| Voltage Rating | 120/240 V |
| Amperage Rating | 125 A |
| Interrupt Rating | 10 kAIC |
| Cover Type | Cover included |
| Wattage | Single-pole |
| Number of Spaces | 20 |
| Number of Circuits | 40 |
| Enclosure Type | NEMA 1 |
| Mounting | Flush or Surface (not explicitly listed, typically combination) |
| Width | 14.31 in |
| Depth | 21 in |
| Height | 3.88 in |
| Size | X2 |
| Weight per Unit | 20 lbs |
| Applications | Electrical Assemblies, Panels & EOEMs |
| Standards | UL 67, UL 50 |
| GTIN | 00786689053222 |
| UPC | 786689053222 |
| Price | $237.70 (Each) |
