(Each)
$290.74
(Each)
(per 1)
In Stock Locally
$290.74
| Field | Value |
|---|---|
| Catalog Number | BRP30L200G |
| Vendor Code | ETN |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | BRP30L200G |

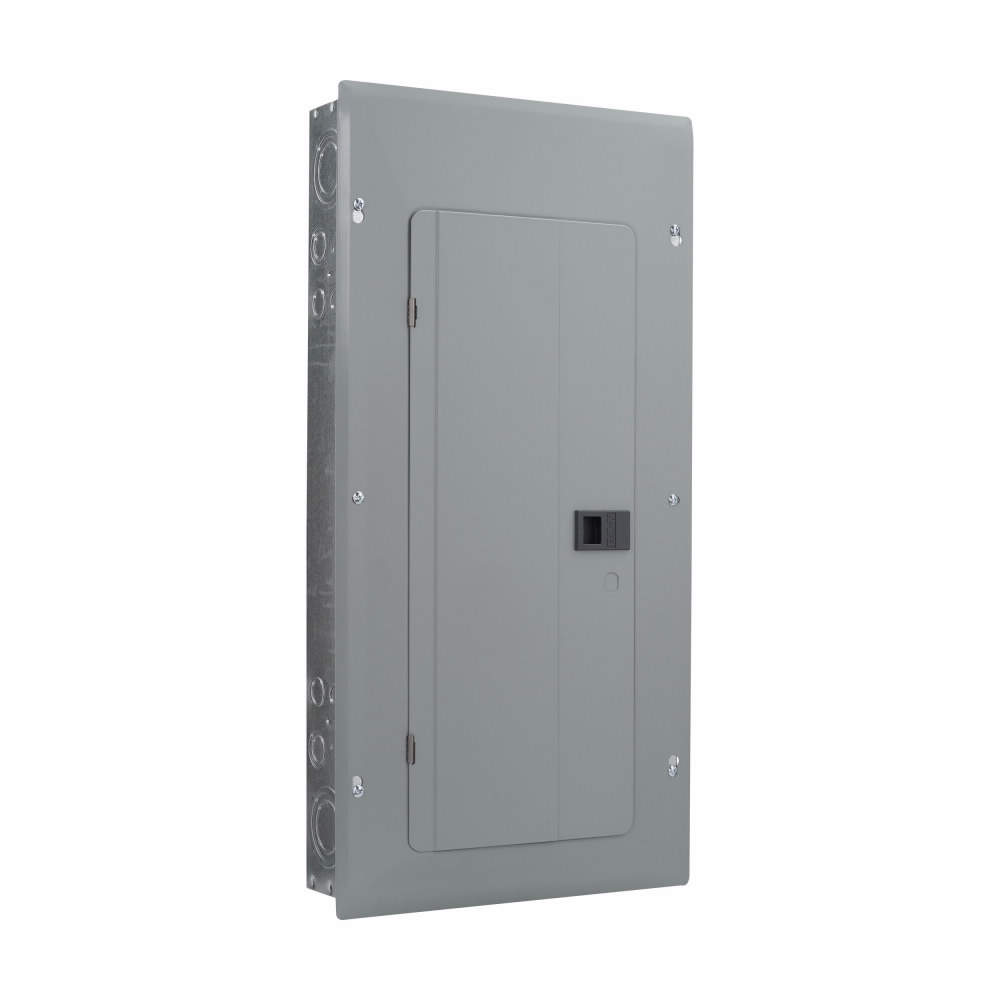

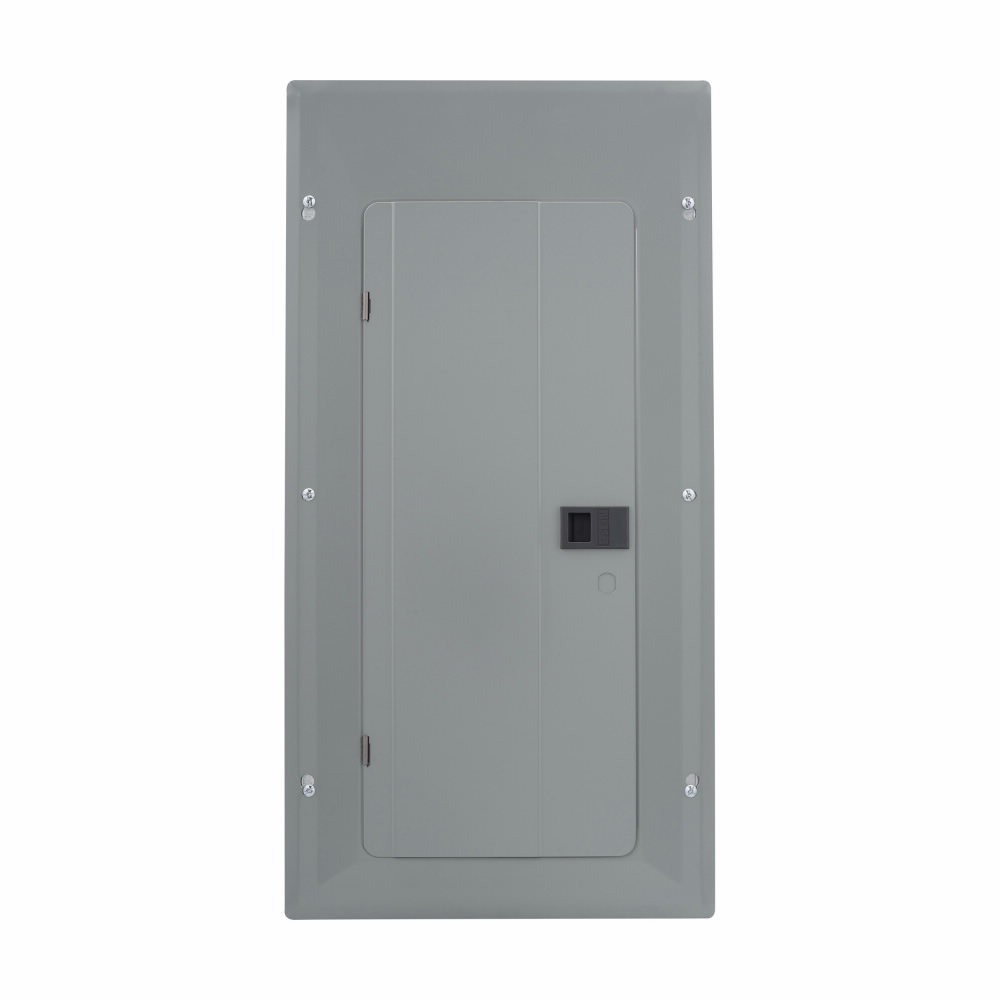

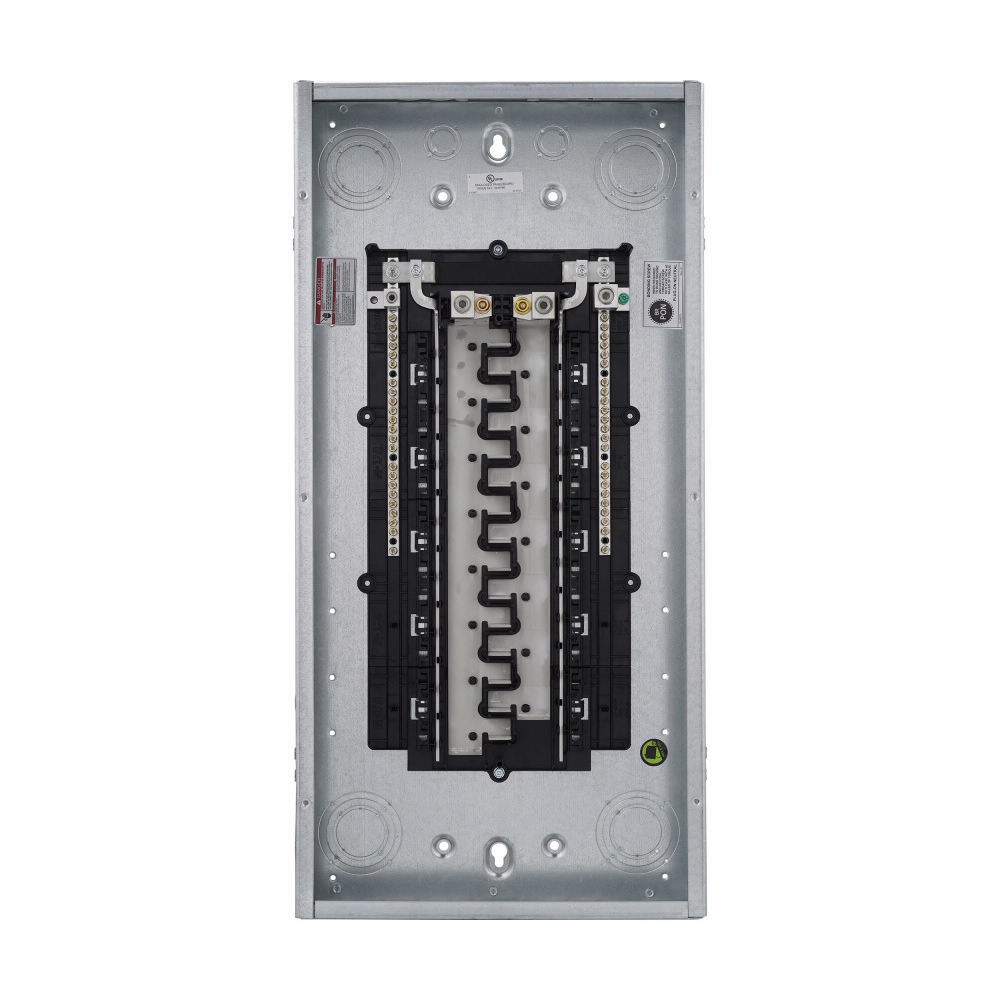

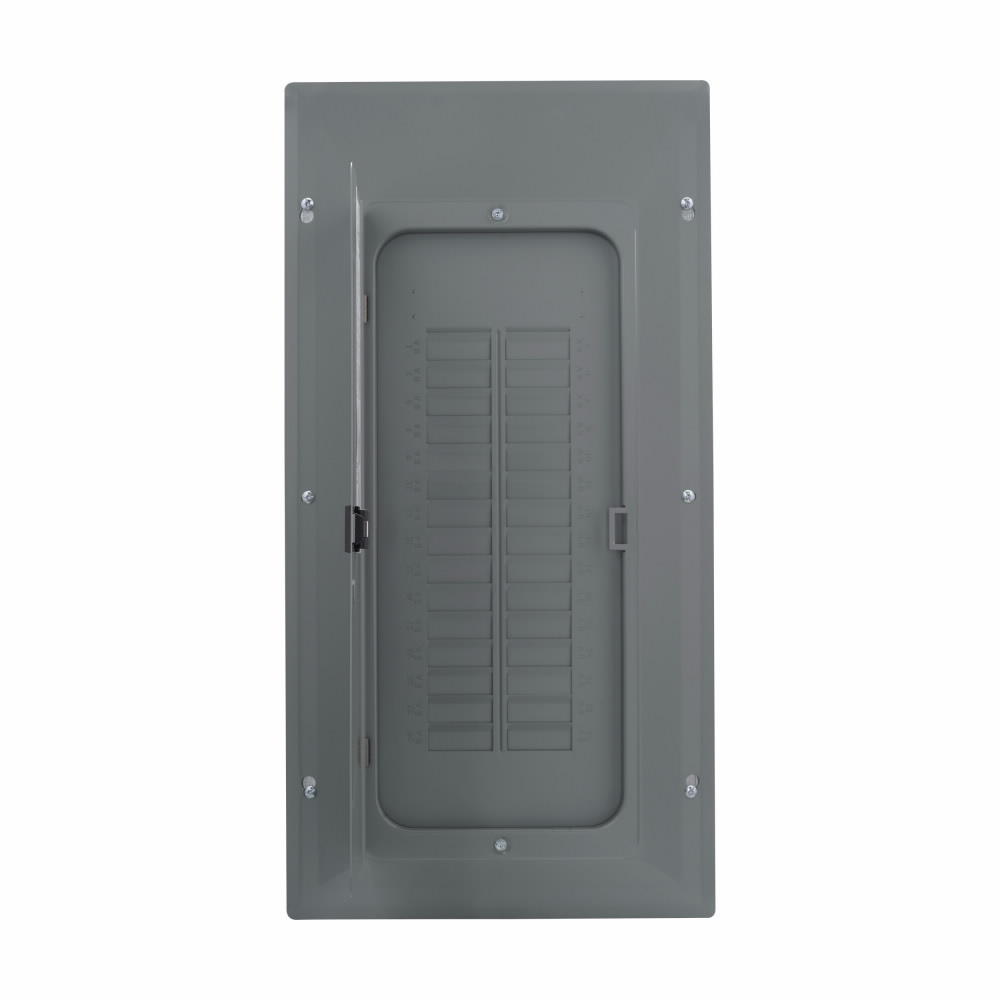

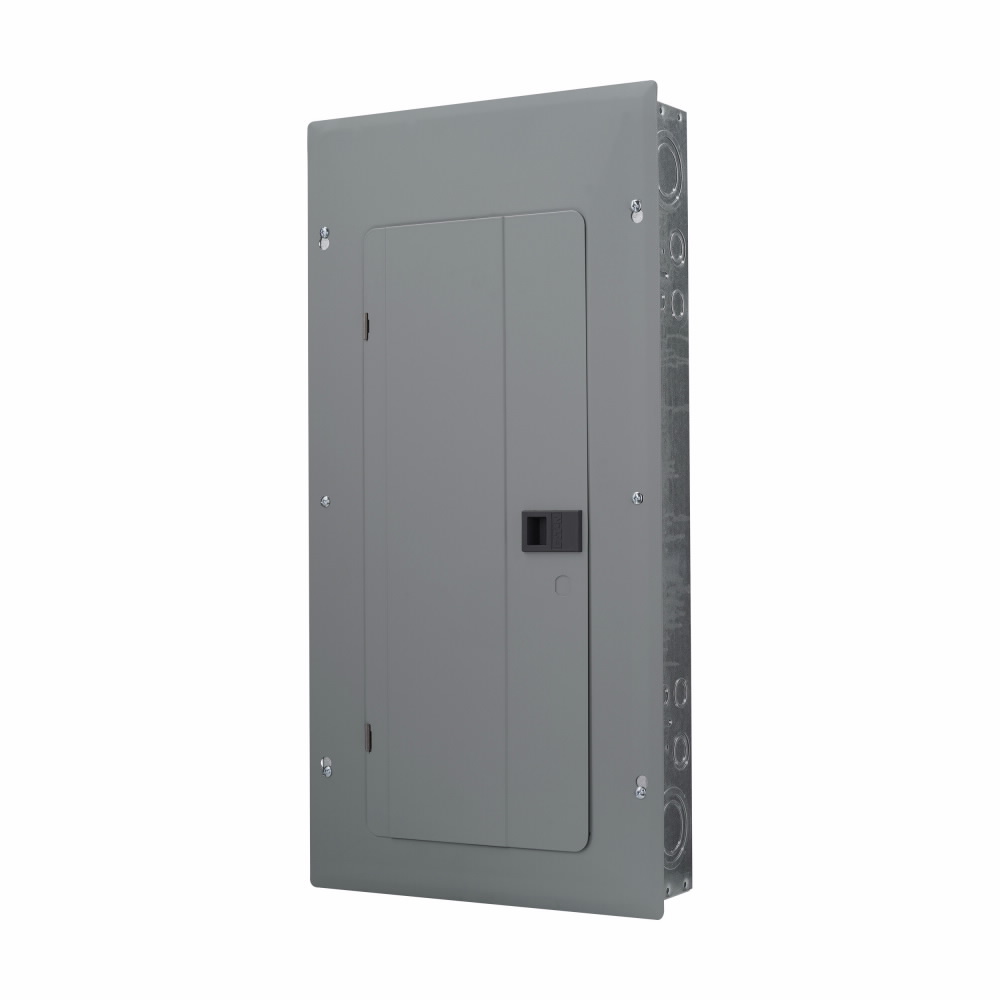

| Description | BR Pon Loadcntr 200A Mlo 30/60 Cir. Al Bus Nema 1 |
| Full Description | Eaton BR Main Lug Loadcenter, Ground Bar, Main Lug Only, 200 A, X5, Aluminum, Gray, Nema 1, Metallic, 10KAIC, CSR, Surface, Flush, Nema 1, 60 Circuits, Single-Pole, 30 Spaces, Two Hots, A Neutral, and A Ground, Single-Phase |
| Categories | Load Centers & Accessories – Single Phase Main Lug Load Cen |
| Classification | Loadcenters & Covers |
| UNSPSC | 39121101 – Load centers |
| UPC/GTIN | 786689044084 / 00786689044084 |
| Weight per unit | 28 (lbs/each) |
| Minimum Order Quantity | 1 |
| Unit Price | $290.74 (Each) |
| Stock Availability (Nacogdoches) | 0 |
| Stock Availability (All Stores) | 2,983 |
| Phase | 1 |
| Interrupt Rating | 10 |
| Voltage Rating | 120/240V |
| Amperage Rating | 200 |
| Cover Type | Cover included |
| Wattage | Single-pole |
| Width | 14.31 |
| Depth | 29.12 |
| Height | 3.88 |
| Size | X5 |
| Short Description | BR PON LOADCNTR 200A MLO 30/60 CIR. AL BUS NEMA 1 |
| Product Type | BR Pon LC 200A Mlo 30 Space Al Bus W/GRD |
| Extra Long Description | ETN BRP30L200G BR PON LC 200A MLO 3 |
| Long Description | Eaton BR main lug loadcenter, Ground bar, Main lug only, 200 A, X5, Aluminum, Gray, NEMA 1, Metallic, 10kAIC, CSR, Surface, flush, NEMA 1, 60 Circuits, Single-pole, 30 Spaces, Two hots, a neutral, and a ground, Single-phase |
| Special Features | Ground bar |
| Number of Spaces | 30 |
| Brand | Eaton |
| GTIN | 00786689044084 |
| UPC | 786689044084 |
| Category Description | LOADCENTERS & COVERS |
| Type | Main lug loadcenter |
| Packaging Weight (each) | 28 |
| Carton Quantity | 1 |
| Application | Elec Assemblies, Panels & EOEM – Electrical Assemblies, Panels and EOEMsResidential Bldgs & Facilities – Residential Bldgs & Facilities – Other |
| Mounting | Flush Mount;Surface Mount |
| Standard | UL 50, UL 67 |
