C25DND330A – Open N-R 3P 30A DP Cont SCR/PP W/QC Term 120VAC CO
$
(per )
(Each)
$126.80
(Each)
$
(per 1.19)
Availability:
In Stock Locally

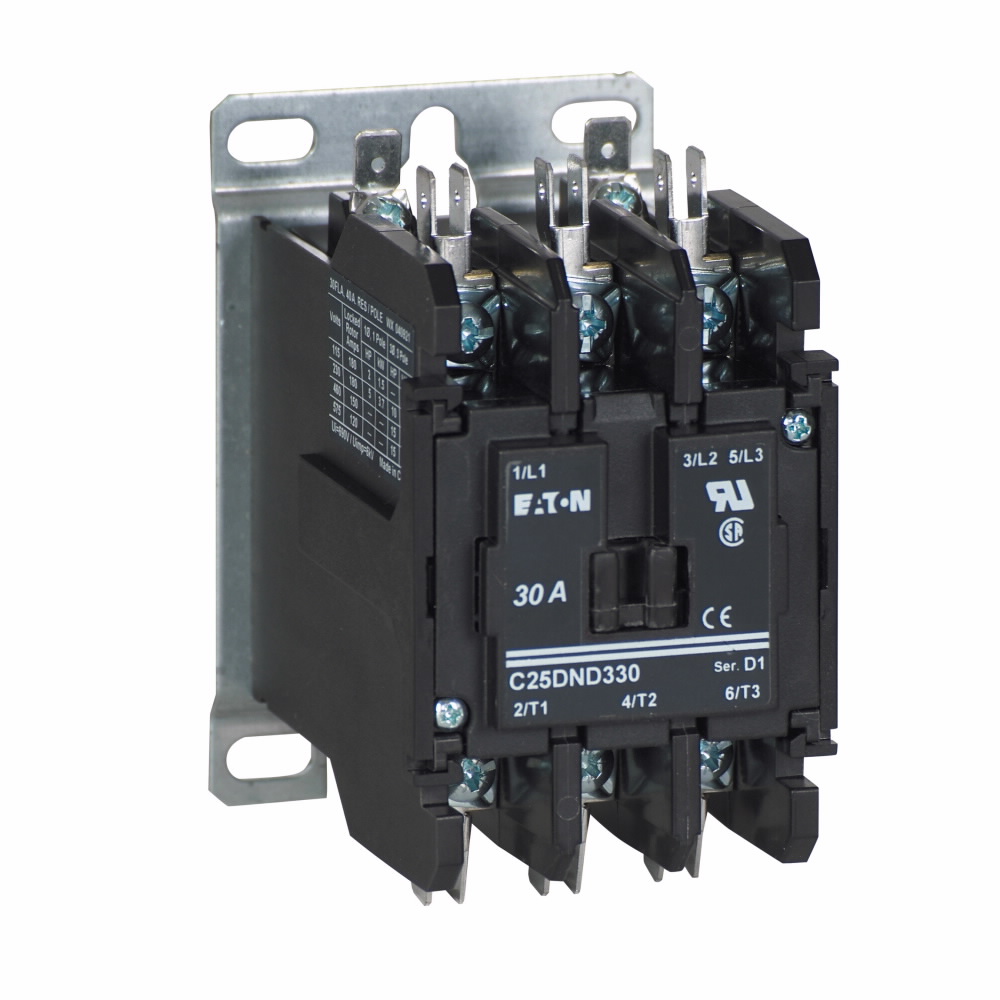

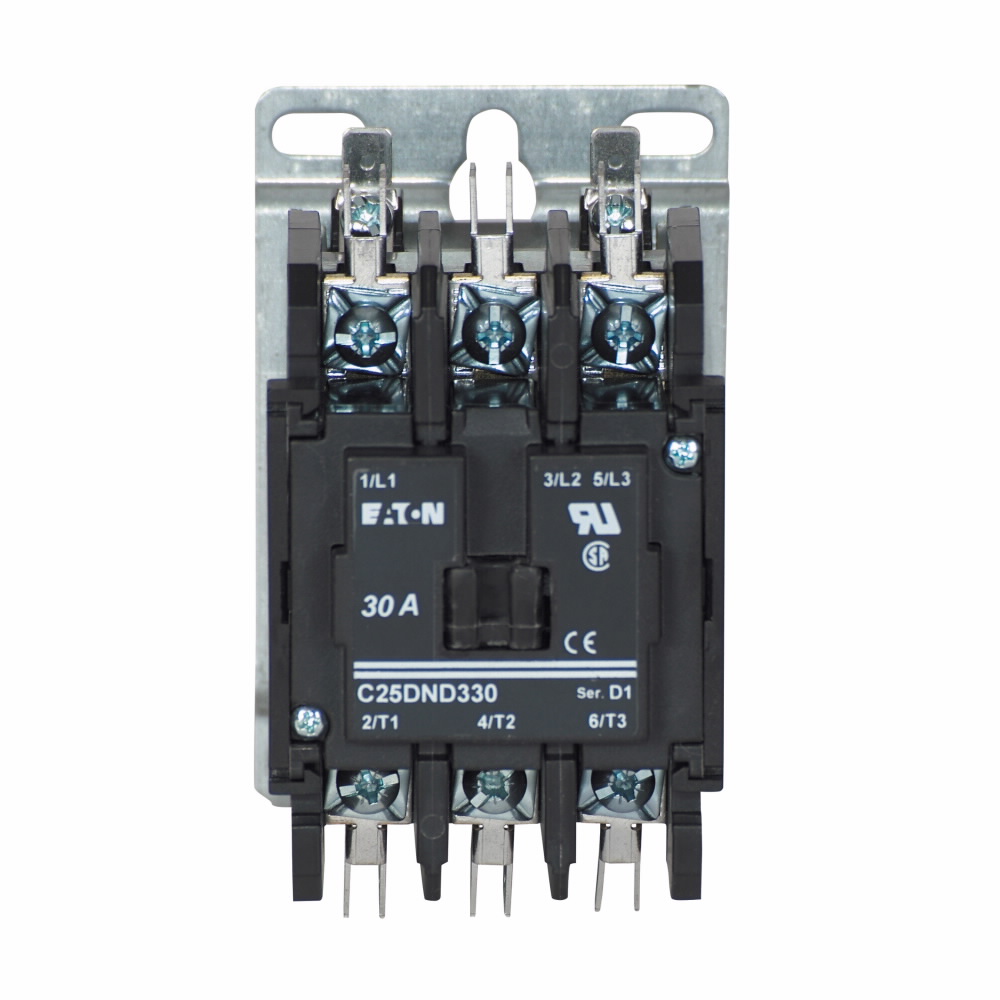

Eaton C25DND330A Definite Purpose Contactor
Quick Specs
| Catalog Number | C25DND330A |
| Vendor Code | CHC |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | C25DND330A |
| Description | Open N-R 3P 30A DP Cont SCR/PP W/QC Term 120VAC CO |
| Categories | Contactors – Definite Purpose Contactors |
| Classification | DP Contactors |
| UNSPSC | 39121529 – Contactors |
| UPC/GTIN | 782116300587 / 00782116300587 |
| Weight per unit | 1.19 (lbs/each) |
Price & Packaging
| Minimum Order Quantity | 1 |
| Unit Price | $126.80 (Each) |
| Standard Packaging | $2,536.00 (Per 20) |
| Carton | 1 |
| Package | 20 |
Features
| Current Rating | 30 A |
| Number of Phases | 1; 3 |
| Coil Voltage | 110 to 120 V AC |
| Resistive Load | 40 A |
| Motor Power | 5 HP (Single Phase); 10 HP (Three Phase); 3.7 kW (Single Phase); 7.5 kW (Three Phase) |
| Frame Size | 15 to 50 A |
| Connection Type | Quick Connect Terminal |
| Mounting Type | DIN Rail Mount |
| Minimum Operating Temperature | -13 °F (-25 °C) |
| Maximum Operating Temperature | +158 °F (+70 °C) |
| Special Features | Quick coil changing ability; Shrouded/fingerproof terminals |
Dimensions and Weight
| Overall Length | 3.35 in (85 mm) |
| Width | 2.4 in |
| Height | 2.5 in |
| Depth | 3.35 in |
| Overall Height | 3.75 in (95 mm) |
| Overall Width | 2.40 in (61 mm) |
| Weight | 1.19 lb |
Descriptions
| Short Description | Definite Purpose Control – Contactor, 4P, 30 A, 110 to 120 VAC |
| Product Type | Definite Purpose Control – Contactor |
| Long Description | Definite Purpose Control – Contactor, 3 Poles, 30 A, 110 to 120 V AC, 40 A Resistive Load, Motor Power Ratings, DIN Rail Mount |
| Extra Long Description | ETN C25DND330A OP N-R 3P 30ADPCNT S |
Manufacturer Information
| Brand | EATON CUTLER-HAMMER |
| Manufacturer’s Part Number | C25DND330A |
| GTIN | 00782116300587 |
| UPC | 782116300587 |
Certifications and Standards
| Standards Met | UL Listed, CSA Certified, CE Certified, RoHS Compliant |
| Frequency Rating | 50 to 60 Hz |
| Application | Motor and Power Control Equipment |
