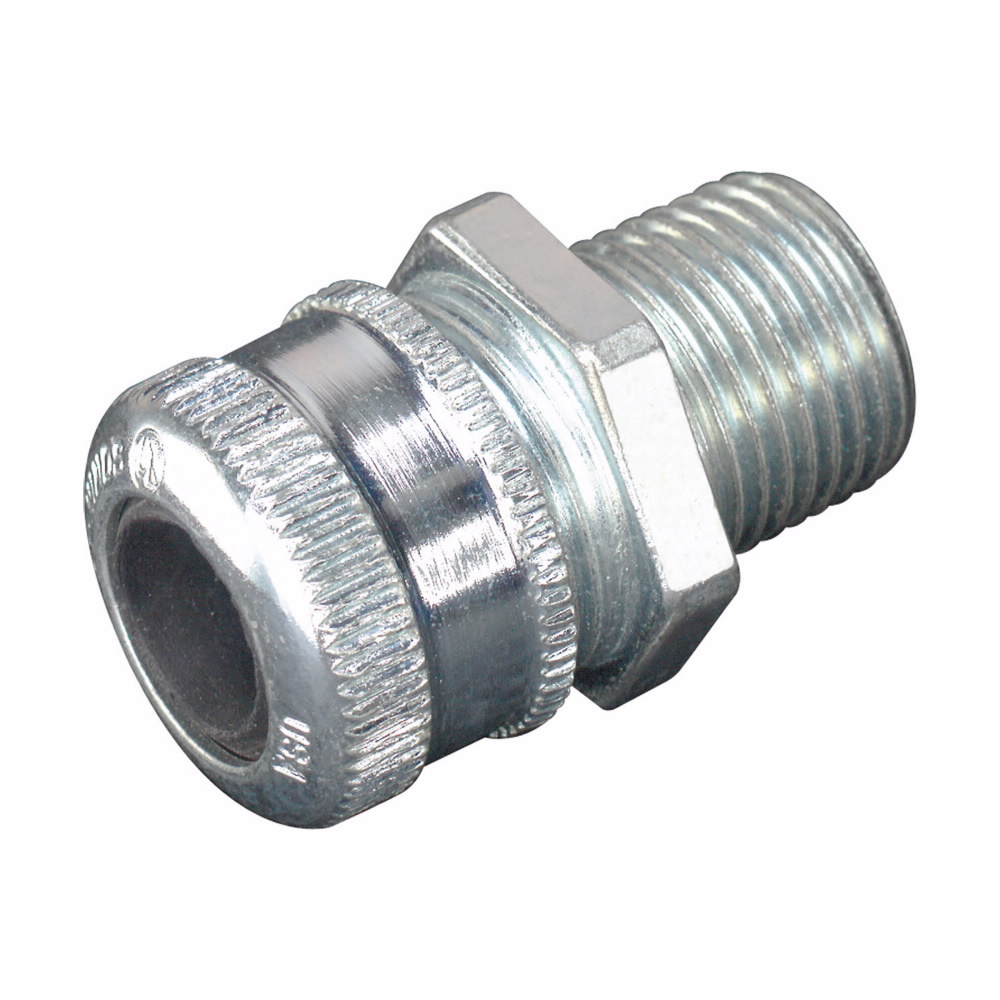

CGB193 – 1/2″ Dia Male Cord Grip (.250-.375)
$
(per )
(Each)
$18.83
(Each)
$
(per 1)
Availability:
In Stock Locally
| Category | Details |
|---|---|
| Catalog Number | CGB193 Vendor Code CRS |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | CGB193 |
| Description | 1/2″ Dia Male Cord Grip (.250-.375) Cord Gland, Steel with Zinc Electroplate and Chromate Finish Coat (Body, Gland Nut); Neoprene (Bushing) Material, CGB Model, 0.25 to 0.375 In Cable/Cord Size, 2.063 In Length, 1.23 In Diameter, Straight Male Connection, 1/2 In Thread Size, -25 °C to +40 °C Operating Temperature, 0.19 LB |
| Slang Terms | (none provided) |
| Categories | Condubx, Non-Metallic CBL, S. – Cable & Cord Grips |
| Classification | Cord Connectors & Cord Grips |
| UNSPSC | 39121311 – Electrical fittings |
| UPC/GTIN | 782274131009 / 00782274131009 |
| Weight per unit | 0.19 (lbs/each) |
| Price & Packaging | Minimum Order Quantity: 1 Unit: $18.83 (Each) Carton: $470.75 (Per 25) |
| Features | Material: Steel with Zinc Electroplate and Chromate Finish Coat (Body, Gland Nut); Neoprene (Bushing) Connection: Male NPT |
| Material, Color, and Finish | Finish: Zinc Electroplated with Chromate Coated |
| Dimensions and Weight | Length: 2.063 in Diameter: 1.23 in Size: 1/2 in |
| Descriptions | Product Type: Cord Gland Long Description: Cord Gland, Steel with Zinc Electroplate and Chromate Finish Coat (Body, Gland Nut); Neoprene (Bushing) Material, CGB Model, 0.25 to 0.375 in Cable/Cord Size, 2.063 in Length, 1.23 in Diameter, Straight Male Connection, 1/2 in Thread Size, -25 °C to +40 °C Operating Temperature, 0.19 lb Short Description: Cord Gland, 1/2″, Aluminium, .375-.500 DIA MALE Special Features: Rugged, Durable Construction Protects Cords and Cables from Damage and Compact Design; Weatherproof Seal on Outer Sheath of Cable |
| Additional Description | CRS-H CGB193 1/2 NPT MALE CORD/CAB |
| Additional Information | Cable/Cord Size: 0.25 to 0.375 in Standards Met: cULus Listed – UL File No. E23223; NEC501.10(B)(4) Package Quantity: 1 CT; 25 PK Enclosure Type: Class I Div 2; NEMA 3R Includes: Standard Neoprene Bushing For Use With: Flexible Cords (Type S, SO, STO, ST, SJ, SJT, SJTO, SVO), Tray Cable Types (TC, TC-ER, TC-ER-HLA, ITC, ITC-ER, ITC-HL, PLTC, PLTC-ER), Steel/Copper Wire Braided Cable, Steel Wire Armoured Connection Type: Straight Male Thread Size: 1/2 in Minimum Operating Temperature: -25 °C Maximum Operating Temperature: +40 °C Dimensions: 2.0200 IN X 1.2300 IN X 1.2300 IN |
| Manufacturer Information | Brand: Eaton Manufacturer’s Part Number: CGB193 Model: CGB GTIN: 00782274131009 UPC: 782274131009 |
| Taxonomies, Classifications, and Categories | Category Description: CORD CONNECTORS & CORD GRIPS Type: Cable gland |
| Packaging | Weight: 0.19 lb Weight per each: 0.19 Carton: 25 |
| Uses, Certifications, and Standards | Application: Hazardous Location; Wet Location Temperature Rating: -25 To 40 Deg C Enclosure: Class I Div 2 Standard: UL (CANADA AND US), CUL |
