(Each)
$363.46
(Each)
(per 1)
(per 25)
In Stock Locally
$363.46
| Field | Value |
|---|---|
| Catalog Number | CH2125 |
| Vendor Code | CHD |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | CH2125 |

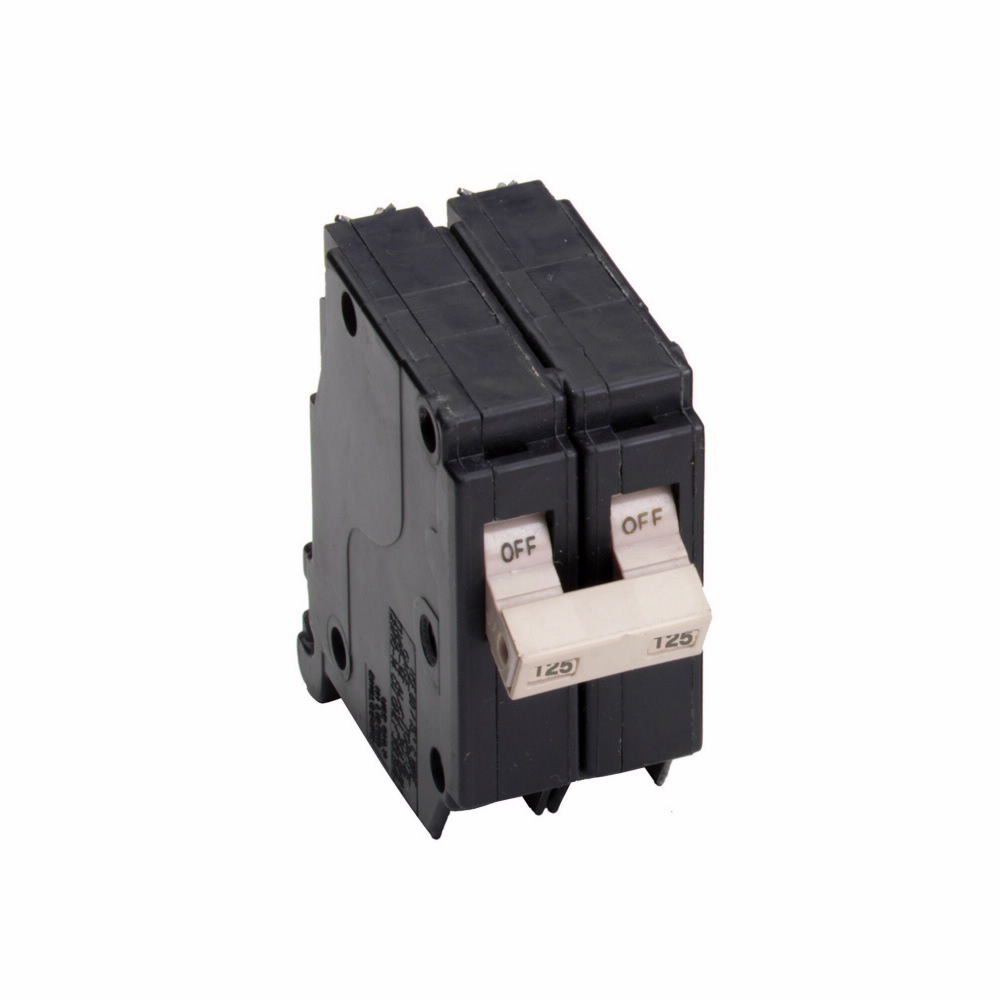

| Description | Type CH BRKR 125A/2 Pole 120/240V 10K |
| Standard Trip Circuit Breaker | 125 A, Common Tripping Mechanism, Plug-On, 120/240 V Ac, 0.75 In Overall Width, 0.58 LB |
| Categories | Standard Trip Plug – 2 Pole Standard Trip Plug-In |
| Classification | Loadcenter Plug In Breakers and Accessories |
| UNSPSC | 39121601 – Circuit breakers |
| UPC/GTIN | 782113298788 / 00782113298788 |
| Weight per unit | 0.58 (lbs/each) |
| Minimum Order Quantity | 1 |
| Unit Price | $363.46 (Each) |
| Standard Packaging | $9,086.50 (Per 25) |
| Current Rating | 125 A |
| Voltage Rating | 120/240 V ac |
| Interrupt Rating | 10 kAIC |
| Poles | 2 |
| Product Type | Standard Trip Circuit Breaker |
| Long Description | Standard Trip Circuit Breaker, 125 A, Common Tripping Mechanism, Plug-On, 120/240 V ac, 0.75 in Overall Width, 0.58 lb |
| Features | Quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip-free handle design. Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Multipole breakers have internal common trip. |
| Short Description | 2P Standard Trip Circuit Breaker, 125 A, Line and Load Lug Terminal, Thermal Magnetic |
| Extra Long Description | ETN CH2125 Type CH Breaker 125A/2 P |
| Tripping Mechanism | Common |
| Circuit Breaker Type | Standard Trip Circuit Breaker |
| Mounting Type | Plug-On |
| Overall Width | 0.75 in |
| For Use With | Type CH Loadcenters |
| Standards Met | UL 489 Listed; IGCC 4813 |
| Dimensions | 3.7500 IN X 2.5000 IN X 2.7500 IN |
| Trip Type | Common breaker trip |
| Brand | EATON CUTLER-HAMMER |
| GTIN | 00782113298788 |
| UPC | 782113298788 |
| Category Description | Loadcenter Plug In Breakers and Accessories |
| Type | Thermal magnetic circuit breakers |
| Weight | 0.58 lb |
| Weight per Each | 0.58 |
| Carton | 1 |
| Package | 25 |
| Application | Datacenters – IT Space: CI and Hyper Converged, Other, Generation – Renewable Energy – Alternative Energy, Generation – Conventional Energy – Conventional Energy, Marine Vessels and Equipment – Marine Vessels and Equipment – Other |
| Standard | UL 489 |
