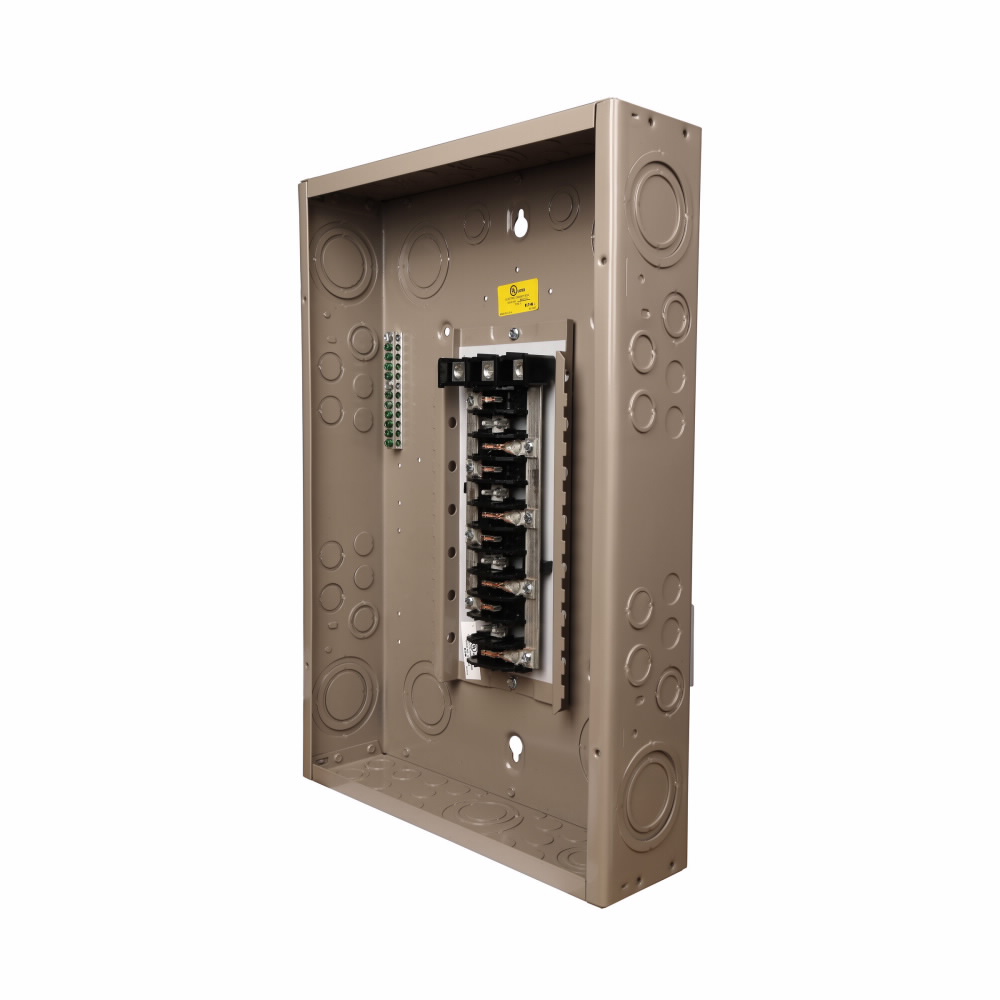

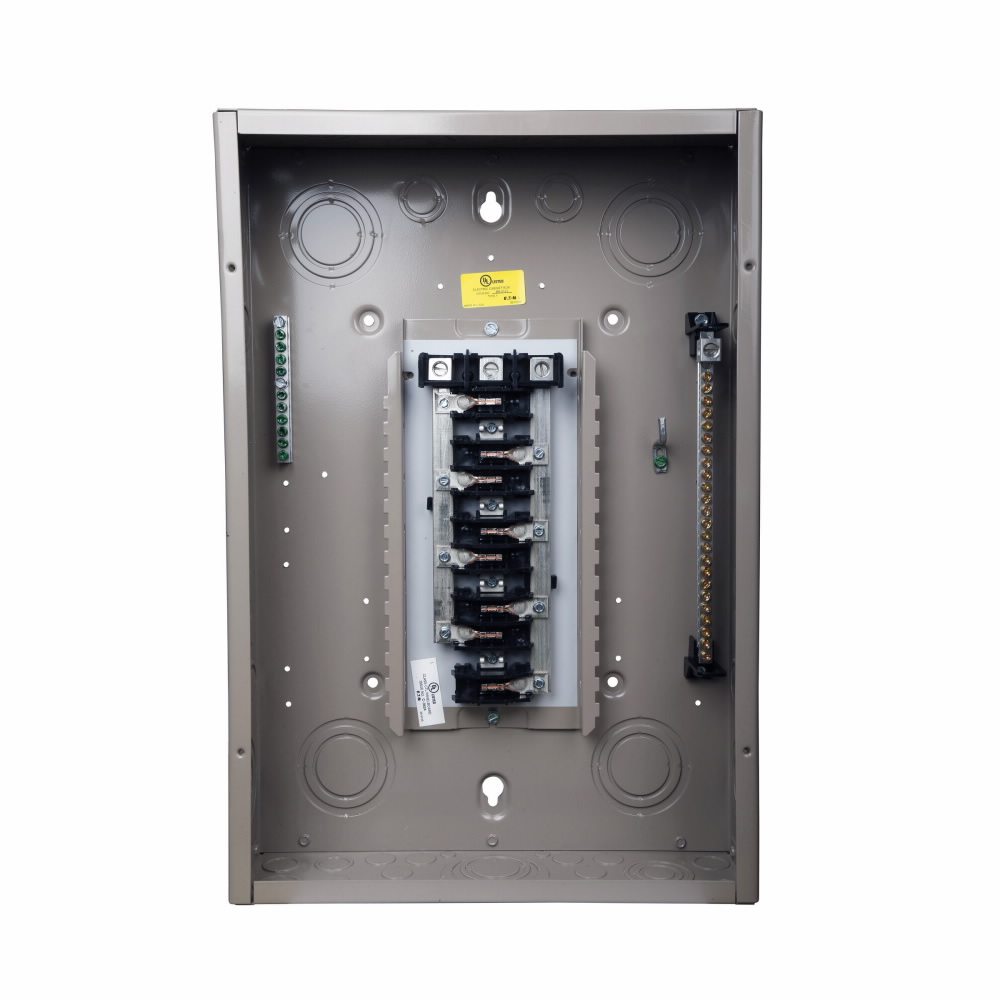

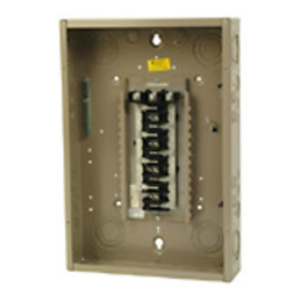

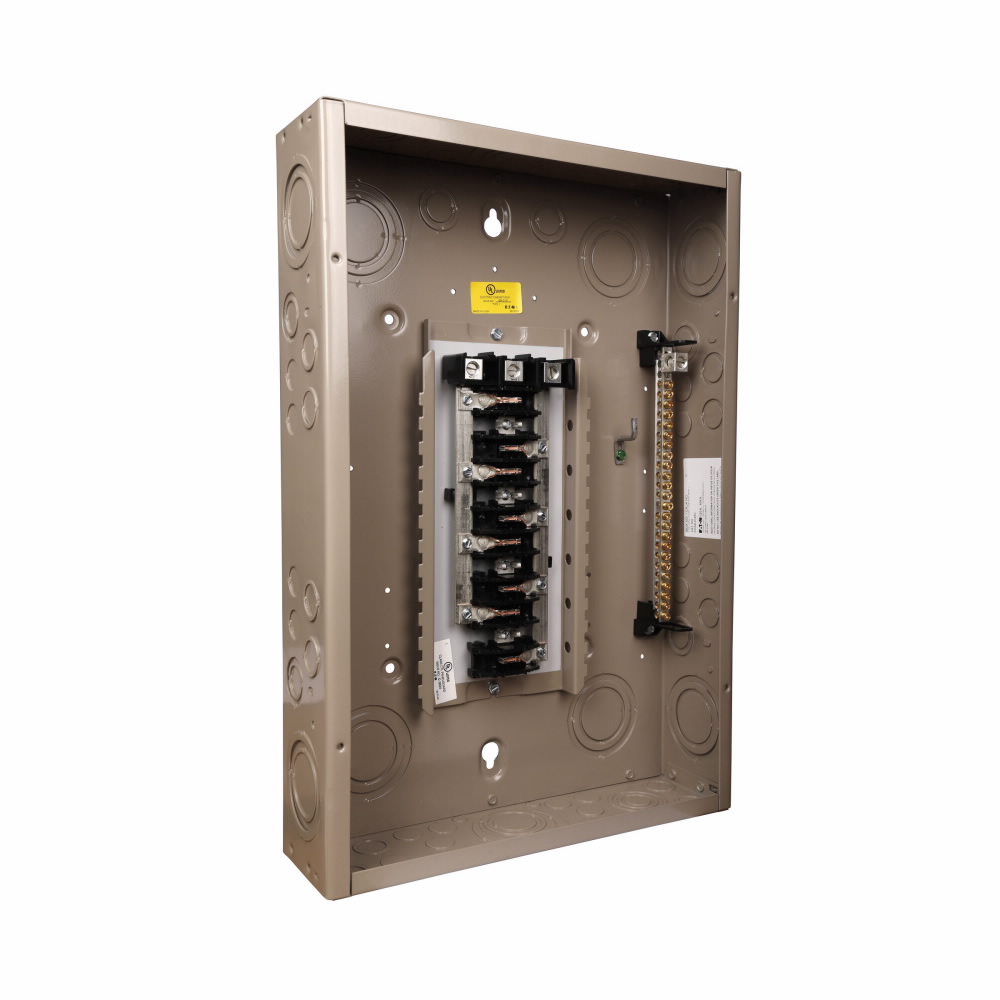

CH24L3125C – 3PH/CH Loadcntr 125A Mlo 24 Cir. Cu Bus Nema 1
$
(per )
(Each)
$343.30
(Each)
$
(per 1)
Availability:
In Stock Locally
| Quick Specs | |
|---|---|
| Catalog Number | CH24L3125C |
| Vendor Code | CHD |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | CH24L3125C |
| Description | 3PH/CH Loadcntr 125A Mlo 24 Cir. Cu Bus Nema 1 |
| Long Description | Main Lug Load Center, 24 Spaces, 24 Circuits, 125 A, 120/208/240 V Ac, #6-2/0 Awg Wire Size, Metallic (Enclosure) Material, Copper Bus Material, 36.3474 CM Overall Length, 13.1826 CM Overall Width, 53.3400 CM Overall Height |
| Categories | Load Centers & Accessories – Three Phase Main Lug Load Cent |
| Classification | Loadcenters & Covers |
| UNSPSC | 39121101 – Load centers |
| UPC/GTIN | 782113097657 / 00782113097657 |
| Weight per unit | 13.9 (lbs/each) |
| Minimum Order Quantity | 1 |
| Unit Price | $343.30 (Each) |
| Current Rating | 125 A |
| Voltage Rating | 120/208/240 V ac |
| Wire Size | #6-2/0 AWG |
| Material | Metallic (Enclosure) |
| Amperage Rating | 125 |
| Phase | 3 |
| Interrupt Rating | 35 |
| Bus Material | Copper |
| Overall Length | 36.3474 cm |
| Width | 14.31 |
| Depth | 21 |
| Height | 5.19 |
| Size | C |
| Product Type | Main Lug Only |
| Special Features | 3 Phase |
| Short Description | Main Lug Only, 24 Spaces, 125 A, 120/208/240 Vac |
| Extra Long Description | ETN CH24L3125C 3Ph/CH LC 125A MLO 2 |
| Features | Eaton’s CH 3/4-inch loadcenters enclose CH circuit breakers for power distribution and circuit protection in residential and light commercial applications. Also called a breaker box, electrical box or even a fuse box, the main function is to take electricity supplied by the utility and distribute it throughout the home to feed lights and receptacles. Covers are typically packaged separately and available as surface or flush mount. |
| Brand | EATON CUTLER-HAMMER |
| GTIN | 00782113097657 |
| UPC | 782113097657 |
| Category Description | LOADCENTERS & COVERS |
| Type | Main lug loadcenter |
| Weight per each | 13.9 |
| Carton | 1 |
| Application | Power Distribution |
| Standards Met | UL 50, UL 67 |
