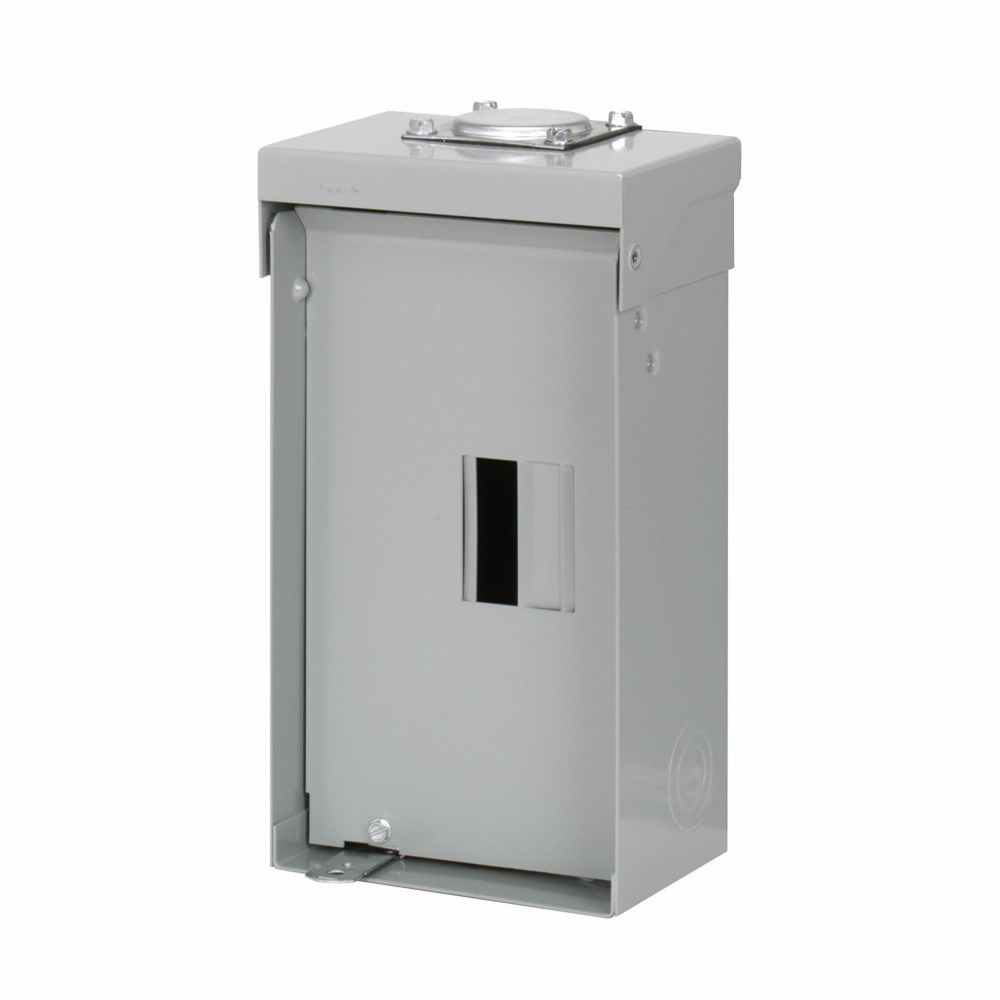

CH2L125RP – 1 PH/CH Loadcntr 125A Mlo 2/4 Cir. Cu Bus Nema 3R
$
(per )
(Each)
$113.13
(Each)
$
(per 1)
Availability:
In Stock Locally
| Field | Value |
|---|---|
| Catalog Number | CH2L125RP |
| Vendor Code | CHD |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | CH2L125RP |
| Description | 1 PH/CH Loadcntr 125A Mlo 2/4 Cir. Cu Bus Nema 3R |
| Detailed Description | Main Lug Load Center, 2 Spaces, 2 Circuits, 125 A, 120/240 V Ac, #1 to 4/0 Awg Wire Size, Metallic Material, Copper Bus Material, 6.50 In Overall Length, 4.50 In Overall Width, 11.75 In Overall Height, 7.35 LB |
| Categories | Load Centers & Accessories – Single Phase Main Lug Load Cen |
| Classification | Loadcenters & Covers |
| UNSPSC | 39121101 – Load centers |
| UPC/GTIN | 782114190487 / 00782114190487 |
| Weight per unit | 7.35 (lbs/each) |
| Minimum Order Quantity | 1 |
| Unit Price | $113.13 (Each) |
| Current Rating | 125 A |
| Voltage Rating | 120/240 V ac |
| Wire Size | #1 to 4/0 AWG |
| Material | Metallic |
| Phase | 1 |
| Amperage Rating | 125 |
| Interrupt Rating | 25 |
| Wattage | Four-pole |
| Bus Material | Copper |
| Overall Length | 6.50 in;165.1 mm |
| Height | 3.13 |
| Width | 4.5 |
| Size | 6r |
| Depth | 9.5 |
| Product Type | Main Lug Load Center |
| Long Description | Main Lug Load Center, 2 Spaces, 2 Circuits, 125 A, 120/240 V ac, #1 to 4/0 AWG Wire Size, Metallic Material, Copper Bus Material, 6.50 in Overall Length, 4.50 in Overall Width, 11.75 in Overall Height, 7.35 lb |
| Features | Loadcenters are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets. |
| Short Description | NEMA 3R Main Lug Load Center, 2/2 C, 125 A |
| Special Features | Standard In |
| Extra Long Description | ETN CH2L125RP 1 Ph/CH LC 125A MLO 2 |
| Additional Description | 1 PH/CH LOADCNTR 125A MLO 2/4 CIR. CU BUS NEMA 3R |
| Media | Yes |
| Number of Spaces | 2 |
| Number of Circuits | 2 |
| Enclosure Type | Nema 3R |
| For Use With | Type CH Breakers |
| Overall Width | 4.50 in;114.3 mm |
| Overall Height | 11.75 in;298.5 mm |
| Circuit Breaker Compatibility | CH Circuit Breaker |
| Recommended Environment | Outdoor |
| Standards Met | UL 50 Listed; UL 67 Listed |
| Made in USA | Yes |
| Brand | EATON CUTLER-HAMMER |
| GTIN | 00782114190487 |
| UPC | 782114190487 |
| Category Description | LOADCENTERS & COVERS |
| Type | Main lug loadcenter |
| Weight | 7.35 lb |
| Weight per each | 7.35 |
| Carton | 1 |
| Application | Residential |
| Standard | UL 67, UL 50 |
