| Field | Value |
|---|---|
| Catalog Number | CH30L3225D |
| Vendor Code | CHD |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | CH30L3225D |
| Description | 3PH/CH Loadcntr 225A Mlo 30 Cir. Cu Bus Nema 1 |

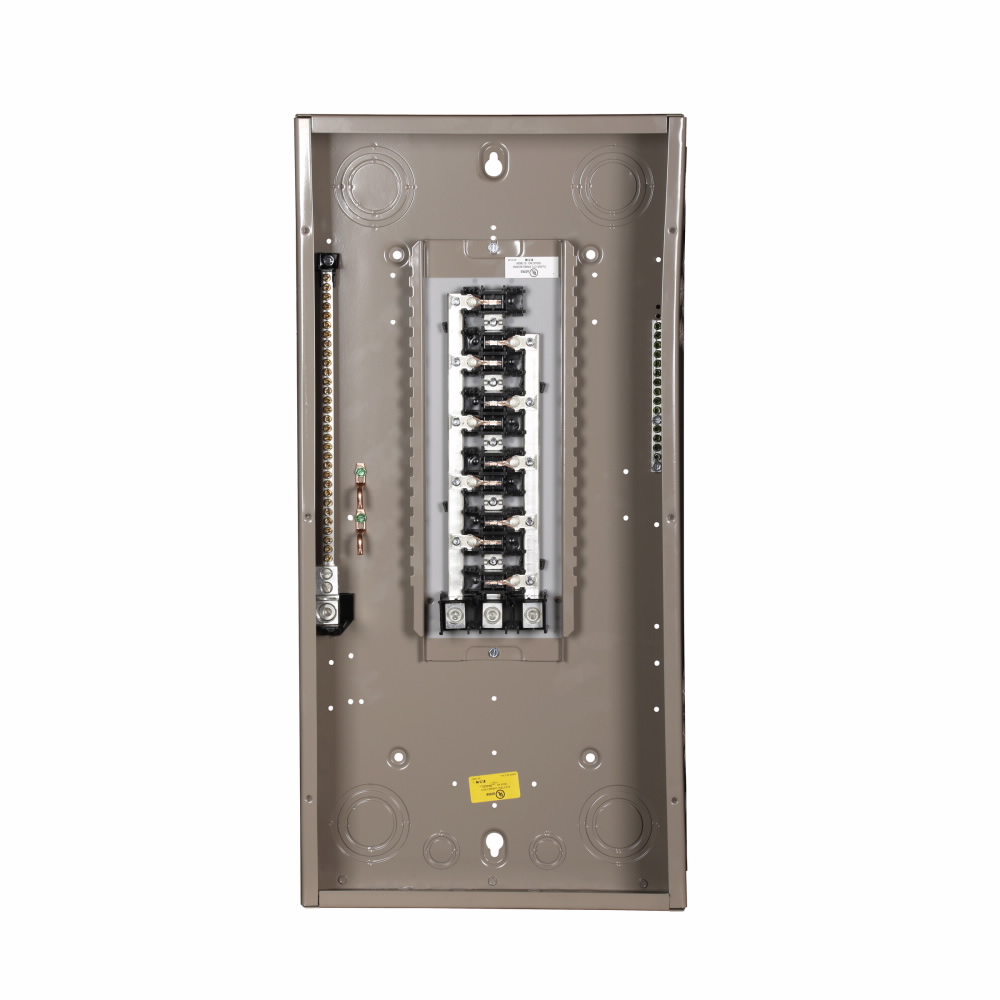

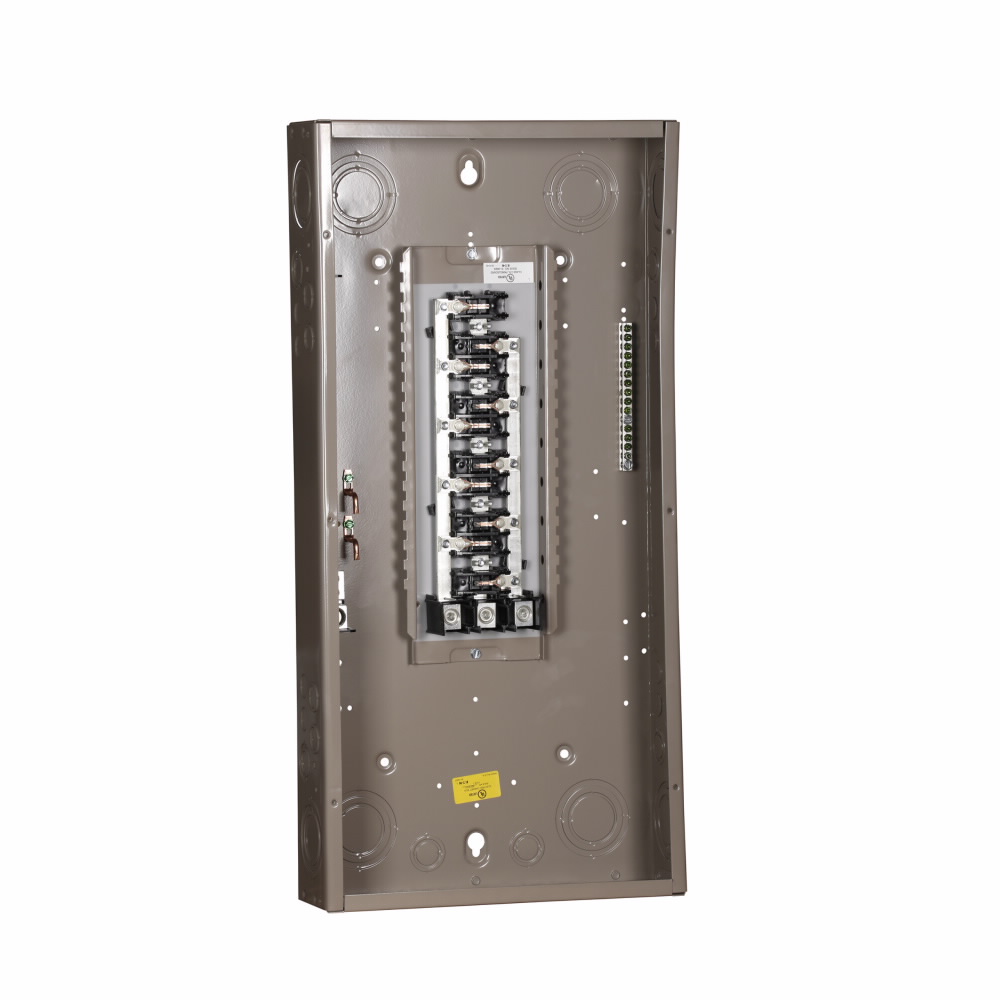

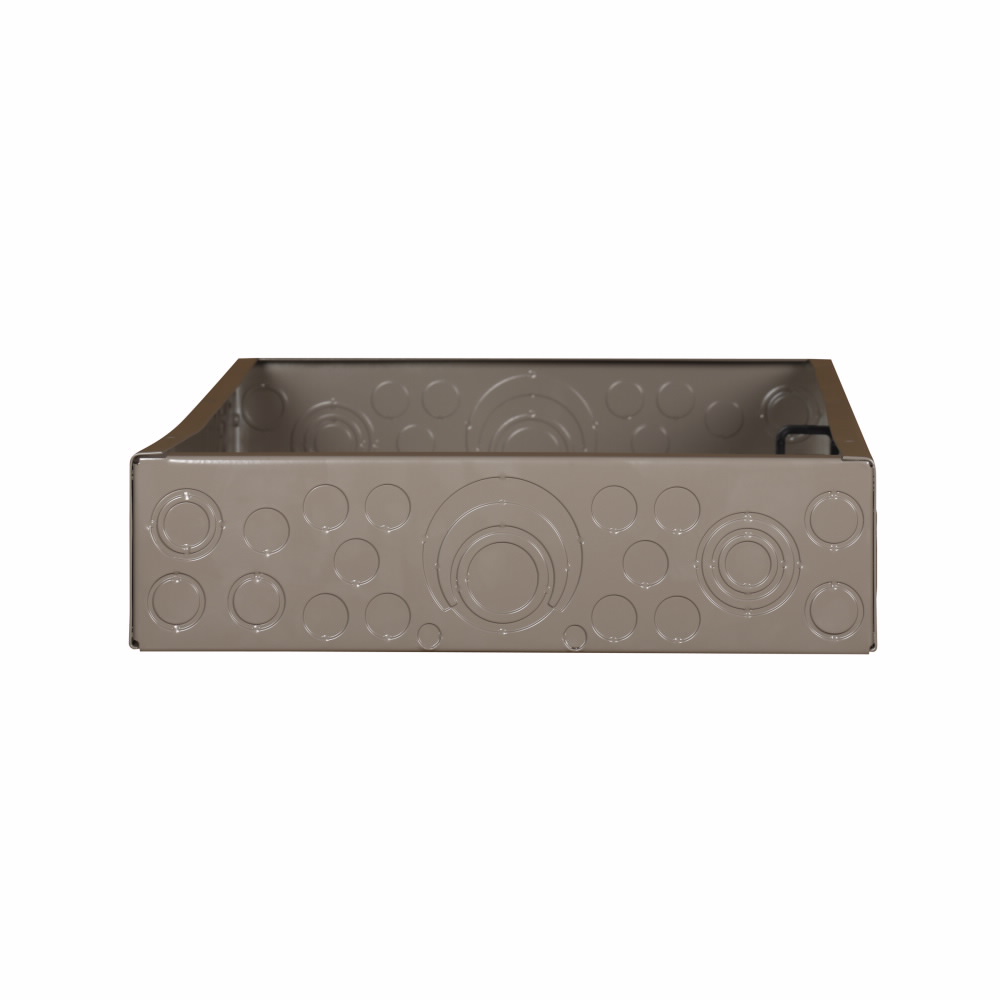

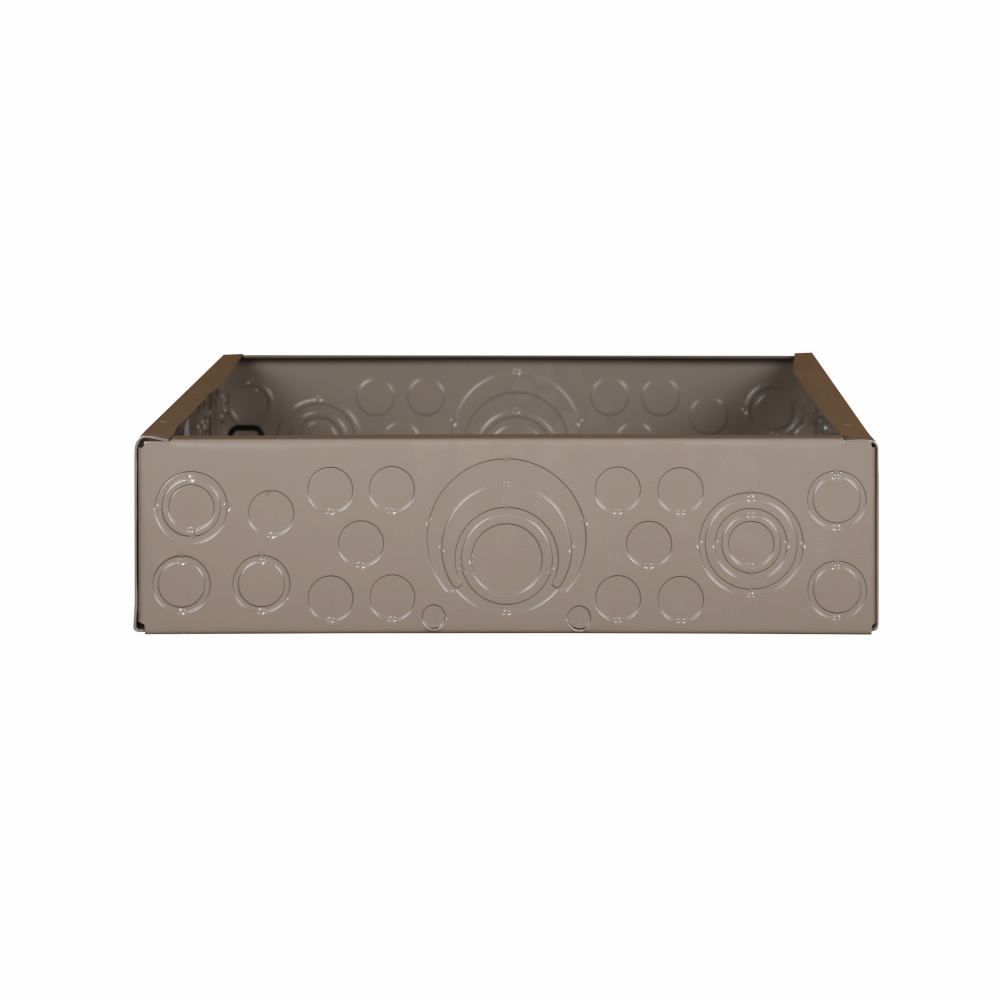

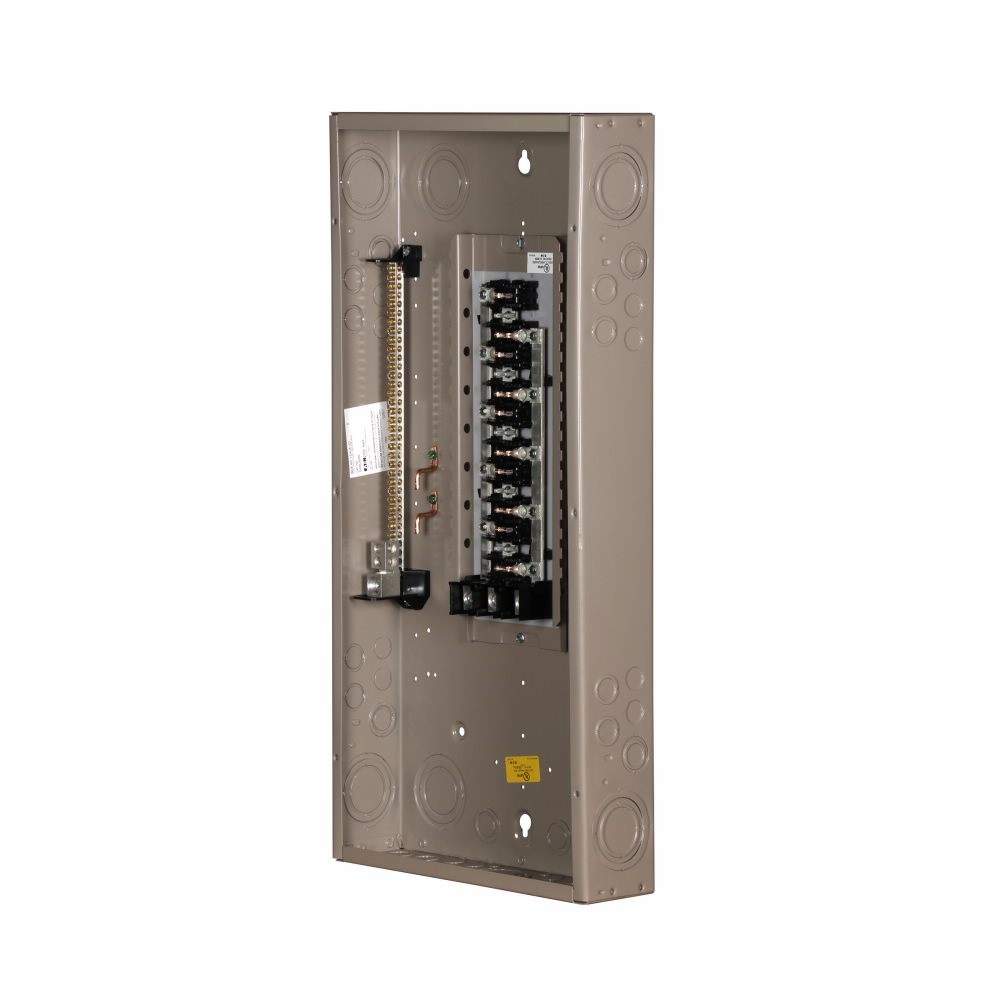

| Long Description | Eaton CH main lug loadcenter,Standard,Main lug only,225 A,D,Copper,NEMA 1,Metallic,Top/bottom,CH,30 Circuits,30 Spaces,Four-wire,Three-phase,#4 AWG-300 kcmil |
| Extra Long Description | ETN CH30L3225D 3Ph/CH LC 225A MLO 3 |
| Product Type | 3PH/CH LC 225A Mlo 30 CKT Cu Bus Nema 1 |
| Categories | Load Centers & Accessories – Three Phase Main Lug Load Cent |
| Classification | Loadcenters & Covers |
| UNSPSC | 39121101 – Load centers |
| UPC/GTIN | 782113097923 / 00782113097923 |
| Weight per unit | 34.6 (lbs/each) |
| Minimum Order Quantity | 1 |
| Unit Price | $434.47 (Each) |
| Amperage Rating | 225 |
| Phase | 3 |
| Interrupt Rating | 35 |
| Width | 14.31 |
| Depth | 29.13 |
| Height | 3.88 |
| Size | D |
| Features | Eaton’s CH 3/4-inch loadcenters enclose CH circuit breakers for power distribution and circuit protection in residential and light commercial applications. Also called a breaker box, electrical box or even a fuse box, the main function is to take electricity supplied by the utility and distribute it throughout the home to feed lights and receptacles. Covers are typically packaged separately and available as surface or flush mount. |
| Special Features | Standard |
| Number of Spaces | 30 |
| Media | Yes |
| Brand | EATON CUTLER-HAMMER |
| GTIN | 00782113097923 |
| UPC | 782113097923 |
| Category Description | LOADCENTERS & COVERS |
| Type | Main lug loadcenter |
| Weight per each | 34.6 |
| Carton | 1 |
| Application | Elec Assemblies, Panels & EOEM – Electrical Assemblies, Panels and EOEMs |
| Standard | UL 50, UL 67 |
