(Each)
$60.72
(Each)
(per 1)
(per 3)
In Stock Locally
$60.72
| Field | Value |
|---|---|
| Catalog Number | CH4L125SP |
| Vendor Code | CHD |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | CH4L125SP |

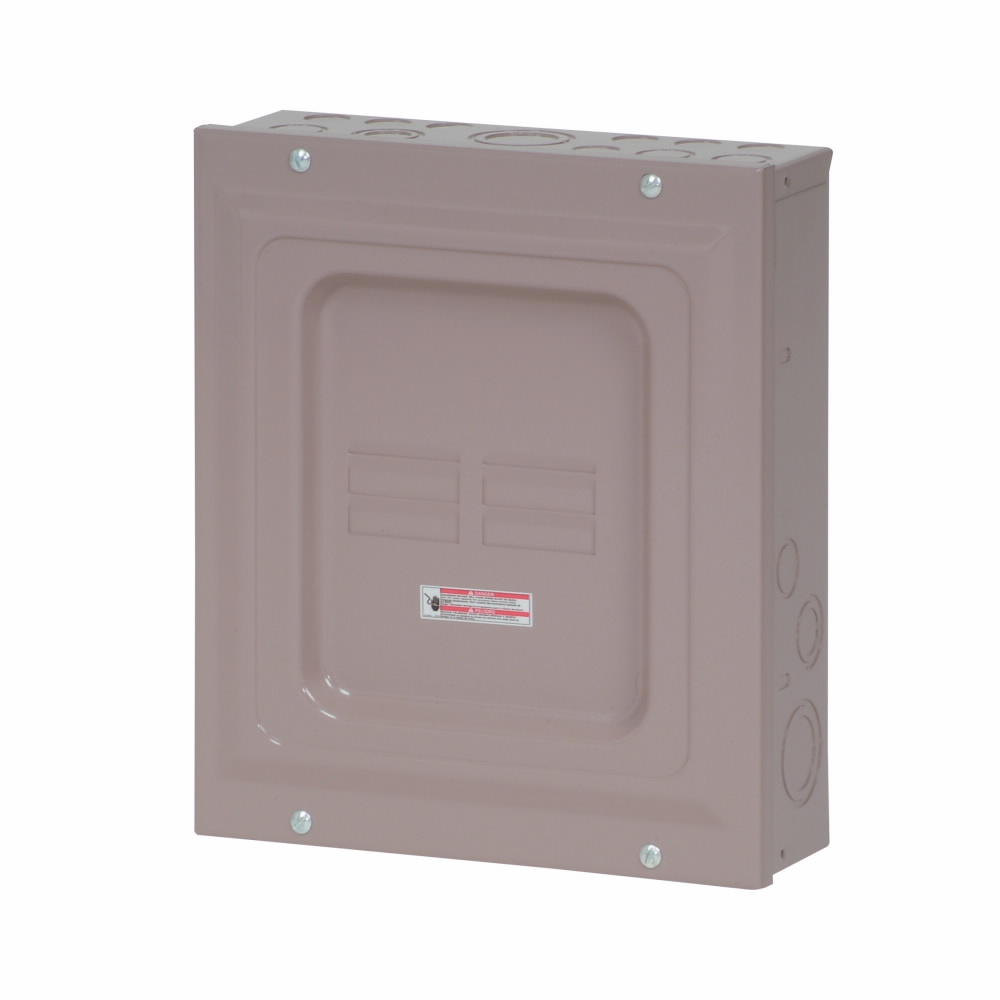

| Description | 1 PH/CH Loadcntr 125A Mlo 4/8 Cir. Cu Bus Surface |
| Long Description | Main Lug Load Center, 4 Spaces, 4 Circuits, 125 A, 120/240 V ac, #14 to 1/0 AWG Wire Size, Metallic Material, Copper Bus Material, 11 in Overall Length, 3.69 in Overall Width, 13 in Overall Height, Surface Mount (Trim), 9.8 lb |
| Extra Long Description | ETN CH4L125SP 1 Ph/CH LC 125A MLO 4 |
| Product Type | Main Lug Load Center |
| Short Description | NEMA 1 Main Lug Load Center, 4/4 C, 125 A |
| Categories | Load Centers & Accessories – Single Phase Main Lug Load Cen |
| Classification | Loadcenters & Covers |
| UNSPSC | 39121101 – Load centers |
| UPC/GTIN | 782114190500 / 00782114190500 |
| Weight per unit | 9.8 (lbs/each) |
| Minimum Order Quantity | 1 |
| Unit Price | $60.72 (Each) |
| Standard Packaging | $182.16 (Per 3) |
| Phase | 1 |
| Voltage Rating | 120/240 V ac |
| Amperage Rating | 125 |
| Interrupt Rating | 25 |
| Wattage | Eight-pole |
| Wire Size | #14 to 1/0 AWG |
| Material | Metallic |
| Bus Material | Copper |
| Overall Length | 11 in; 279.4 mm |
| Width | 11 |
| Depth | 13 |
| Height | 3.69 |
| Size | 7 |
| Number of Circuits | 4 |
| Number of Spaces | 4 |
| Enclosure Type | Nema 1 |
| For Use With | Type CH Breakers |
| Circuit Breaker Compatibility | CH Circuit Breaker |
| Mounting Type | Surface Mount (Trim) |
| Recommended Environment | Indoor |
| Features | Loadcenters are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets. |
| Special Features | Standard In |
| Media | Yes |
| Brand | EATON CUTLER-HAMMER |
| GTIN | 00782114190500 |
| UPC | 782114190500 |
| Category Description | LOADCENTERS & COVERS |
| Type | Main lug loadcenter |
| Weight | 9.8 lb |
| Carton | 1 |
| Package | 3 |
| Application | Residential |
| Mounting | Surface Mount |
| Standards Met | UL 50, UL 67 |
| Made in USA | Yes |
