| Field | Value |
|---|---|
| Catalog Number | CH8L125RP |
| Vendor Code | CHD |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | CH8L125RP |

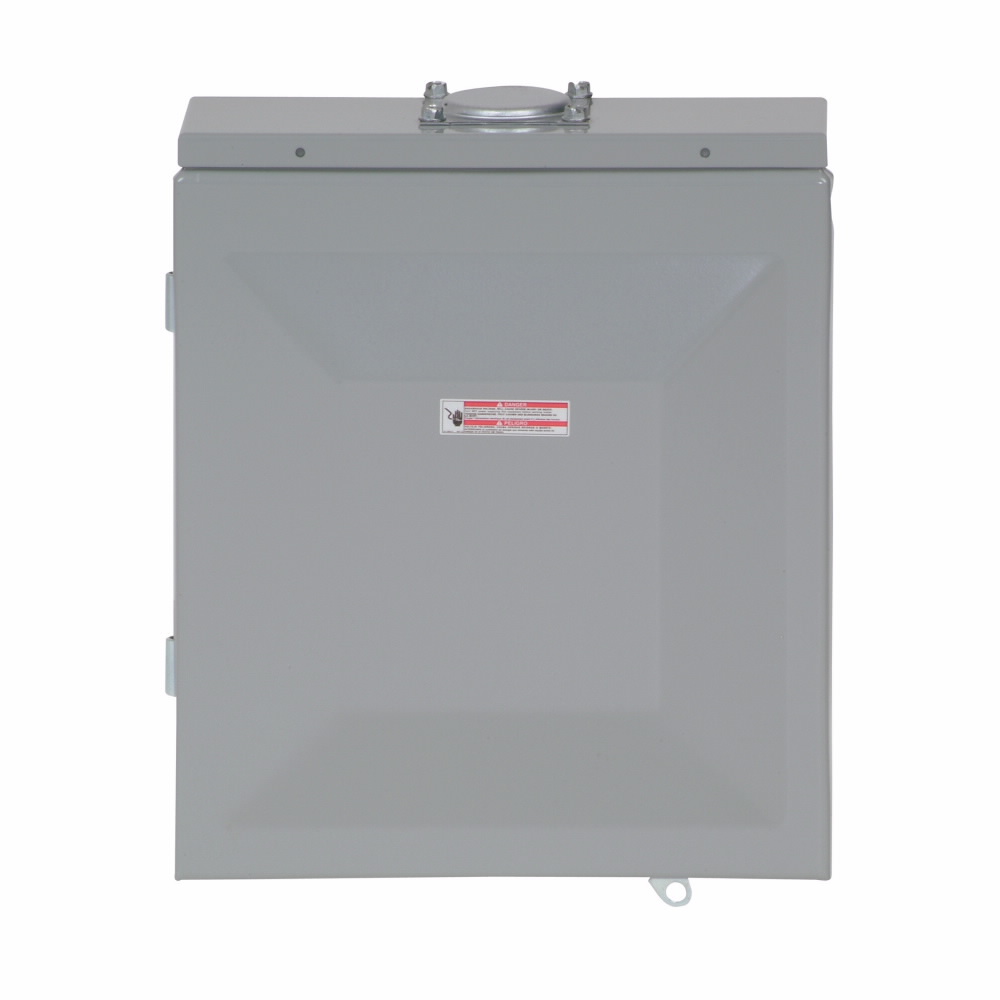

| Description | 1 PH/CH Loadcntr 125A Mlo 8/16 Cir. Cu Bus Nema 3R |
| Long Description | Main Lug Load Center, 8 Spaces, 8 Circuits, 125 A, 120/240 V AC, #6 to 1/0 AWG Wire Size, Metallic Material, Copper Bus Material, 11 in Overall Length, 3.69 in Overall Width, 13 in Overall Height, 11.94 lb |
| Categories | Load Centers & Accessories – Single Phase Main Lug Load Centers |
| Classification | Loadcenters & Covers |
| UNSPSC | 39121101 – Load centers |
| UPC/GTIN | 782114190548 / 00782114190548 |
| Weight per unit | 11.94 (lbs/each) |
| Minimum Order Quantity | 1 |
| Unit Price | $123.64 (Each) |
| Overall Length | 11 in (279.4 mm) |
| Overall Width | 3.69 in (93.7 mm) |
| Overall Height | 13 in (330.2 mm) |
| Wire Size | #6 to 1/0 AWG |
| Material | Metallic (Copper Bus Material) |
| Mounting Type | Flush Mount |
| Voltage Rating | 120/240 V AC |
| Amperage Rating | 125 A |
| Phase | 1 |
| Current Rating | 125 A |
| Interrupt Rating | 25 |
| Bus Material | Copper |
| Enclosure Type | NEMA 3R |
| Number of Spaces | 8 |
| Number of Circuits | 8 |
| Circuit Breaker Compatibility | CH Circuit Breaker |
| Recommended Environment | Outdoor |
| Standards Met | UL 50 Listed; UL 67 Listed |
| Made in USA | Yes |
| Application | Residential |
| Special Features | Cover included |
