(Each)
$24.07
(Each)
(per 10)
(per 100)
In Stock Locally
$24.07
| Catalog Number | CHB4 |
|---|---|
| Vendor Code | CRS |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | CHB4 |

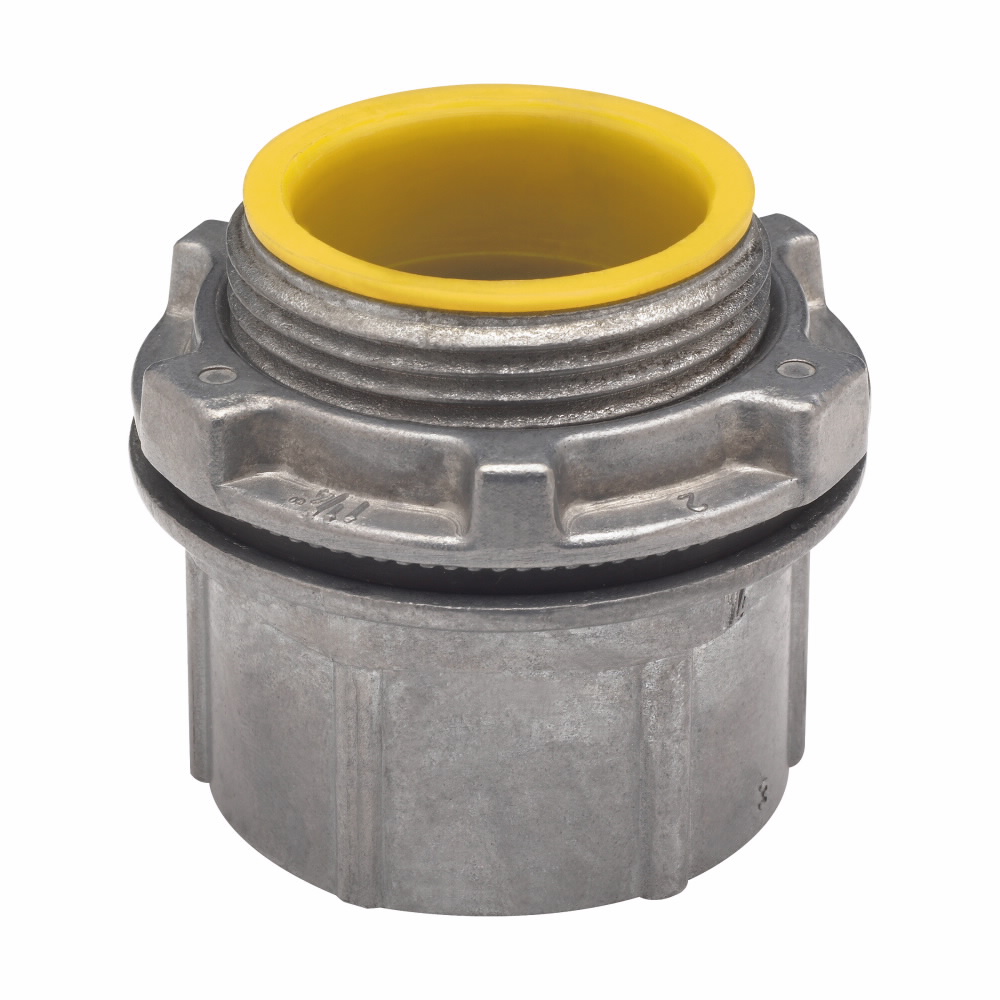

| Description | 1-1/4″ Commercial Hub |
| Product Type | Commercial Hub |
| Short Description | 2″ Commercial Hub, Natural, Zinc |
| Long Description | Commercial Hub, CHB Model, Straight, Natural, Insulated, 1-1/4 in Connection Size, NPT Connection, 1-1/4 in Hub Size, 2 in Length, 2-1/4 in Diameter, 43 lb/100 |
| Extra Long Description | CRS-H CHB4 1 1/4 COMMERCIAL HUB |
| Special Features | Corrosion Resistant; Thinner and Lighter Weight Construction |
| Features | The use of rigid/IMC conduit remains the preferred choice… secure termination. |
| Shape | Straight |
| Material | Zamek-2, Zamek-3 Type Zinc Body and Nut, Neoprene Gasket, Lexan 920A Insuliner |
| Finish | Natural |
| Hub Size | 1-1/4 in |
| Length | 2 in |
| Diameter | 2-1/4 in |
| Size | 1-1/4 in |
| Color/Finish | Natural |
| Insulated/Non-Insulated | Insulated |
| Connection Size | 1-1/4 in |
| Connection Type | NPT |
| Enclosure Type | Class I Div 2, Class II Div 1 and 2, Class III Div 1 and 2 |
| For Use With | Rigid and IMC Conduit |
| Application | Physical Protection of Conductors and Long Service Life of the Installation |
| Standard | UL, cUL |
| Standards Met | UL Listed; cUL Listed; UL File No: E-19189; NEC/CEC Certified |
| Made in USA | Yes |
| Slang Terms | |
| Categories | Rigid Conduit Fittings – Rigid Conduit Fittings – Steel |
| Classification | Watertight Hub, 3-Piece Couplings, Threadless Couplings and Threadless Connector |
| UNSPSC | 39121311 – Electrical fittings |
| UPC/GTIN | 662277008211 / 00662277008211 |
| GTIN | 00662277008211 |
| UPC | 662277008211 |
| Weight per unit | 0.16 lbs/each |
| Weight | 43 lb/100 |
| Minimum Order Quantity | 1 |
| Unit Price | $24.07 (Each) |
| Carton Price | $24.07 (Each) |
| Standard Packaging | $240.70 (Per 10) |
| Package Quantity | 10 PK |
| Carton | 1 |
| Package | 10 |
| Dimensions | 2.0000 IN X 2.2500 IN X 2.2500 IN |
| Brand | Eaton |
| Model | CHB |
| Type | Commercial hub |
