Description
$3.76
Description
Catalog Number | CR20WHI |
---|---|
Vendor Code | HWD |
Manufacturer | Wiring Device-Kellems |
Manufacturer’s Part Number | CR20WHI |

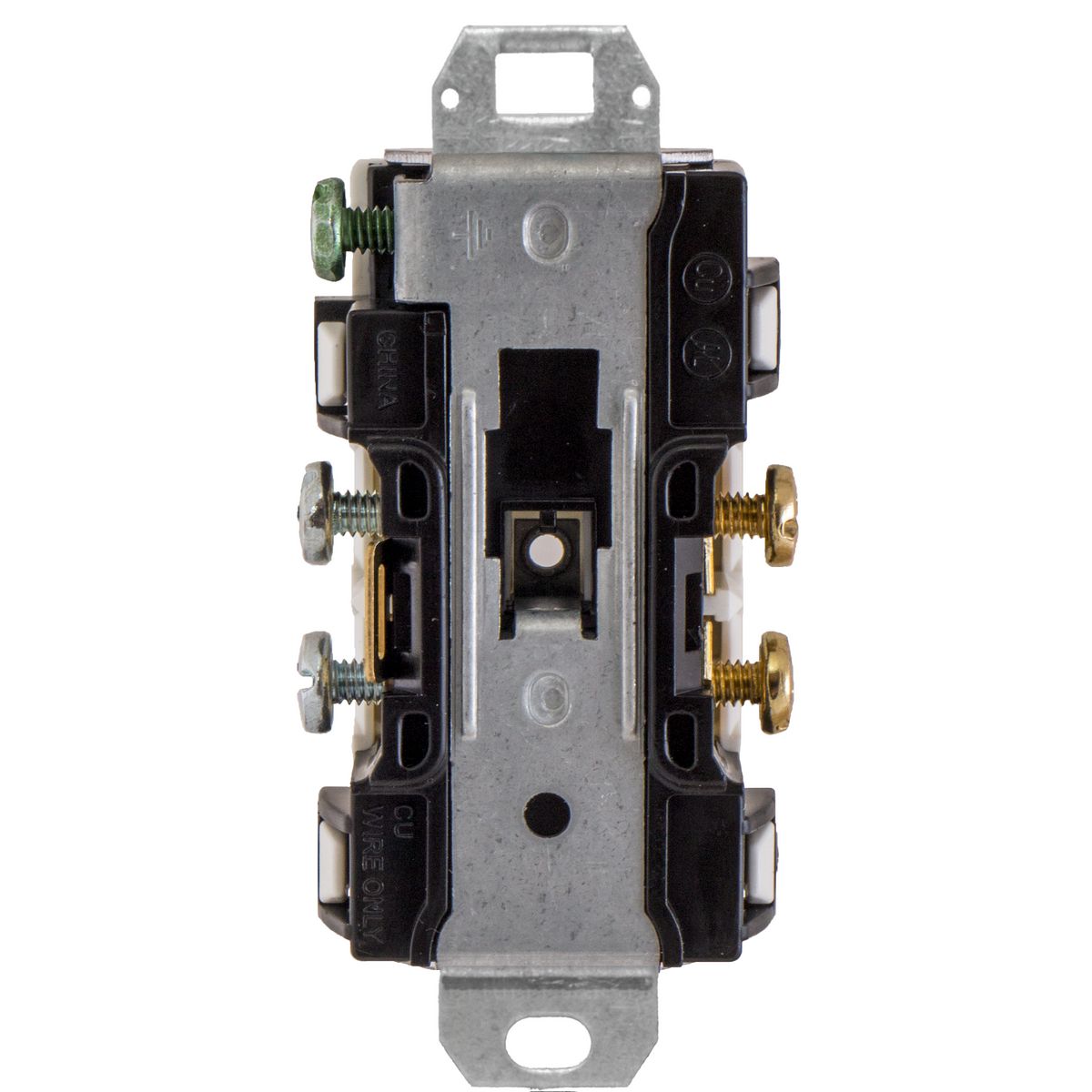

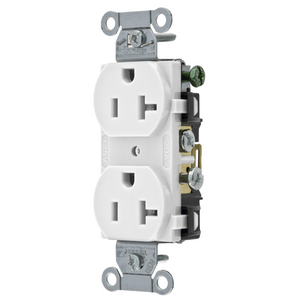

Description | Dup RCPT, Comm GRD, 20A 125V, 5-20R, WH |
Product Type | Duplex Receptacle |
Long Description | Duplex Receptacle, 20 A, 125 V, 2 Poles, 3 Wires, #14 to #12 AWG Compatible Wire Size, Back and Side Wired Connection, Screw Mount, 1.32 in Length, 0.83 in Width, 3.28 in Height, Nylon Material, White, Impact Resistant, 0.1000 lb |
Extra Long Description | HWDK CR20WHI DUP RCPT, COMM GRD, 20 |
Special Features | Power Rating 1 Hp |
Features | Straight Blade Devices, Receptacles, Duplex, Commercial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, White, Single Pack |
Receptacle Type | Duplex |
Connection Type | Back and Side Wired |
Mounting Type | Screw Mount |
Resistance Properties | Impact Resistant |
Current Rating | 20 A |
Voltage Rating | 125 V |
Poles | 2-Pole |
Wires | 3-Wire |
Wire Size | #14 to #12 AWG |
Material | Nylon |
Color | White |
Dimensions |
Length: 1.32 in Width: 0.83 in Height: 3.28 in Size: 1.32 in x 0.83 in x 3.28 in |
Weight per Each | 0.15 lb |
Unit Price | $3.76 (Each) |
Carton Price | $37.60 (Per 10) |
Package Quantity | 1 CT; 10 PK |
Stock Availability | Nacogdoches: 0 All Stores: 4,105 |
UPC | 783585900179 |
GTIN | 00783585900179 |
UNSPSC | 39121406 – Electrical receptacles |
Category | Commercial receptacles |
Classification | Commercial Receptacles |
Application | Commercial |
NEMA Rating | NEMA WD-6 |
Dielectric Strength | Withstands 2,000V minimum |
Made in USA | Yes |
Environmental Conditions | Indoor Dry unless protected by additional means |
Standards Met | UL Listed; CSA Certified; Federal Specification WC-596; Certified to CSA C22.2 No. 42; NEMA WD-6 Compliant; UL Listed to UL498 File No. E2186 |
