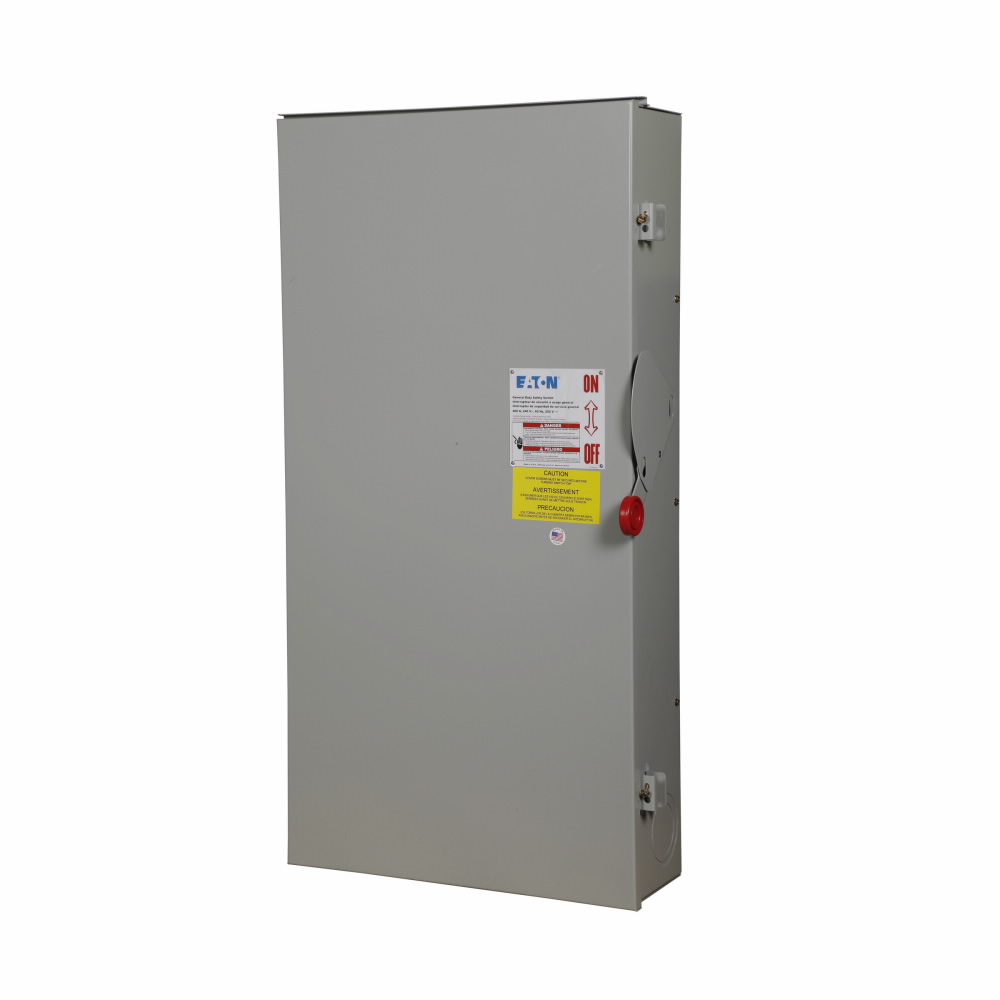

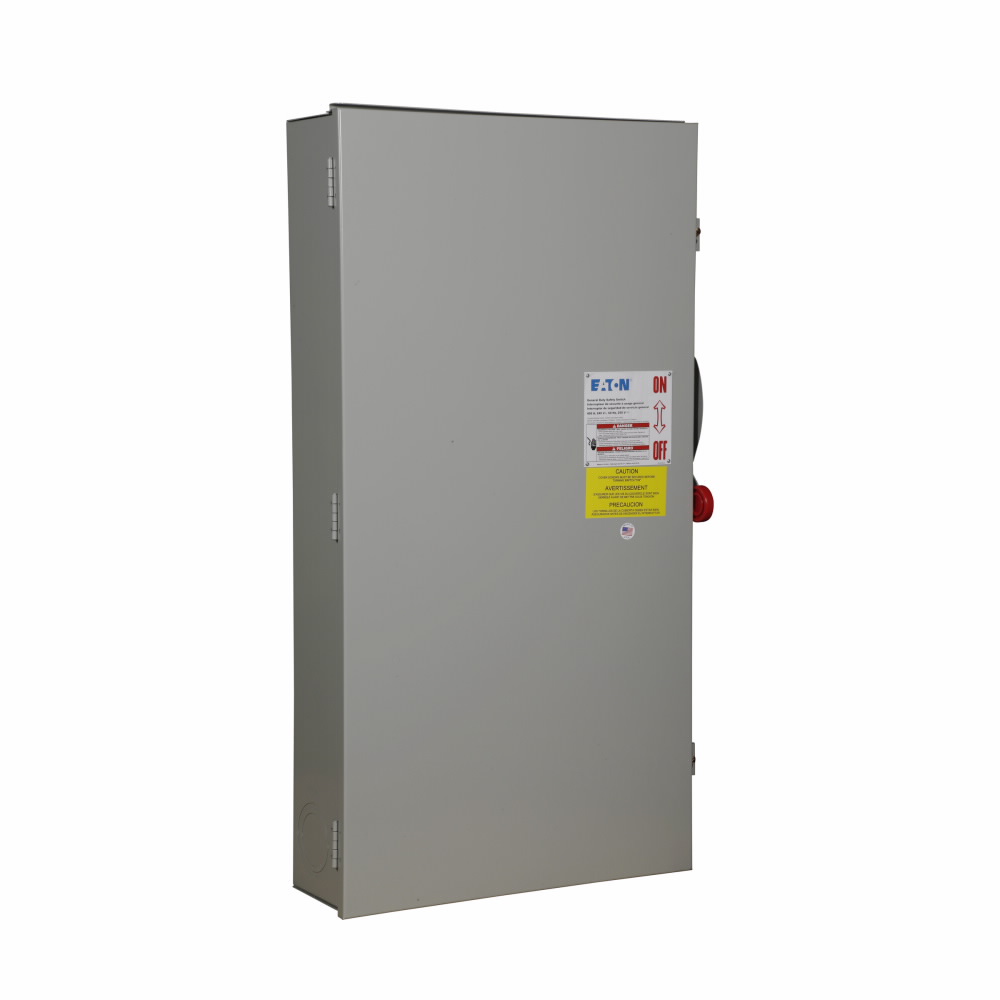

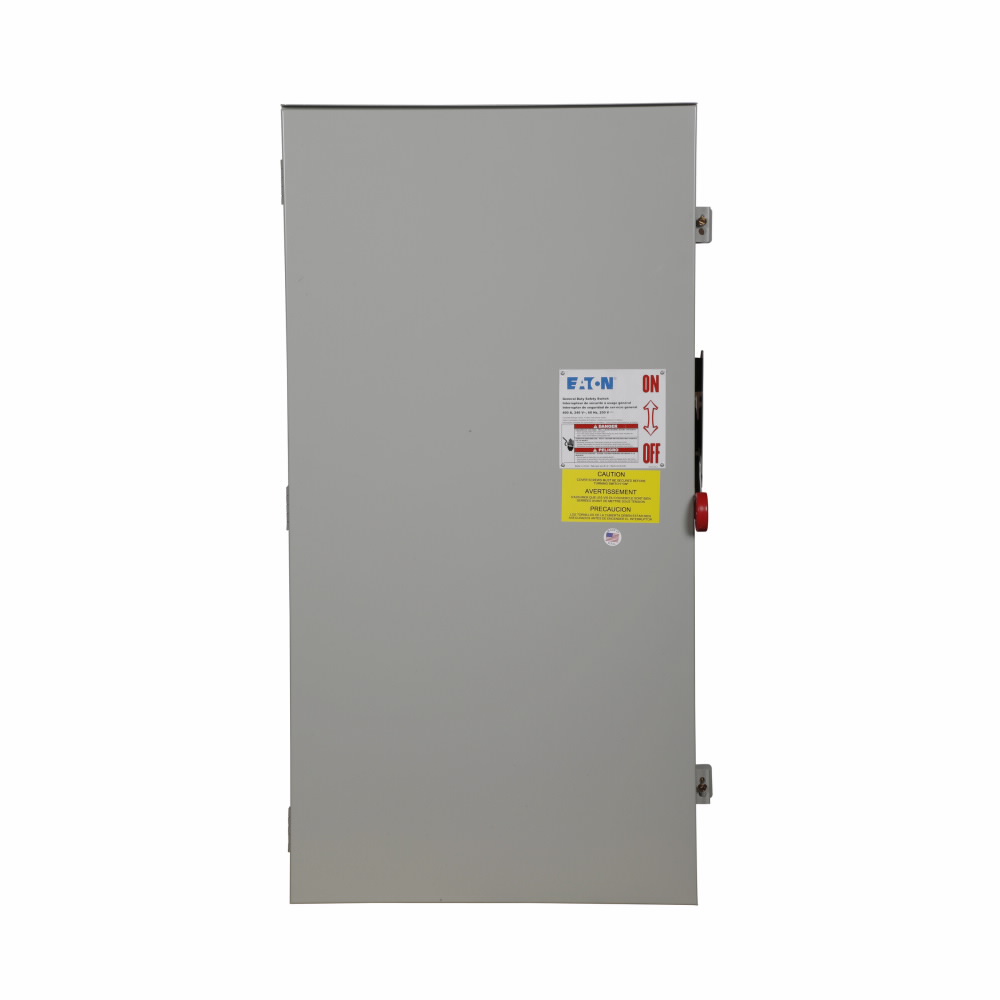

DG225NRK – 400A/2P GD Fusible Safety Switch W/Neut 240V Nema
$
(per )
(Each)
$2,466.82
(Each)
$
(per 1)
Availability:
In Stock Locally
| Field | Value |
|---|---|
| Catalog Number | DG225NRK |
| Vendor Code | CHD |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | DG225NRK |
| Description | 400A/2P GD Fusible Safety Switch W/Neut 240V Nema |
| Product Type | Safety Switch |
| Type | Cartridge Fuse Safety Switch |
| Application | Power Distribution |
| Voltage Rating | 240 V ac |
| Current Rating | 400 A |
| Amperage Rating | 400 |
| Poles | 2 |
| Wires | 3 |
| Fusible/Non Fusible | Fusible |
| Fuse Type | Class H Fuse |
| Enclosure Type | NEMA 3R |
| Material | Painted Galvanized Steel |
| Power Rating | 3 W |
| Dimensions (W x D x H) | 12.63 in x 7.27 in x 45.19 in |
| Overall Length | 23 in; 584.2 mm |
| Width | 12.63 in; 320.8 mm |
| Height | 45.19 in; 1147.8 mm |
| Depth | 7.27 in |
| Weight | 115 lb; 52.21 kg |
| Weight per Unit | 112 lbs |
| Packaging | 1 per carton |
| Price | $2,466.82 (Each) |
| Minimum Order Quantity | 1 |
| Standards Met | UL Listed, NEC 230.62 (C) Compliant Barrier |
| Made in USA | Yes |
| Media | Yes |
| UPC/GTIN | 782113589503 / 00782113589503 |
| Category | Disconnects |
| Classification | General Duty Safety Switches – Fusible |
| Brand | EATON CUTLER-HAMMER |
