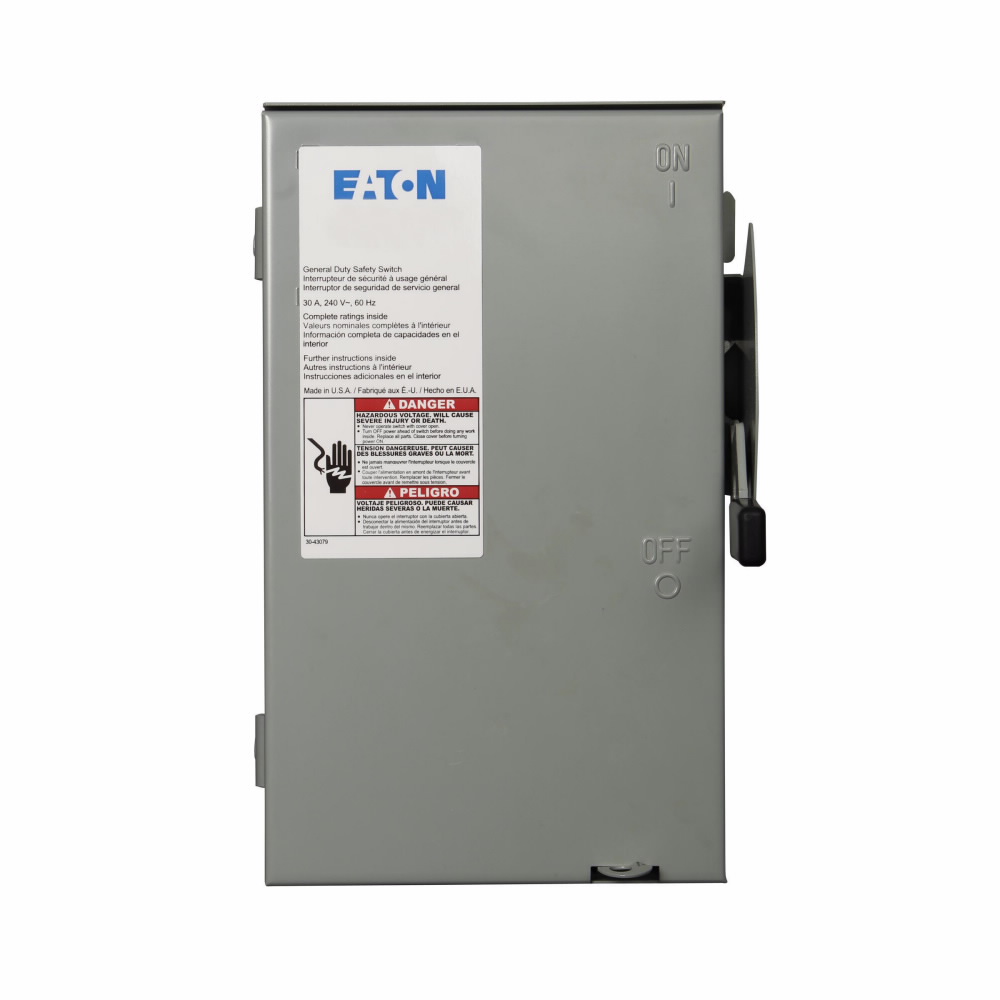

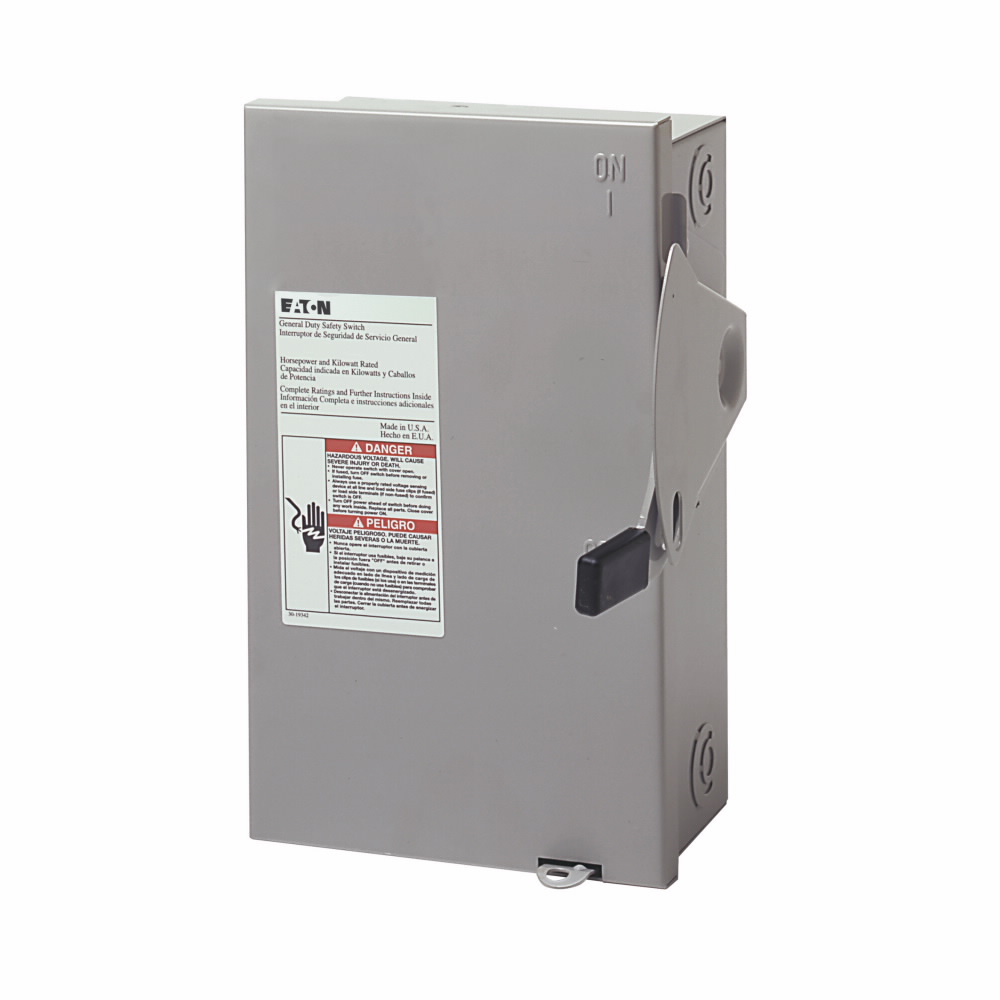

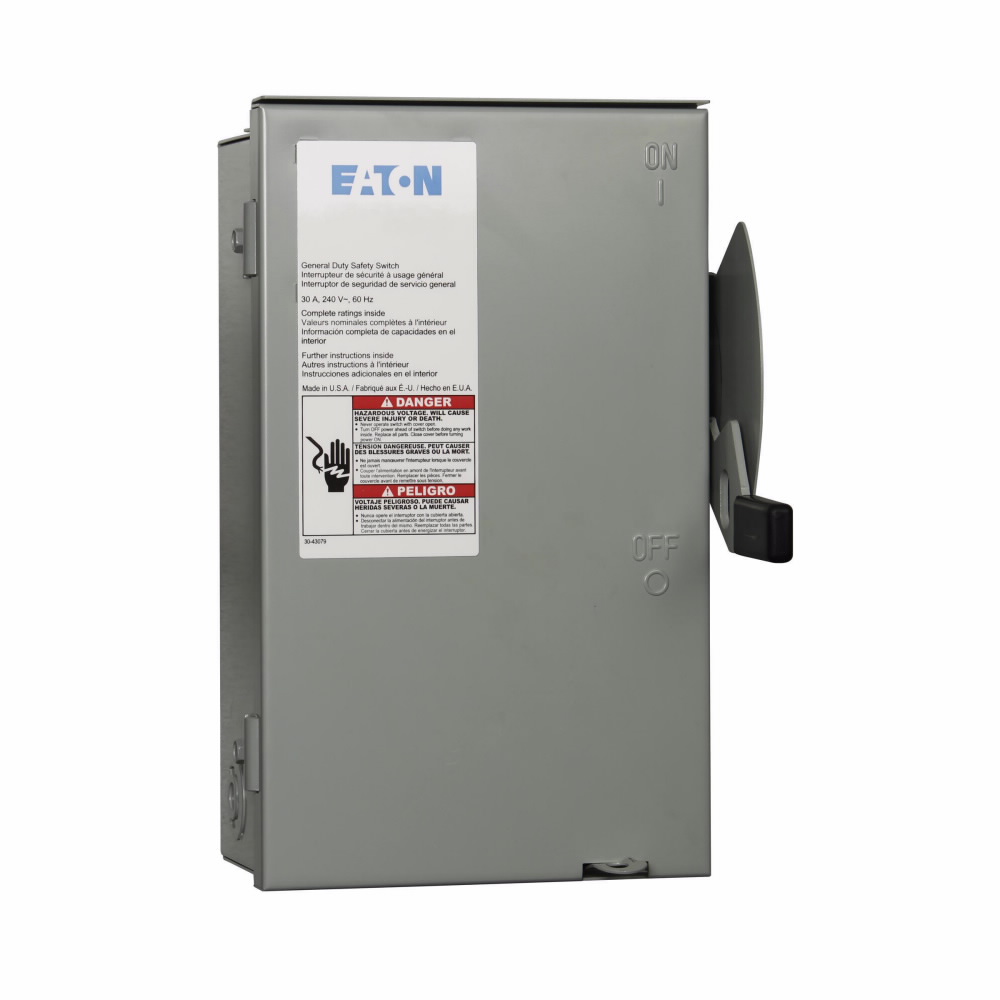

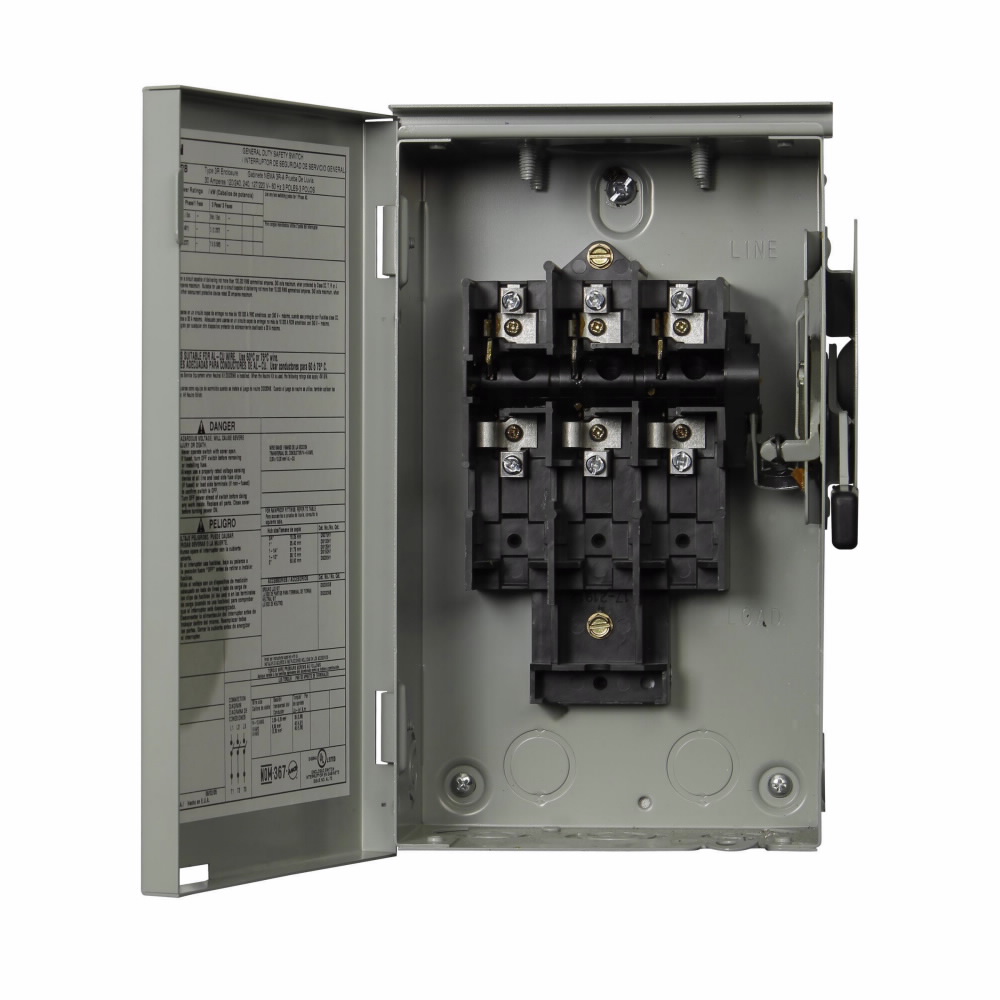

DG321URB – 30A/3P GD NF Safety Switch 240V Nema 3R
$
(per )
(Each)
$200.83
(Each)
$
(per 1)
Availability:
In Stock Locally
| Field | Value |
|---|---|
| Catalog Number | DG321URB |
| Vendor Code | CHD |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | DG321URB |
| Description | 30A/3P GD NF Safety Switch 240V Nema 3R |
| Product Type | Safety Switch |
| Type | Non-Fusible Safety Switch |
| Application | Power Distribution |
| Voltage Rating | 240 V ac |
| Current Rating | 30 A |
| Amperage Rating | 30 |
| Phases | 3 |
| Poles | 3 |
| Wires | 3 |
| Fusible/Non Fusible | Non Fusible |
| Switch Configuration | 3NO |
| Enclosure Type | NEMA 3R |
| Material | Painted Galvanized Steel |
| Power Rating | 7-1/2 HP |
| Dimensions (W x D x H) | 6.88 in x 6.88 in x 10.81 in |
| Overall Length | 6.38 in; 162.1 mm |
| Width | 6.88 in; 174.8 mm |
| Height | 10.81 in; 274.6 mm |
| Depth | 6.88 in |
| Weight | 6 lb; 2.724 kg |
| Weight per Unit | 6.2 lbs |
| Packaging | 1 per carton |
| Price | $200.83 (Each) |
| Minimum Order Quantity | 1 |
| Standards Met | UL Listed, NEC 230.62 (C) Compliant Barrier |
| Made in USA | Yes |
| Media | Yes |
| UPC/GTIN | 782113120287 / 00782113120287 |
| Category | Disconnects |
| Classification | General Duty Safety Switches – Non-Fusible |
| Brand | EATON CUTLER-HAMMER |
