(Each)
$141.14
(Each)
(per 1)
In Stock Locally
$141.14
| Field | Value |
|---|---|
| Catalog Number | DG322UGB |
| Vendor Code | CHD |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | DG322UGB |

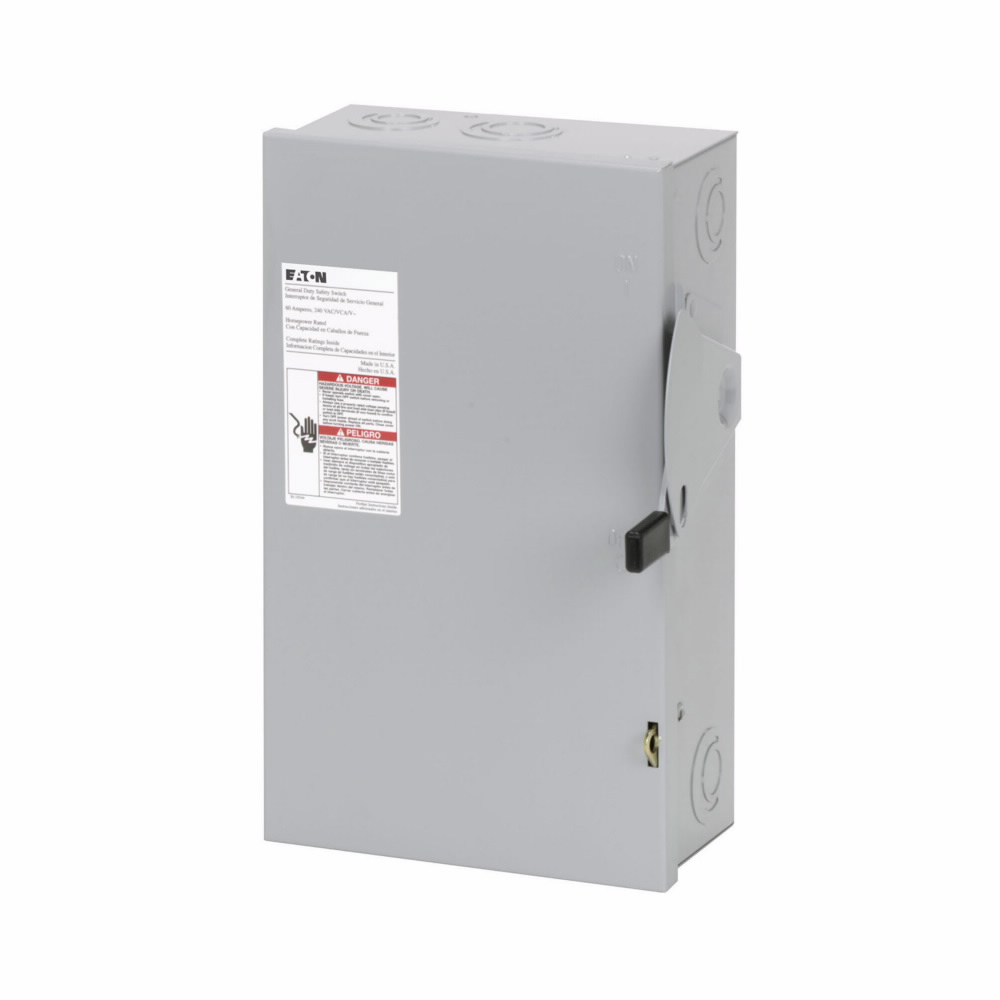

| Description | 60A/3P GD NF Safety Switch 240V Nema 1 |
| Product Type | Safety Switch |
| Type | Non-Fusible Safety Switch |
| Application | Power Distribution |
| Voltage Rating | 240 V AC |
| Current Rating | 60 A |
| Amperage Rating | 60 |
| Phases | 3 |
| Wires | 3 |
| Poles | 3 |
| Fusible/Non Fusible | Non Fusible |
| Switch Configuration | 3NO |
| Power Rating | 15 HP |
| Material | Painted Steel (Enclosure) |
| Enclosure Type | NEMA 1 |
| Dimensions (W x D x H) | 7.38 in x 8.69 in x 14.38 in |
| Overall Length | 8.69 in (220.7 mm) |
| Width | 7.38 in (187.5 mm) |
| Height | 14.38 in (365.3 mm) |
| Weight | 9 lb (4.086 kg) |
| Weight per Unit | 8.5 lbs/each |
| Minimum Order Quantity | 1 |
| Price | $141.14 (Each) |
| UPC/GTIN | 782113144306 / 00782113144306 |
| Standards Met | UL Listed, NEC 230.62 (C) Compliant Barrier |
| Made in USA | Yes |
| Media | Yes |
| Brand | EATON CUTLER-HAMMER |
| Category | DISCONNECTS |
| Classification | General Duty Safety Switches – Non-Fusible |
