(Each)
$805.76
(Each)
(per 1)
In Stock Locally
$805.76
| Field | Value |
|---|---|
| Catalog Number | DG324NGK |
| Vendor Code | CHD |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | DG324NGK |

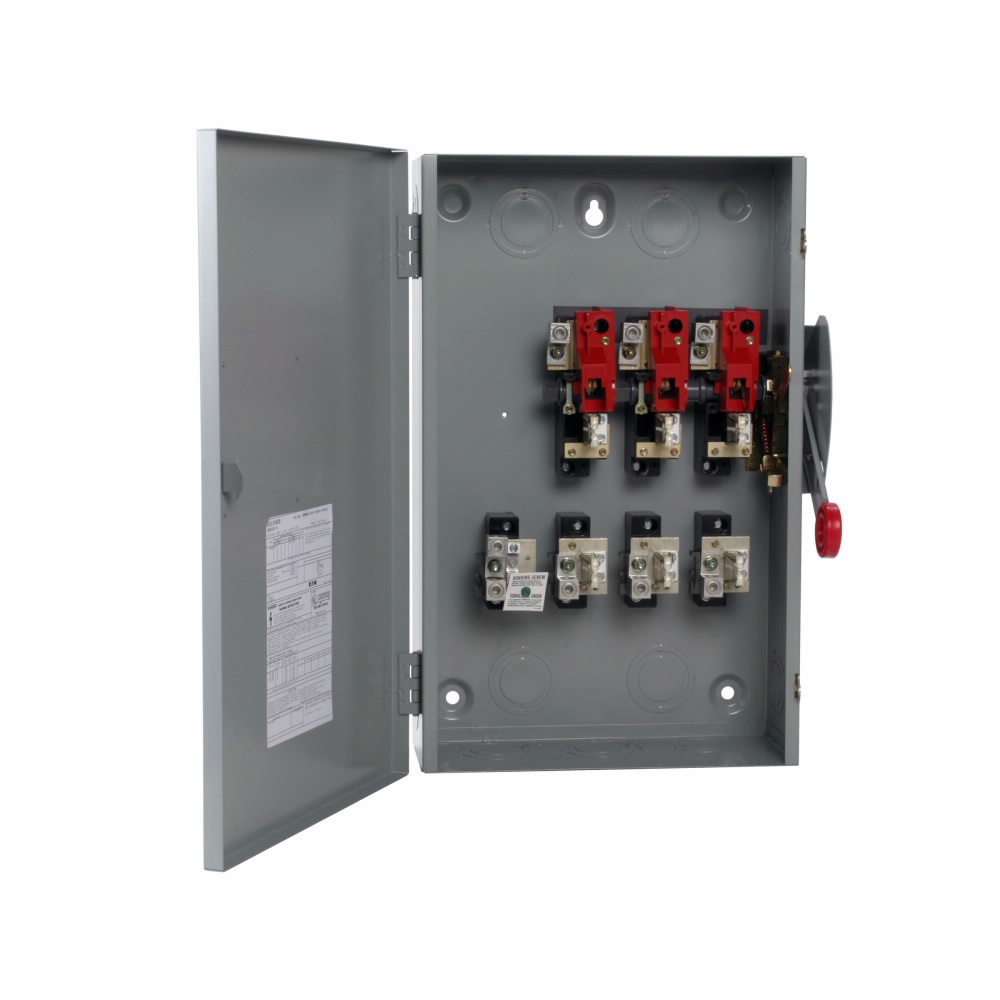

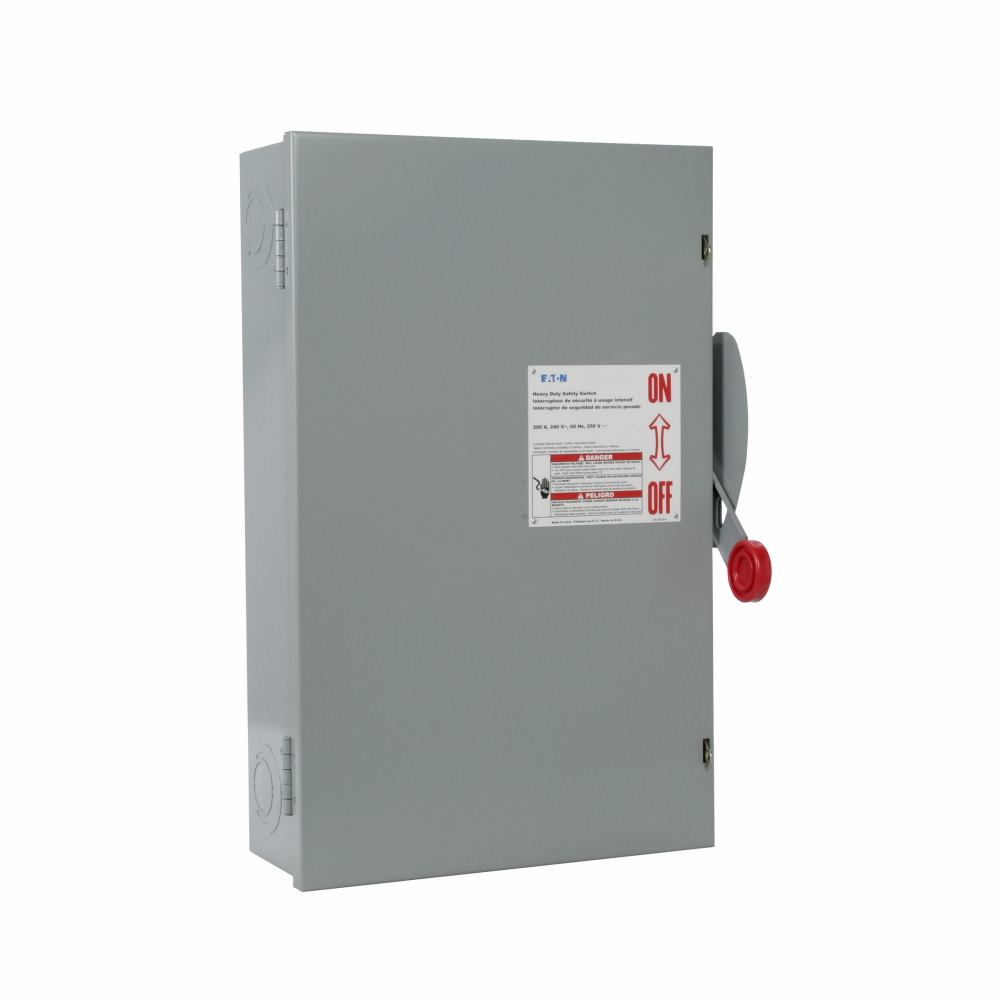

| Description | 200A/3P GD Fusible Safety Switch W/Neut 240V Nema1 |
| Product Type | Safety Switch |
| Type | Cartridge fuse safety switch |
| Application | Power Distribution |
| Voltage Rating | 240 V AC |
| Current Rating | 200 A |
| Amperage Rating | 200 |
| Poles | 3 |
| Wires | 4 |
| Power Rating | 4 W |
| Fuse Type | Class H Fuse |
| Fusible/Non Fusible | Fusible |
| Material | Painted Steel (Enclosure) |
| Enclosure Type | NEMA 1 |
| Dimensions (W x D x H) | 11.25 in x 11.25 in x 24.75 in |
| Overall Length | 16 in (406.4 mm) |
| Width | 11.25 in (285.8 mm) |
| Height | 24.75 in (628.7 mm) |
| Depth | 11.25 in |
| Weight | 48 lb (21.792 kg) |
| Weight per Unit | 48 lbs/each |
| Minimum Order Quantity | 1 |
| Price | $805.76 (Each) |
| UPC/GTIN | 782113213538 / 00782113213538 |
| Standards Met | UL Listed, NEC 230.62 (C) Compliant Barrier |
| Made in USA | Yes |
| Media | Yes |
| Brand | EATON CUTLER-HAMMER |
| Category | DISCONNECTS |
| Classification | General Duty Safety Switches – Fusible |
