(Each)
$1,121.26
(Each)
(per 1)
In Stock Locally
$1,121.26
| Catalog Number | DH363FRK |
|---|---|
| Vendor Code | CHD |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | DH363FRK |

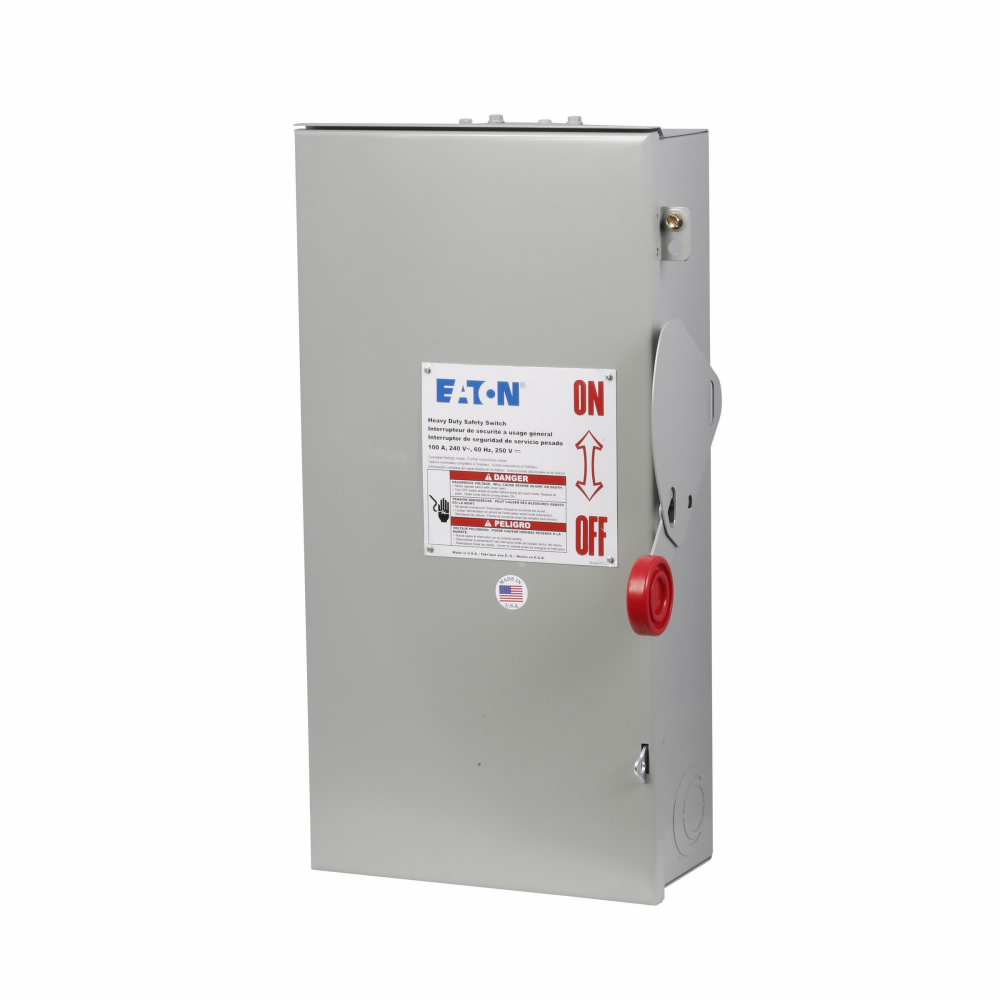

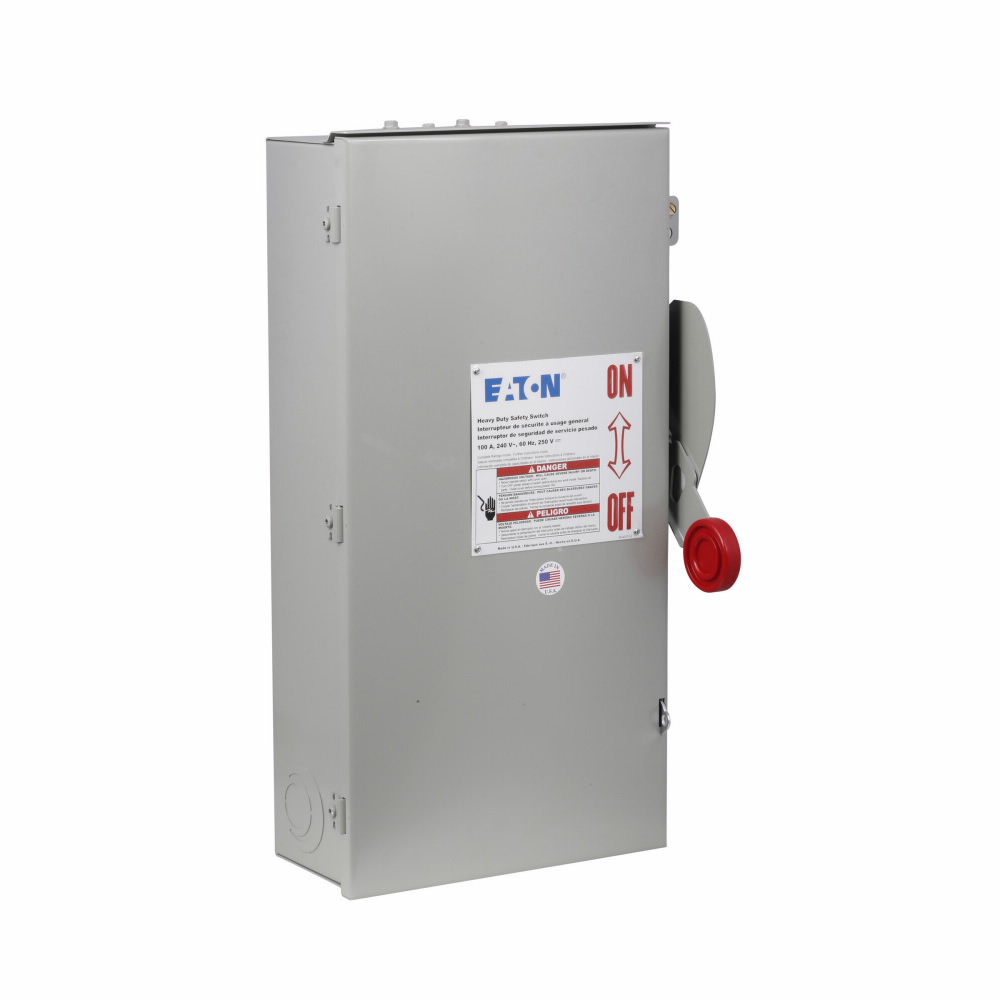

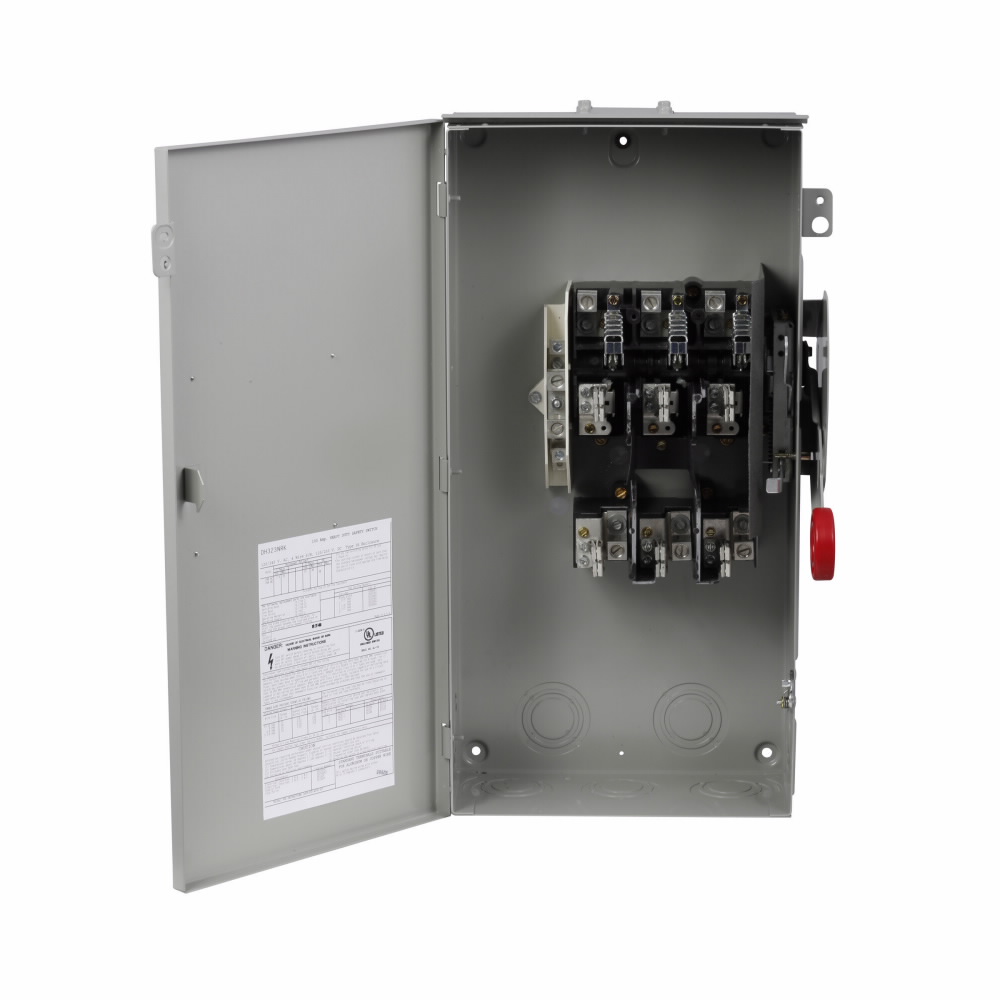

| Description | 100A/3P HD Fusible Safety Switch 600V Nema 3R |
| Long Description | Safety Switch, 100 A, 480 to 600 V Ac;250 V DC, 3 Pole, 3 Wire, Class H Fuse, Painted Galvanized Steel (Enclosure) Material, 11.13 In Overall Length, 10 In Overall Width, 21.69 In Overall Height, Fusible, 27 LB |
| Categories | Heavy Duty Safety Switches – Fusible Heavy Duty Safety Swit |
| Classification | Disconnects |
| UPC/GTIN | 782113206424 / 00782113206424 |
| Weight per Unit | 26 (lbs/each) |
| Minimum Order Quantity | 1 |
| Unit Price | $1,121.26 (Each) |
| Material | Painted Galvanized Steel (Enclosure) |
| Current Rating | 100 A |
| Voltage Rating | 480 to 600 V ac;250 V dc |
| Number of Wires | 3 |
| Amperage Rating | 100 |
| Poles | 3 |
| Overall Length | 11.13 in;282.7 mm |
| Width | 12.75 |
| Depth | 22.5 |
| Height | 9 |
| Product Type | Safety Switch |
| Extra Long Description | ETN DH363FRK 100A/3P HD Fusible Sft |
| Features | Eaton’s Heavy Duty Fusible Safety Switches offer manual open/close operation and overcurrent protection via field-installed fuses. Rated 100% load break/make. Built-in fuse pullers (NEMA 4X, 12 up to 200A). Knockouts on NEMA 1 and 3R (up to 200A). |
| Short Description | Safety Switch, 100 A, 2 Wires |
| Special Features | Fusible Without Neutral; Triple Padlocking; Interlocked Door; Visible Double Break Quick-Make, Quick-Break Rotary Blade K-Switch |
| Fuse Type | Class H Fuse |
| Enclosure Type | Nema 3R |
| Overall Width | 10 in;254 mm |
| Overall Height | 21.69 in;550.9 mm |
| Fusible/Non Fusible | Fusible |
| Standards Met | UL98 Listed |
| Made in USA | Yes |
| Media | Yes |
| Brand | EATON CUTLER-HAMMER |
| GTIN | 00782113206424 |
| UPC | 782113206424 |
| Category Description | DISCONNECTS |
| Type | Fusible Safety Switch |
| Weight | 27 lb;12.258 kg |
| Weight per Each | 26 |
| Carton | 1 |
| Application | Power Distribution |
| NEMA Rating | 3R |
| Standard | UL Listed |
