(Each)
$570.47
(Each)
(per 1)
In Stock Locally
$570.47
| Catalog Number | DH363UGK |
|---|---|
| Vendor Code | CHD |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | DH363UGK |

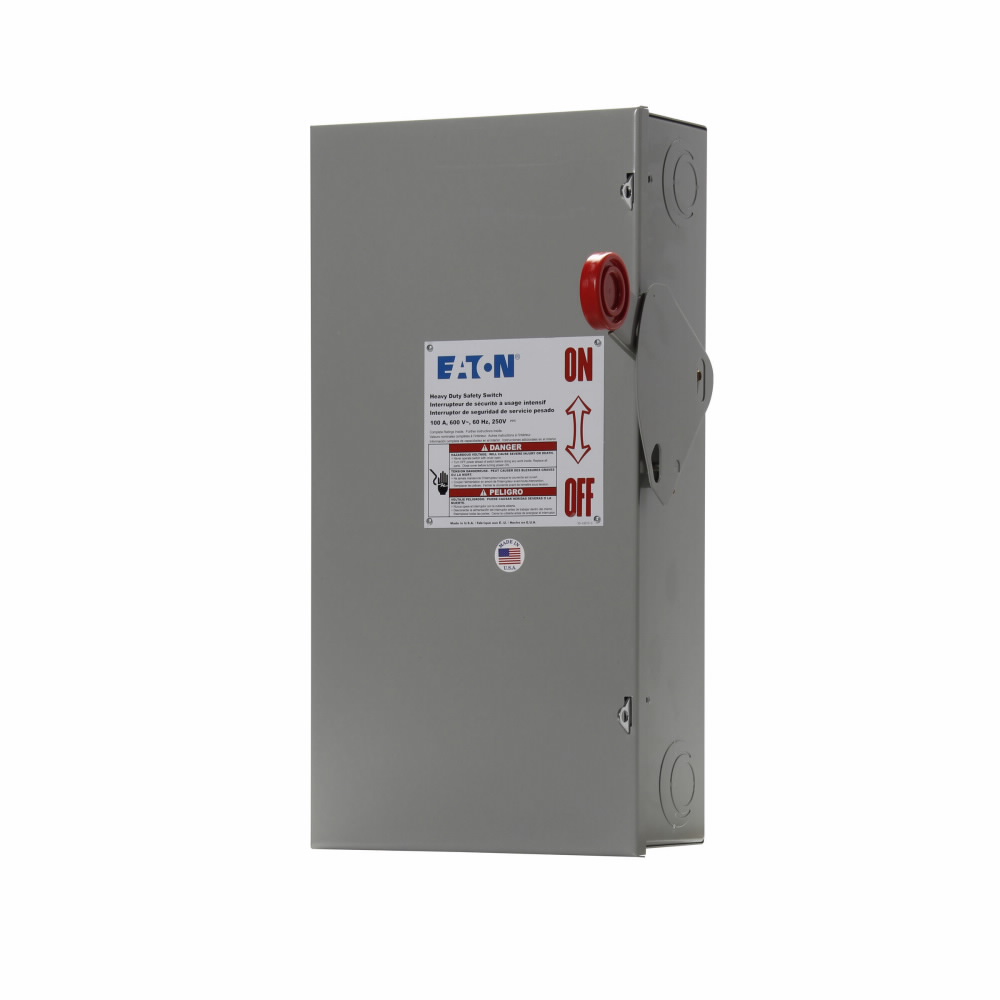

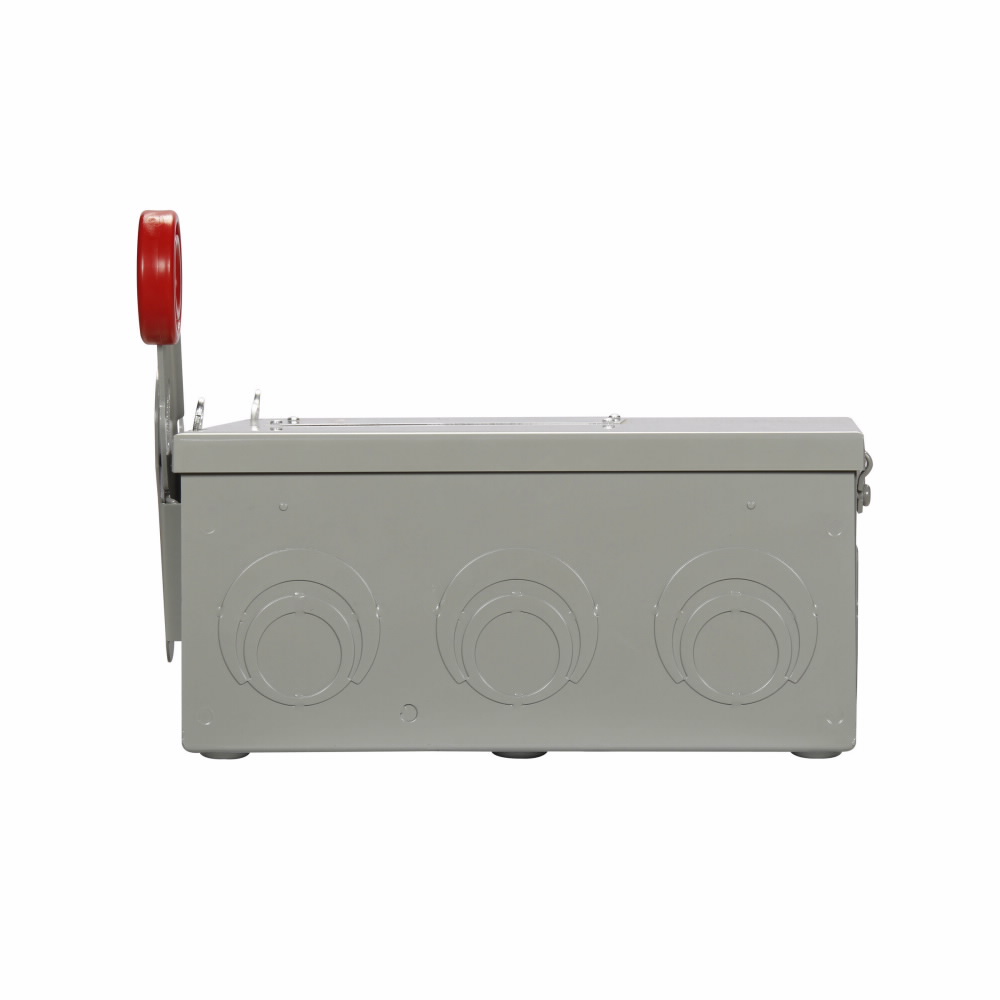

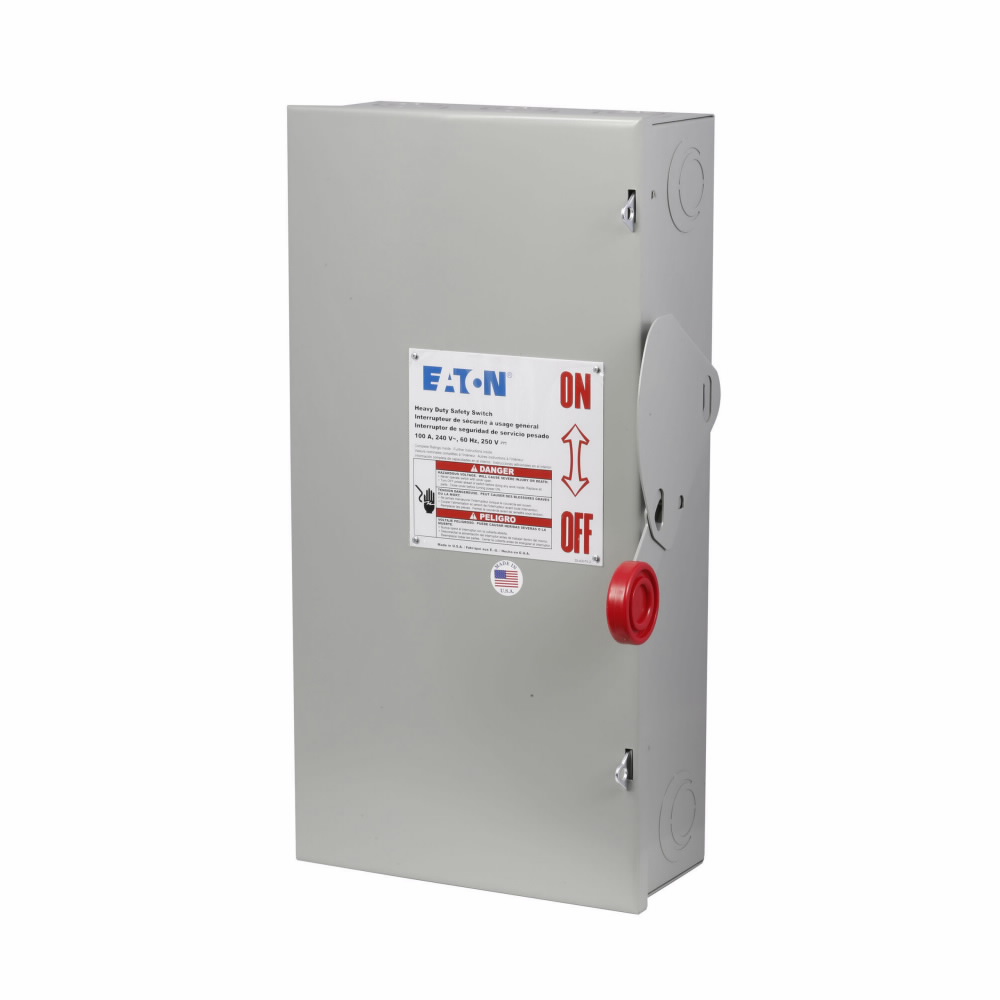

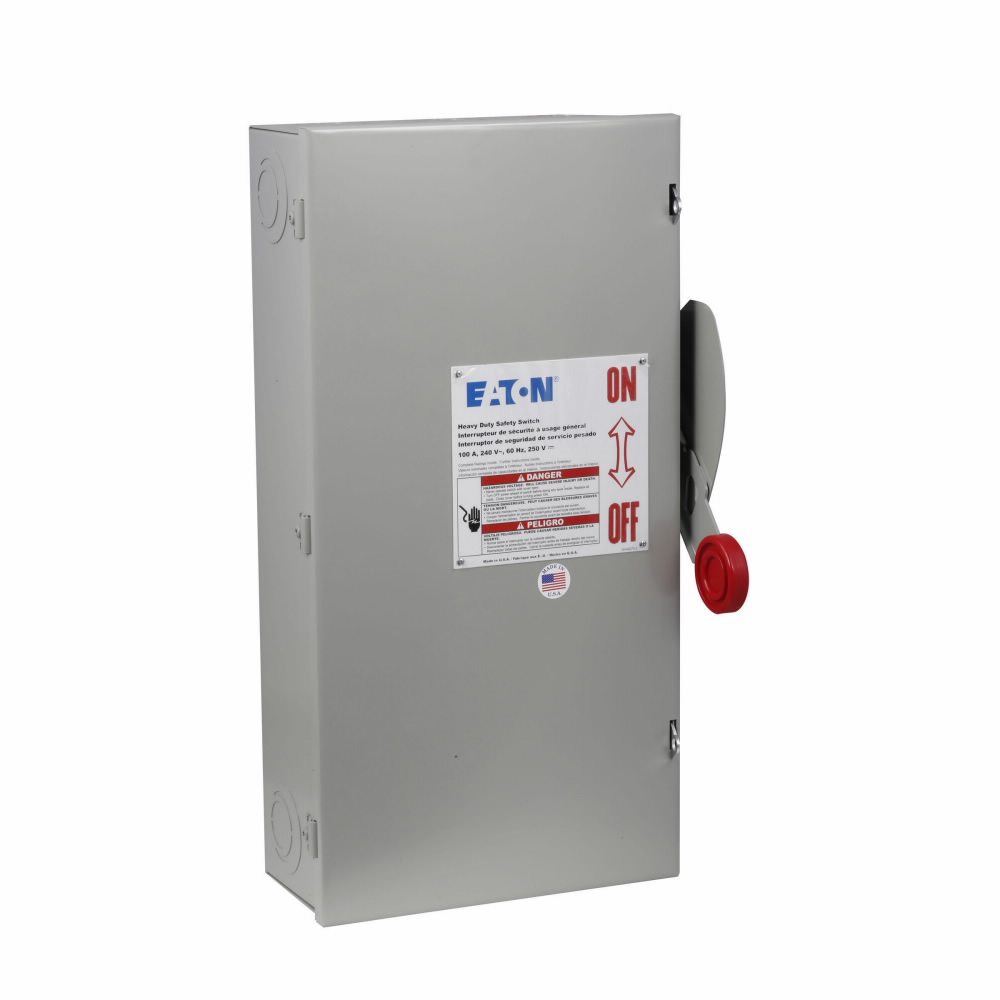

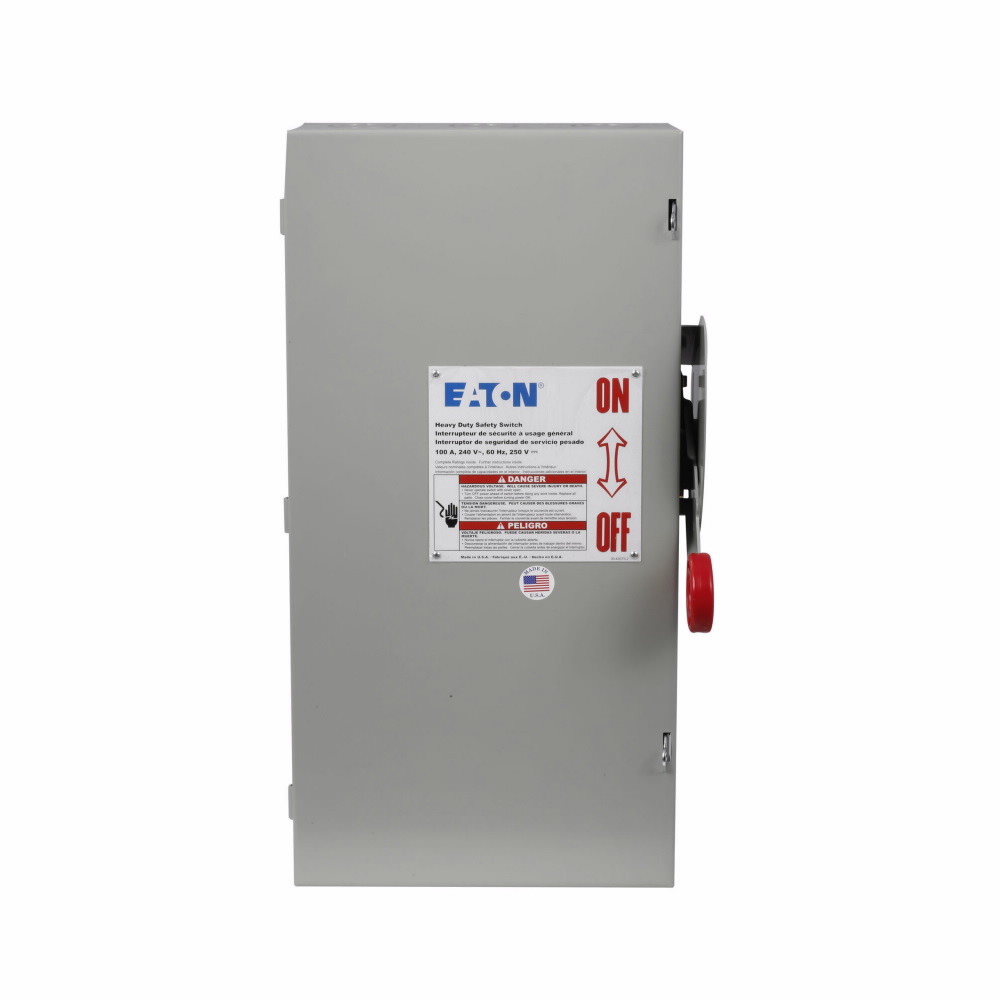

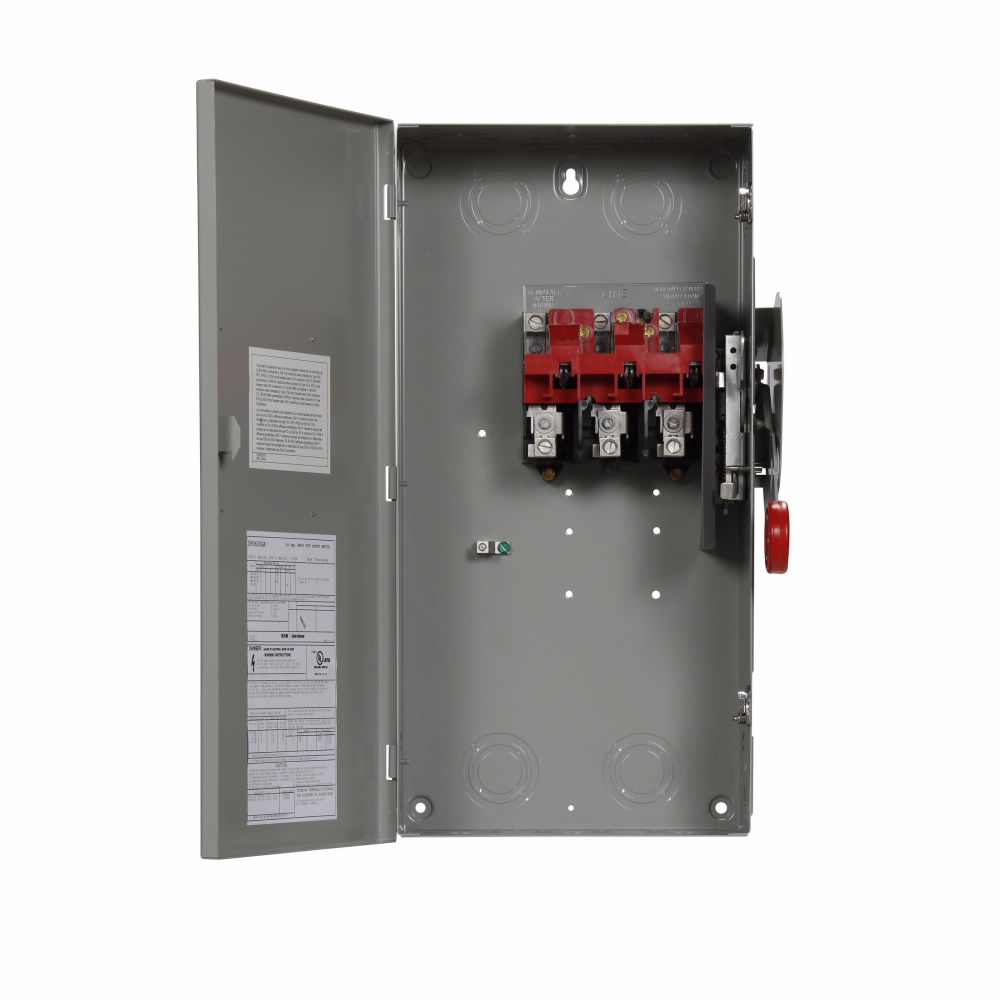

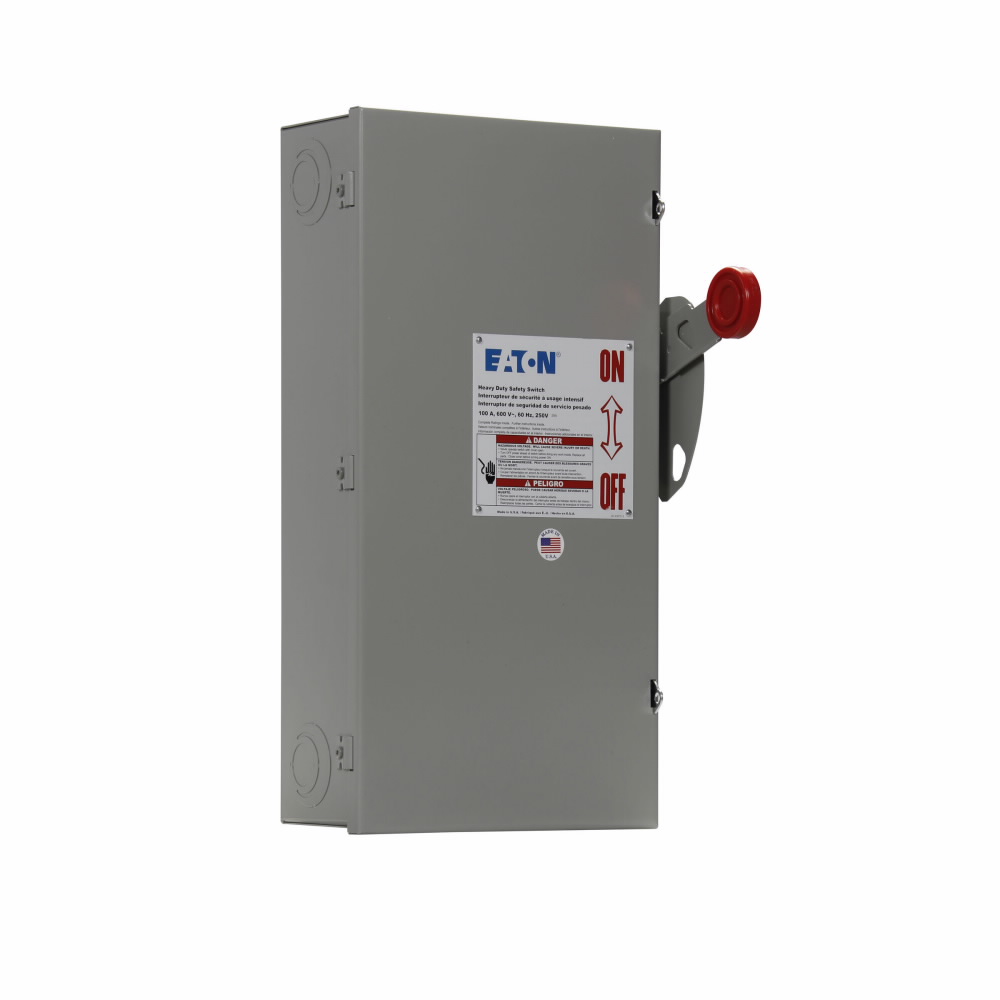

| Description | 100A/3P HD NF Safety Switch 600V Nema 1 |
| Long Description | Safety Switch, 100 A, 600 V ac, 3 Poles, 1/3 Phases, 3 Wires, Painted Steel (Enclosure) Material, Non Fusible, 11.13 in Overall Length, 10 in Overall Width, 21.69 in Overall Height, 22 lb |
| Categories | Heavy Duty Safety Switches – Non-Fusible |
| Classification | Disconnects |
| UPC/GTIN | 782113206455 / 00782113206455 |
| Weight per Unit | 20 (lbs/each) |
| Minimum Order Quantity | 1 |
| Unit Price | $570.47 (Each) |
| Material | Painted Steel (Enclosure) |
| Current Rating | 100 A |
| Voltage Rating | 600 V ac;240 V |
| Number of Phases | 1;3 |
| Number of Wires | 3 |
| Amperage Rating | 100 |
| Poles | 3 |
| Overall Length | 11.13 in;282.7 mm |
| Width | 11.84 |
| Height | 21.68 |
| Depth | 9.89 |
| Product Type | Safety Switch |
| Extra Long Description | ETN DH363UGK 100A/3P HD NF Sfty Sw |
| Features | Eaton’s Heavy Duty Non-fusible Safety Switches provide a means to manually connect or disconnect the load from the source. 100% load-break/make rated. Suitable for service entrance. Enclosure options: NEMA 1, 3R, 12, 4, 4X. Range: 30A to 1200A. |
| Short Description | Safety Switch, 100 A, 600 V, 3 Poles, Non Fusible, NEMA 3R |
| Special Features | Triple Padlocking; Interlocked Door; Visible Double Break Quick-Make; Quick-Break Rotary Blade K-Switch Mechanism |
| Enclosure Type | Nema 1 |
| Fusible/Non Fusible | Non Fusible |
| Overall Width | 10 in;254 mm |
| Overall Height | 21.69 in;550.9 mm |
| Standards Met | UL98 Listed; UL 50 Listed |
| Made in USA | Yes |
| Media | Yes |
| Brand | EATON CUTLER-HAMMER |
| GTIN | 00782113206455 |
| UPC | 782113206455 |
| Category Description | DISCONNECTS |
| Type | Non-Fusible Safety Switch |
| Weight | 22 lb; 9.988 kg |
| Weight per Each | 20 |
| Carton | 1 |
| Application | Power Distribution |
| NEMA Rating | 1 |
| Standard | UL Listed, NEC 230.62 (C) Compliant Barrier |
