| Quick Specs | |
| Catalog Number | DH364FGK Vendor Code CHD |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | DH364FGK |

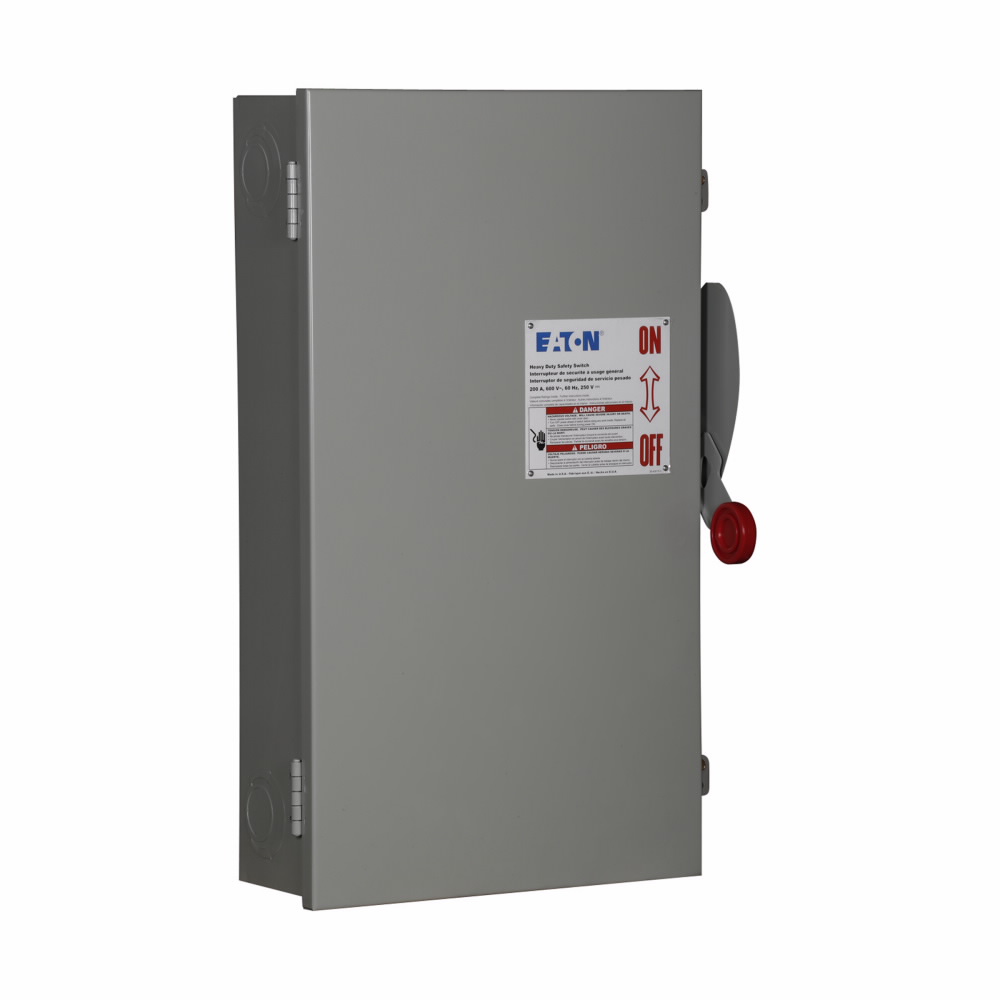

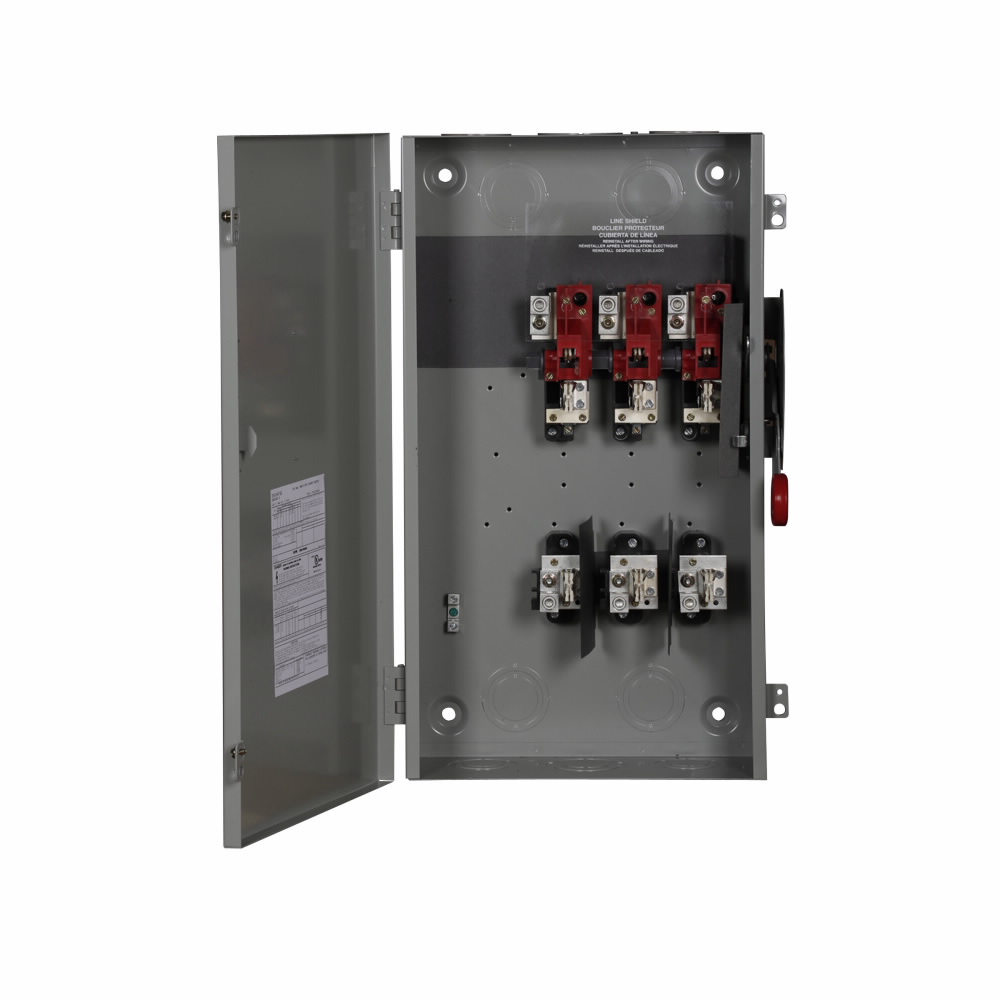

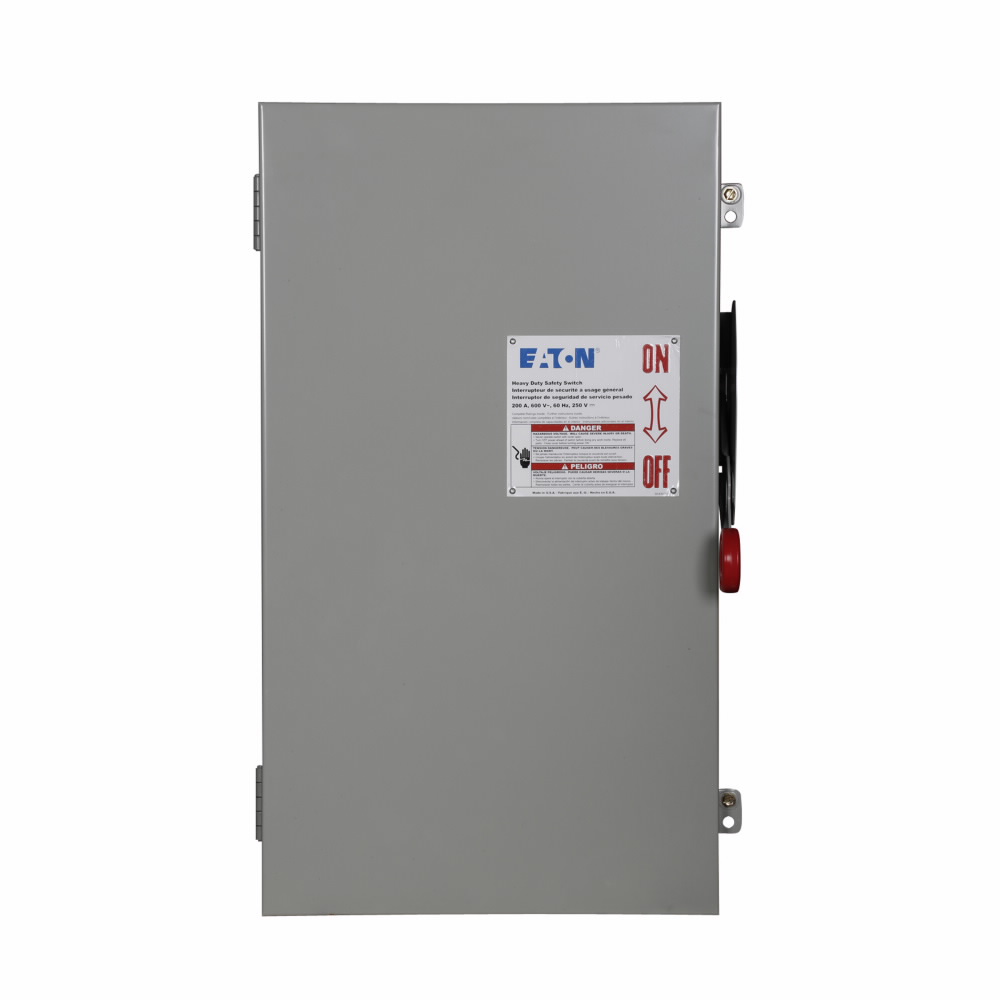

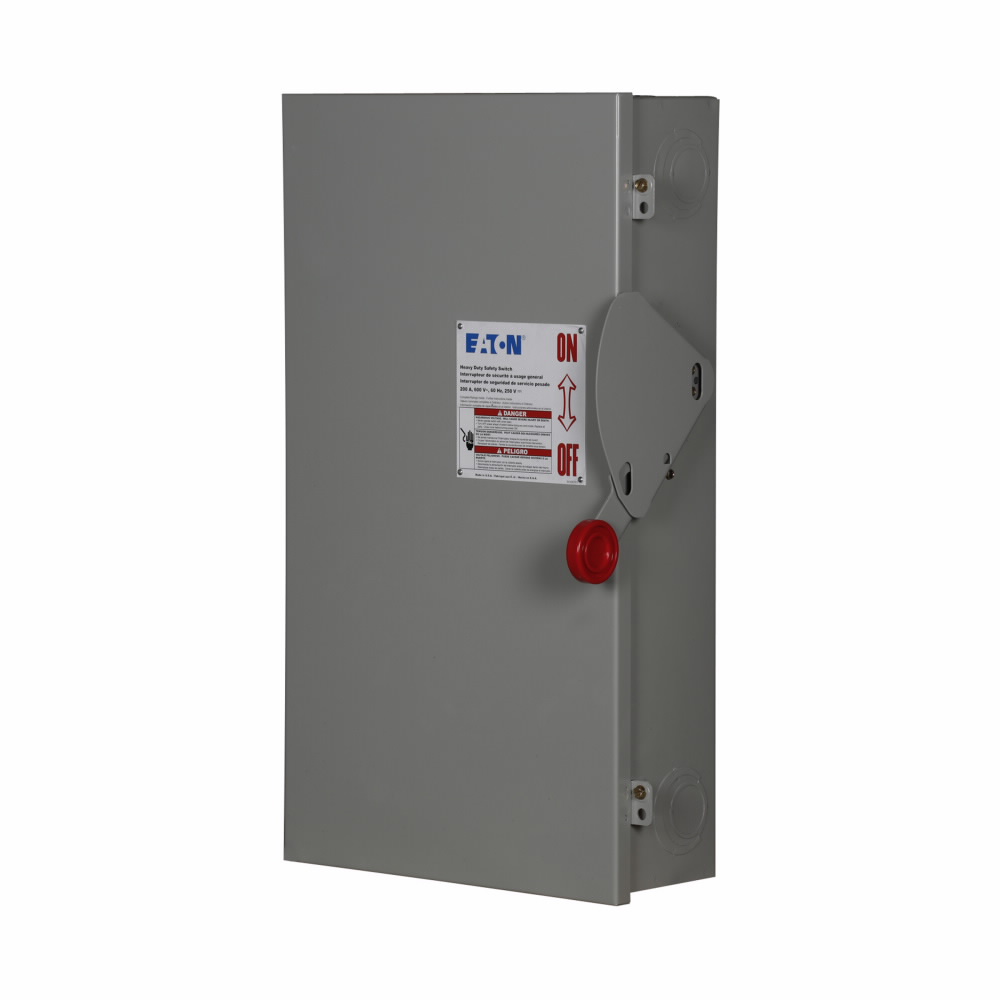

| Description | 200A/3P HD Fusible Safety Switch 600V Nema 1 |
| Details | Safety Switch, 200 A, 480 to 600 V Ac;250 V DC, 3 Poles, 3 Wires, Class H Fuse, Painted Steel (Enclosure) Material, 16 In Overall Length, 11.25 In Overall Width, 27.66 In Overall Height, Fusible, 46 LB |
| Slang Terms | |
| Categories | Heavy Duty Safety Switches – Fusible Heavy Duty Safety Swit |
| Classification | Disconnects |
| UNSPSC | N/A |
| UPC/GTIN | 782113206783 / 00782113206783 |
| Weight per unit | 36.5 (lbs/each) |
| Price & Packaging | |
| Minimum Order Quantity | 1 |
| Unit | $1,177.59 (Each) |
| Features | |
| Material | Painted Steel (Enclosure) |
| Current Rating | 200 A |
| Voltage Rating | 480 to 600 V ac;250 V dc |
| Number of Wires | 3 |
| Amperage Rating | 200 |
| Poles | 3 |
| Dimensions and Weight | |
| Overall Length | 16 in;406.4 mm |
| Width | 18 |
| Depth | 30 |
| Height | 9.5 |
| Descriptions | |
| Product Type | Safety Switch |
| Long Description | Safety Switch, 200 A, 480 to 600 V ac;250 V dc, 3 Poles, 3 Wires, Class H Fuse, Painted Steel (Enclosure) Material, 16 in Overall Length, 11.25 in Overall Width, 27.66 in Overall Height, Fusible, 46 lb |
| Features | Eaton’s Heavy Duty Fusible Safety Switches offer the ability to manually open and close a circuit and provide over current protection by means of field-installed fuses. Switches are 100% load break and 100% load make rated and are suitable for service entrance use. Fuse pullers are built in on NEMA 4X and NEMA 12 enclosures through 200 amperes. Tangential knockouts on NEMA 1 and NEMA 3R enclosures through 200A. |
| Short Description | Safety Switch, 200 A, 3 Wires, 600V, 3 Poles, NEMA 1 |
| Special Features | Fusible Without Neutral;Triple Padlocking Capability;Mechanically Interlocked Door;Visible Double Break Quick-Make, Quick-Break Rotary Blade K-Switch Mechanism |
| Description | 200A/3P HD FUSIBLE SAFETY SWITCH 600V NEMA 1 |
| Extra Long Description | ETN DH364FGK 200A/3P HD Fusible Sft |
| Additional Information | |
| Enclosure Type | Nema 1 |
| Overall Width | 11.25 in;285.8 mm |
| Overall Height | 27.66 in;702.5 mm |
| Fuse Type | Class H Fuse |
| Fusible/Non Fusible | Fusible |
| Standards Met | UL98 Listed |
| Made in USA | yes |
| Manufacturer Information | |
| Brand | EATON CUTLER-HAMMER |
| Manufacturers Part Number | DH364FGK |
| GTIN | 00782113206783 |
| UPC | 782113206783 |
| Taxonomies, Classifications, and Categories | |
| Category Description | DISCONNECTS |
| Type | Single-throw fused safety switch |
| Packaging | |
| Weight | 46 lb;20.884 kg |
| Weight per each | 36.5 |
| Carton | 1 |
| Uses, Certifications, and Standards | |
| Application | Power Distribution |
| Standard | UL Listed |
