| Quick Specs | |
| Catalog Number | DH364URK Vendor Code CHD |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | DH364URK |

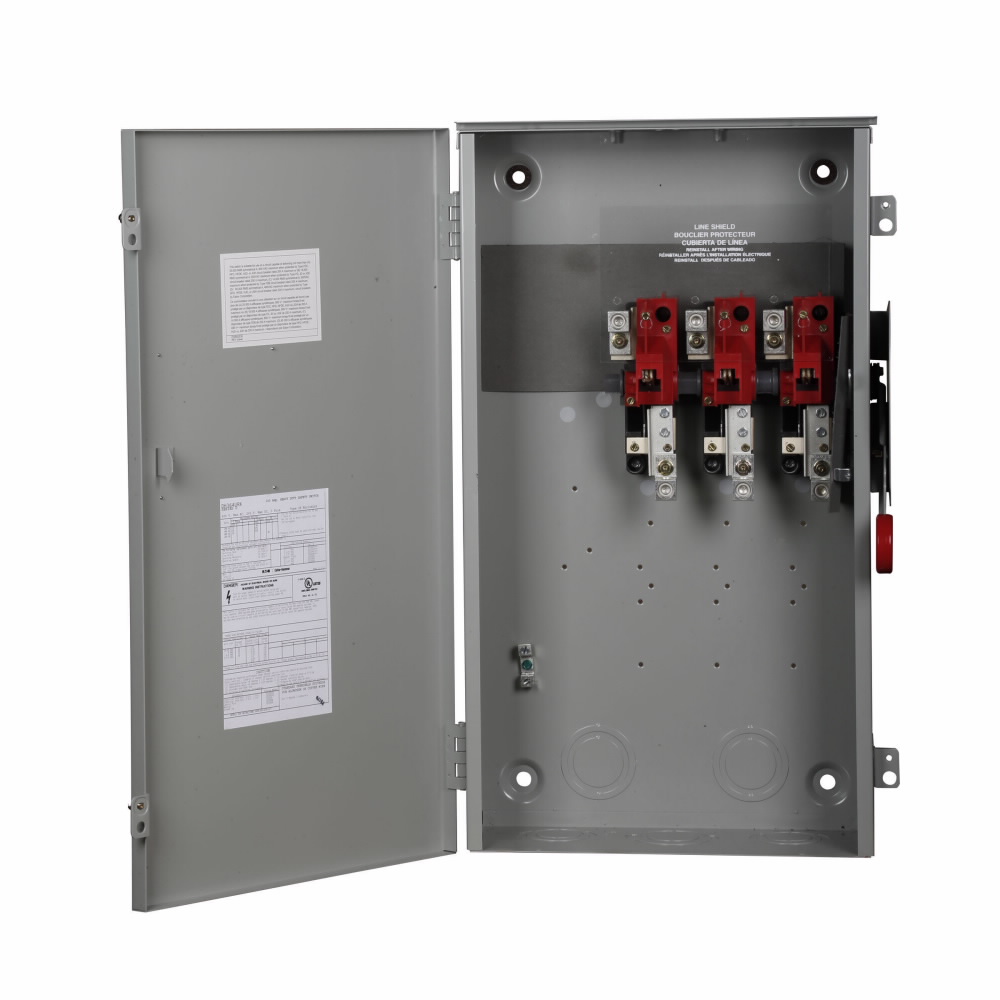

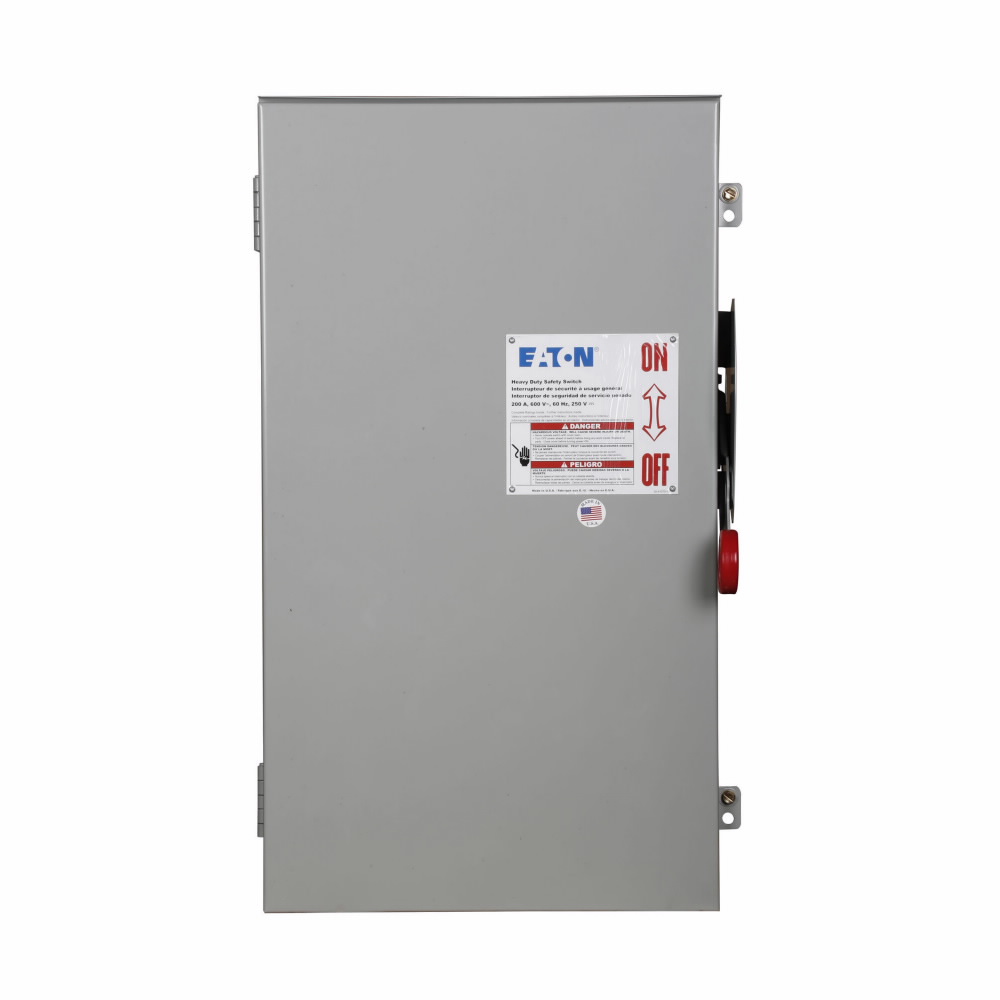

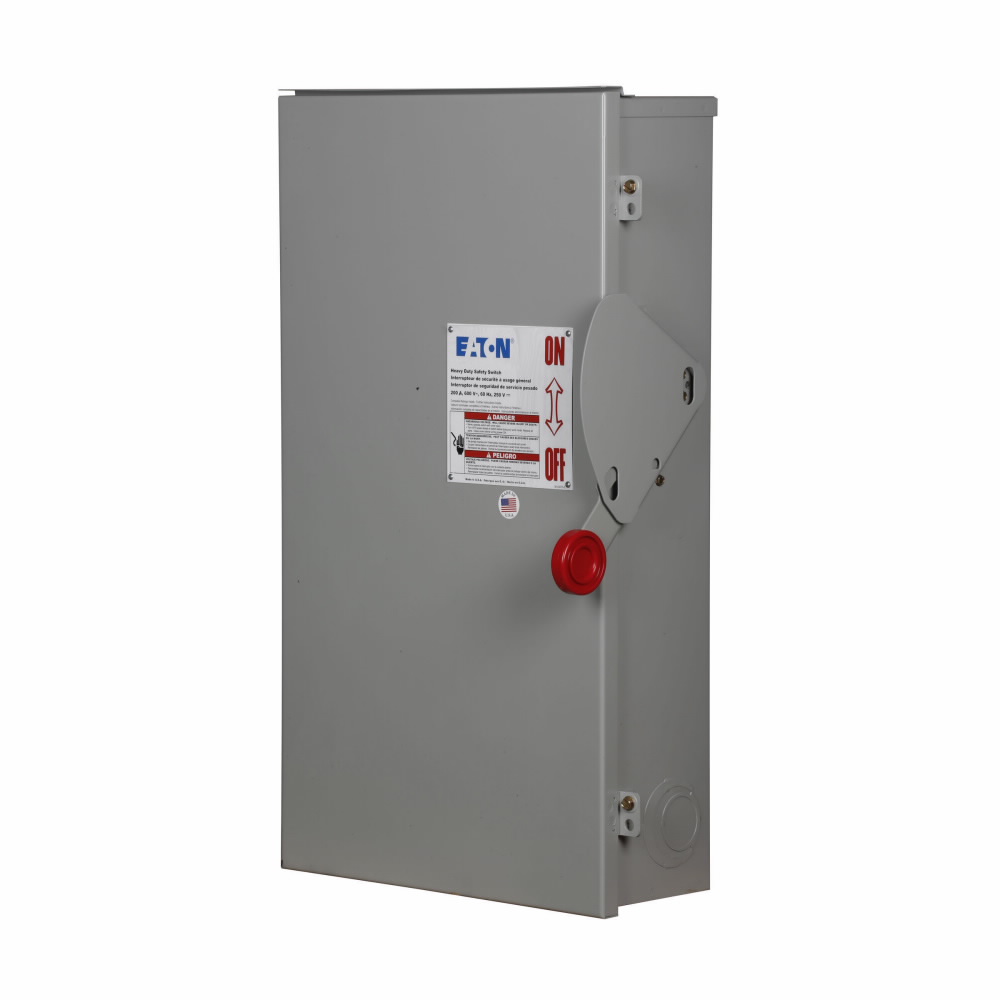

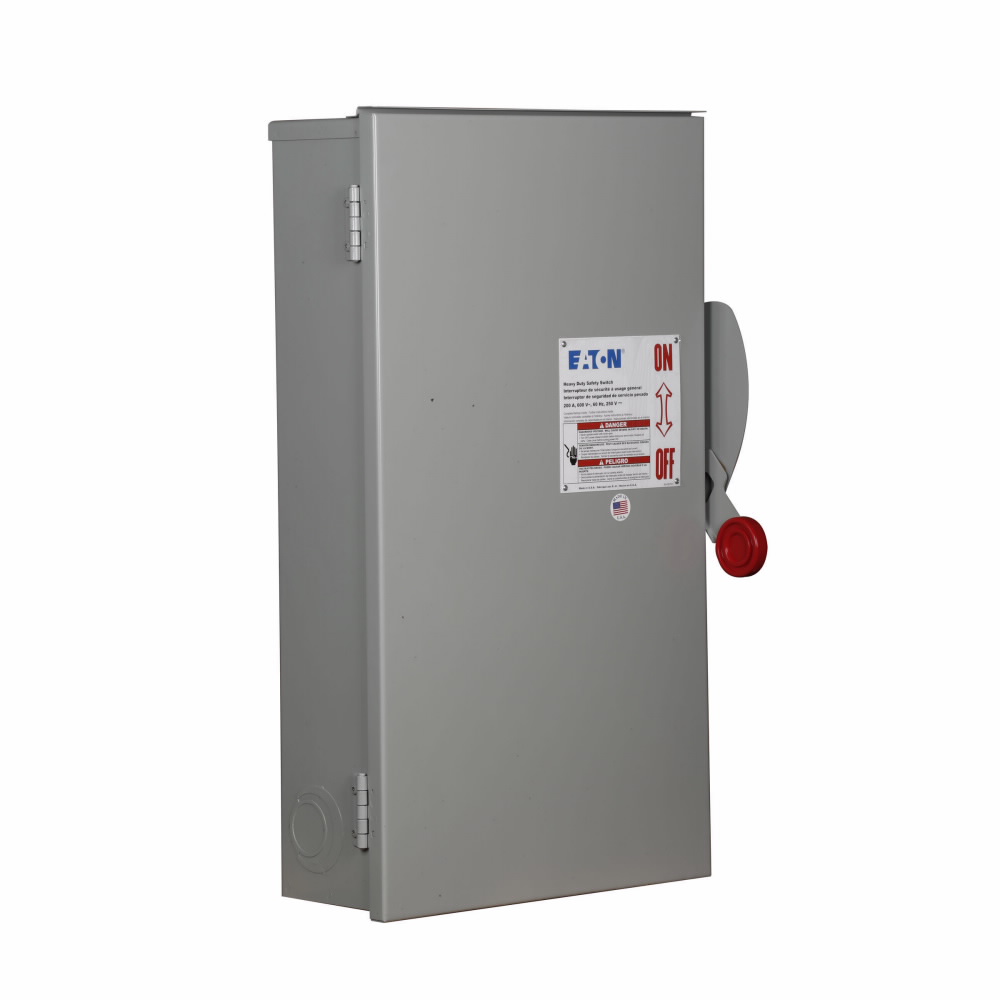

| Description | 200A/3P HD NF Safety Switch 600V Nema 3R |
| Details | Safety Switch, 200 A, 600 V Ac, 3 Poles, 1/3 Phases, 3 Wires, Painted Galvanized Steel (Enclosure) Material, Non Fusible, 16 In Overall Length, 11.25 In Overall Width, 27.66 In Overall Height, 46 LB |
| Slang Terms | |
| Categories | Heavy Duty Safety Switches – Non-Fusible Heavy Duty Safety |
| Classification | Disconnects |
| UNSPSC | N/A |
| UPC/GTIN | 782113206813 / 00782113206813 |
| Weight per unit | 46 (lbs/each) |
| Price & Packaging | |
| Minimum Order Quantity | 1 |
| Unit | $1,073.71 (Each) |
| Features | |
| Current Rating | 200 A |
| Voltage Rating | 600 V ac;240 V |
| Number of Phases | 1;3 |
| Number of Wires | 3 |
| Material | Painted Galvanized Steel (Enclosure) |
| Amperage Rating | 200 |
| Poles | 3 |
| Dimensions and Weight | |
| Overall Length | 16 in;406.4 mm |
| Depth | 11.25 |
| Width | 16 |
| Height | 27.63 |
| Descriptions | |
| Product Type | Safety Switch |
| Long Description | Safety Switch, 200 A, 600 V ac, 3 Poles, 1/3 Phases, 3 Wires, Painted Galvanized Steel (Enclosure) Material, Non Fusible, 16 in Overall Length, 11.25 in Overall Width, 27.66 in Overall Height, 46 lb |
| Features | Eaton’s Heavy Duty Non-fusible Safety Switches provide a means to manually connect or disconnect the load from the source. The heavy duty non-fusible safety switch is available in a variety of enclosures including NEMA 1, 3R, 12, 4, and 4X. Switches are 100% load-break and 100% load-make rated and are suitable for service entrance use. Available from 30A to 1200A. |
| Short Description | Safety Switch, 200 A, 600 VAC;240 V |
| Special Features | Triple Padlocking Capability;Mechanically Interlocked Door;Visible Double Break Quick-Make;Quick-Break Rotary Blade K-Switch Mechanism |
| Description | 200A/3P HD NF SAFETY SWITCH 600V NEMA 3R |
| Extra Long Description | ETN DH364URK 200A/3P HD NF Sfty Sw |
| Additional Information | |
| Media | Yes |
| Enclosure Type | Nema 3R |
| Fusible/Non Fusible | Non Fusible |
| Overall Width | 11.25 in;285.8 mm |
| Overall Height | 27.66 in;702.5 mm |
| Standards Met | UL98 Listed;UL 50 Listed |
| Made in USA | yes |
| Manufacturer Information | |
| Brand | EATON CUTLER-HAMMER |
| Manufacturers Part Number | DH364URK |
| GTIN | 00782113206813 |
| UPC | 782113206813 |
| Taxonomies, Classifications, and Categories | |
| Category Description | DISCONNECTS |
| Type | Non-Fusible Safety Switch |
| Packaging | |
| Weight | 46 lb;20.884 kg |
| Weight per each | 46 |
| Carton | 1 |
| Uses, Certifications, and Standards | |
| Application | Power Distribution |
| NEMA Rating | 3R |
| Standard | UL Listed,NEC 230.62 (C) Compliant Barrier |
