(Each)
$1,671.25
(Each)
(per 1)
In Stock Locally
$1,671.25
| Quick Specs | |
| Catalog Number | DT224URKNPS Vendor Code CHD |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | DT224URK-NPS |

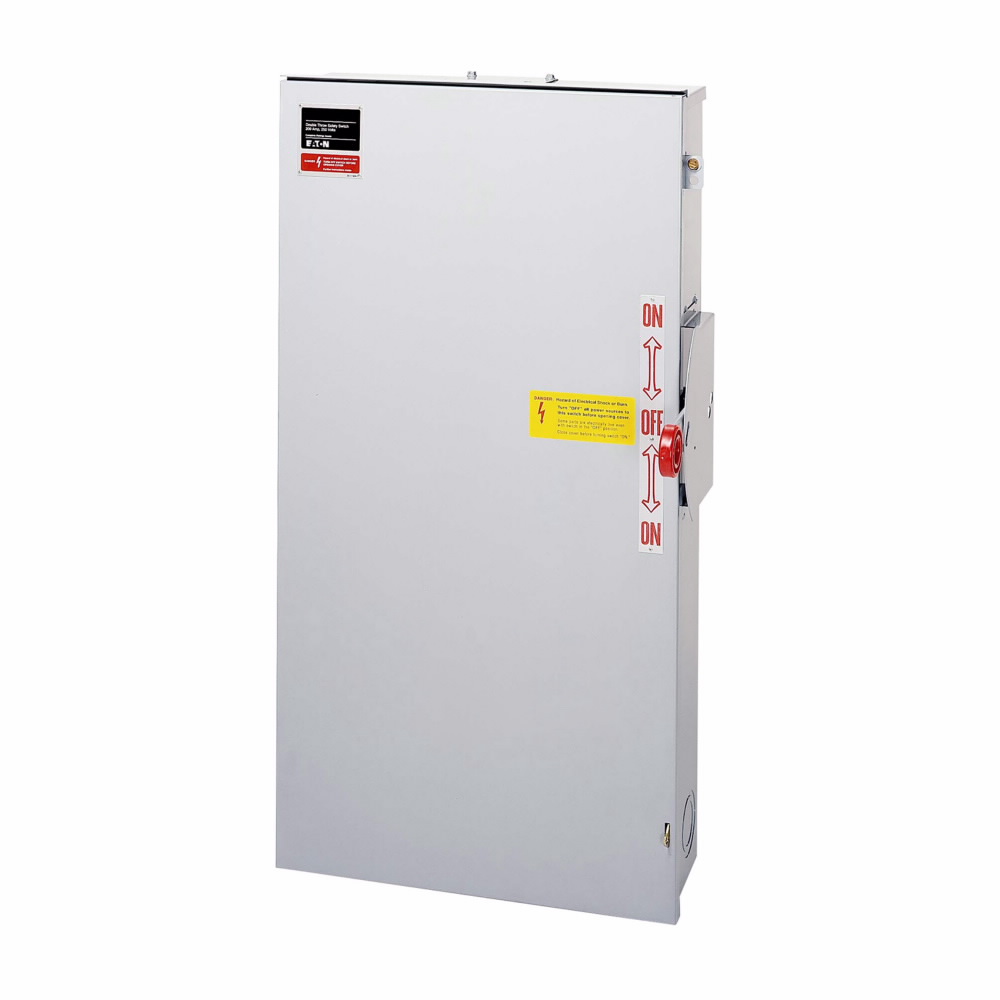

| Description | 200A/2P GD Double Throw NF Switch W/Neut 240V N3R |
| Details | Safety Switch, 200 A, 240 V Ac;250 V DC, 2 Poles, 1 Phase, 3 Wires, 15 HP, Painted Galvanized Steel (Enclosure) Material, Non Fusible, 80 LB |
| Slang Terms | |
| Categories | Double Throw Safety Switches – Non-Fusible Double Throw Safet |
| Classification | Double Throw Switches (DT Series) |
| UNSPSC | N/A |
| UPC/GTIN | 782114229262 / 00782114229262 |
| Weight per unit | 80 (lbs/each) |
| Price & Packaging | |
| Minimum Order Quantity | 1 |
| Unit | $1,671.25 (Each) |
| Features | |
| Current Rating | 200 A |
| Voltage Rating | 240 V ac;250 V dc |
| Number of Phases | 1 |
| Number of Wires | 3 |
| Material | Painted Galvanized Steel (Enclosure) |
| Poles | 2 |
| Amperage Rating | 200 |
| Dimensions and Weight | |
| Width | 19.56 |
| Depth | 37.25 |
| Height | 9.5 |
| Descriptions | |
| Long Description | Safety Switch, 200 A, 240 V ac;250 V dc, 2 Poles, 1 Phase, 3 Wires, 15 HP, Painted Galvanized Steel (Enclosure) Material, Non Fusible, 80 lb |
| Short Description | 200 A 240V 2PDT NEMA 3R DISC |
| Product Type | Safety Switch |
| Extra Long Description | ETN DT224URK-NPS 200A/2P GD DT NF S |
| Features | General duty safety switches are used in residential and commercial applications. They are suitable for light duty motor circuits and service entrance applications. Fusible (plug or cartidge) and non-fusible switches are available. |
| Description | 200A/2P GD DOUBLE THROW NF SWITCH W/NEUT 240V N3R |
| Additional Information | |
| Power Rating | 15 hp |
| Enclosure Type | Nema 3R |
| Fusible/Non Fusible | Non Fusible |
| Standards Met | UL Listed |
| Made in USA | yes |
| Media | Yes |
| Manufacturer Information | |
| Brand | EATON CUTLER-HAMMER |
| Manufacturers Part Number | DT224URK-NPS |
| GTIN | 00782114229262 |
| UPC | 782114229262 |
| Taxonomies, Classifications, and Categories | |
| Category Description | DOUBLE THROW SWITCHES (DT Series) |
| Type | Double-throw safety switch |
| Packaging | |
| Weight | 80 lb |
| Weight per each | 80 |
| Carton | 1 |
| Uses, Certifications, and Standards | |
| Application | Power Distribution |
| Standard | UL Listed |
