(Each)
$8,931.00
(Each)
(per 1)
In Stock Locally
$8,931.00
| Quick Specs | |
| Catalog Number | DT364URK Vendor Code CHD |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | DT364URK |

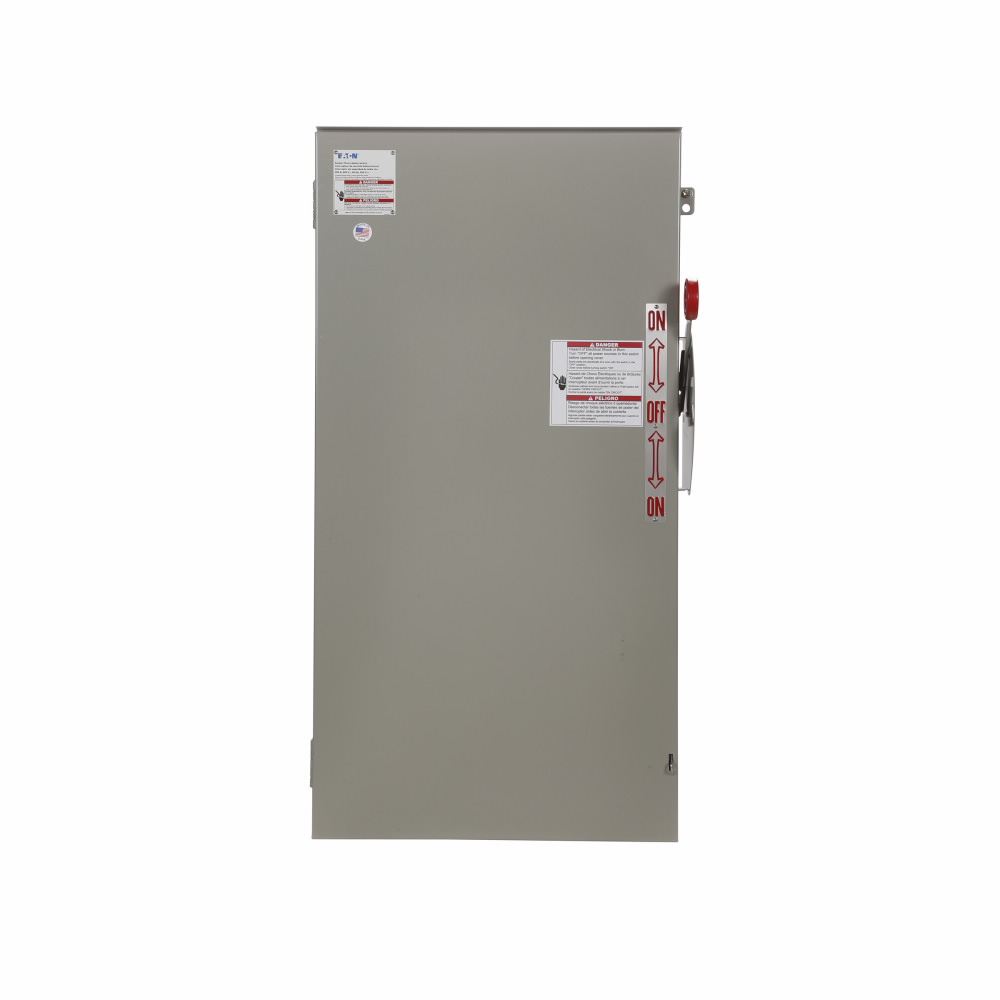

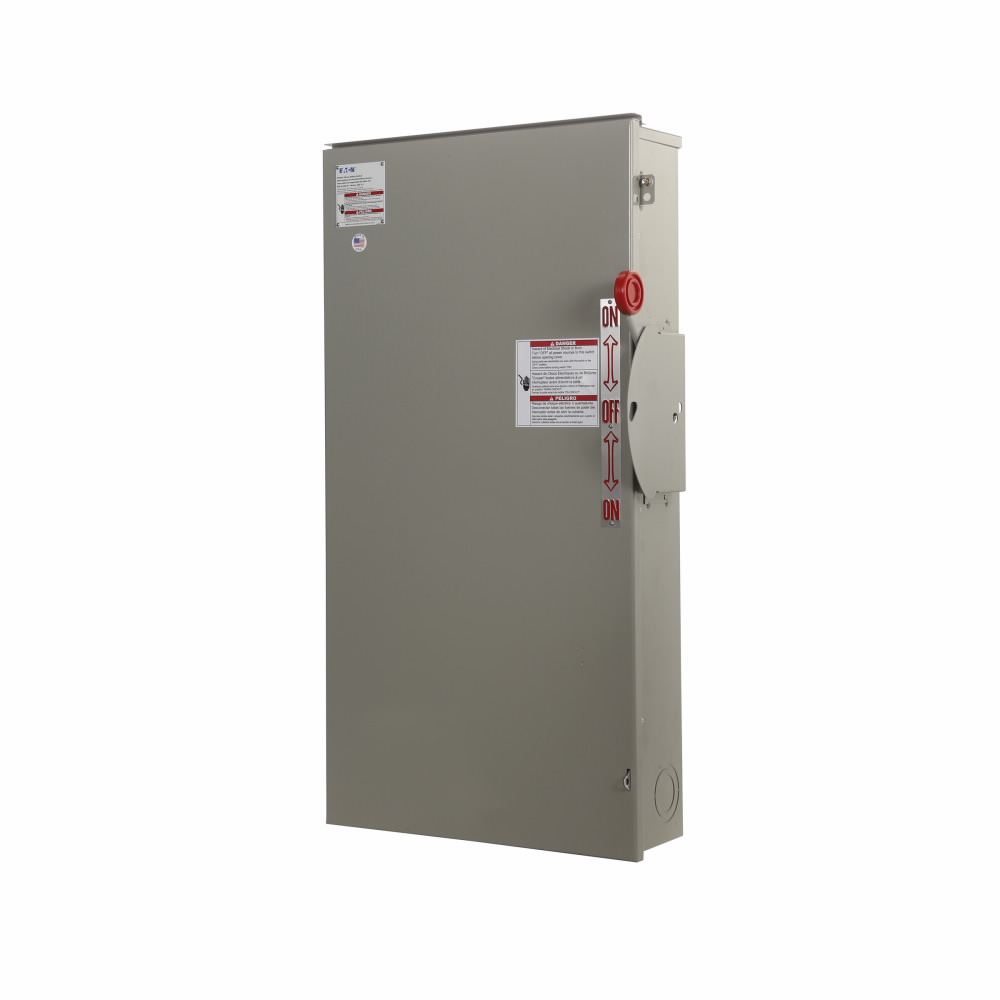

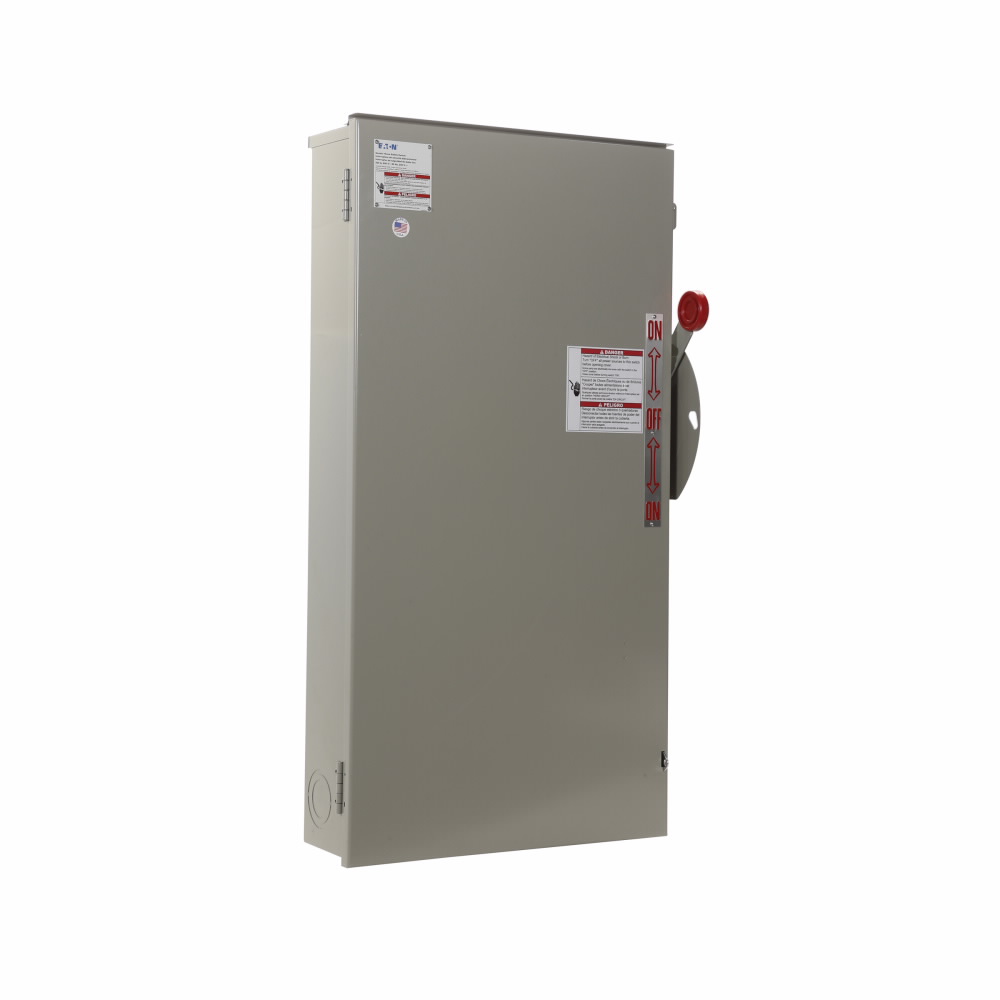

| Description | 200A/3P HD NF Double Throw Switch 600V Nema 3R |
| Details | Eaton Heavy Duty Double-Throw Non-Fused Safety Switch, 200 A, Nema 3R, Painted Galvanized Steel, Non-Fusible, Three-Pole, Three-Wire, 600 Vac, 250 VDC |
| Slang Terms | |
| Categories | Double Throw Safety Switches – Non-Fusible Double Throw Safet |
| Classification | Double Throw Switches (DT Series) |
| UNSPSC | N/A |
| UPC/GTIN | 782113613987 / 00782113613987 |
| Weight per unit | 80 (lbs/each) |
| Price & Packaging | |
| Minimum Order Quantity | 1 |
| Unit | $8,931.00 (Each) |
| Features | |
| Amperage Rating | 200 |
| Poles | 3 |
| Voltage Rating | 600 VAC, 250 VDC |
| Material | Galvanized Steel |
| Dimensions and Weight | |
| Depth | 11.26 |
| Width | 19.15 |
| Height | 37.69 |
| Descriptions | |
| Short Description | 200A/3P HD NF DOUBLE THROW SWITCH 600V NEMA 3R |
| Long Description | Eaton Heavy duty double-throw non-fused safety switch, 200 A, NEMA 3R, Painted galvanized steel, Non-fusible, Three-pole, Three-wire, 600 Vac, 250 Vdc |
| Product Type | 200A/3P HD NF DT SW 600V N3R |
| Extra Long Description | ETN DT364URK 200A/3P HD NF DT Sw 60 |
| Features | Eaton’s double-throw safety switches include two interlocked switches with a common connection used to transfer service from a normal power source to an alternate source, or to switch from one load circuit to another. The interlock ensures both switches cannot be closed at the same time, preventing them from being operated in parallel. |
| Additional Information | |
| Media | Yes |
| Manufacturer Information | |
| Brand | EATON CUTLER-HAMMER |
| Manufacturers Part Number | DT364URK |
| GTIN | 00782113613987 |
| UPC | 782113613987 |
| Taxonomies, Classifications, and Categories | |
| Category Description | DOUBLE THROW SWITCHES (DT Series) |
| Type | Double-throw non-fused safety switch |
| Packaging | |
| Weight per each | 80 |
| Carton | 1 |
| Uses, Certifications, and Standards | |
| Application | Commercial / Institutional Buildings / Structures – Power Distribution and Controls |
| Standard | UL Listed |
