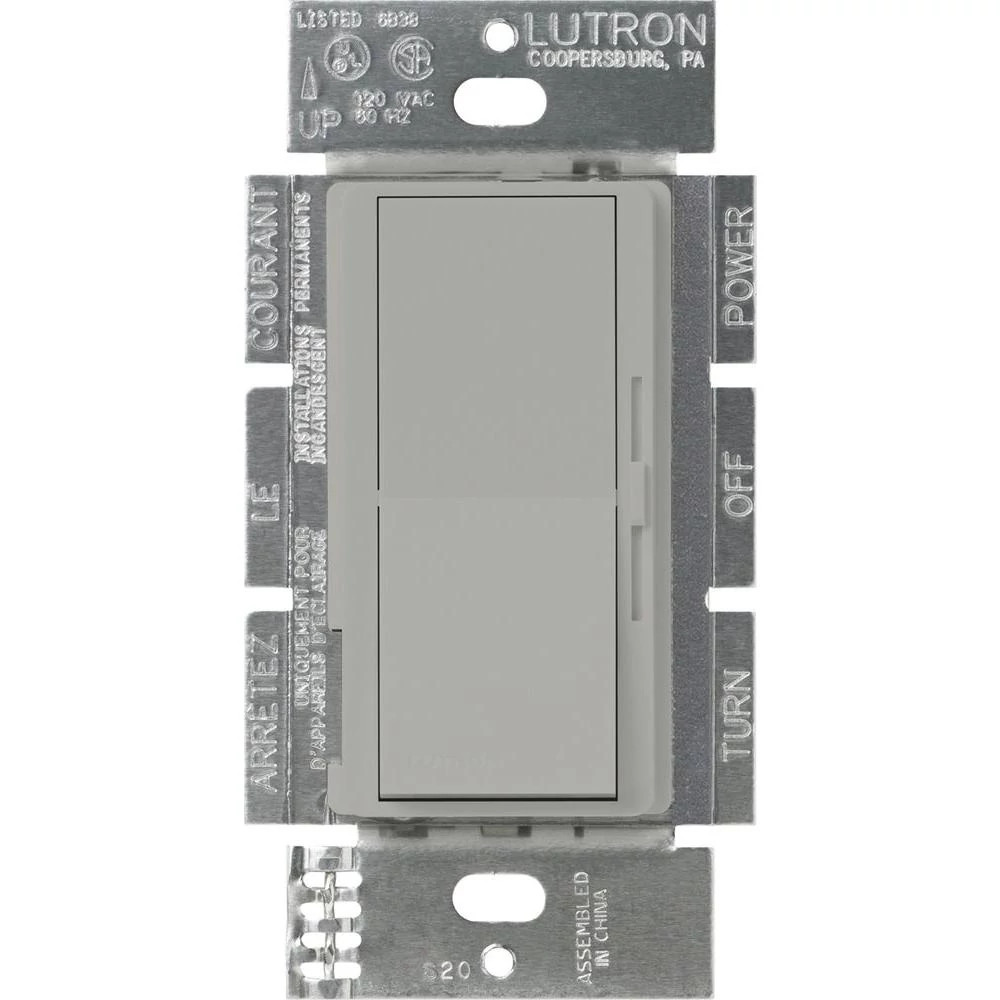

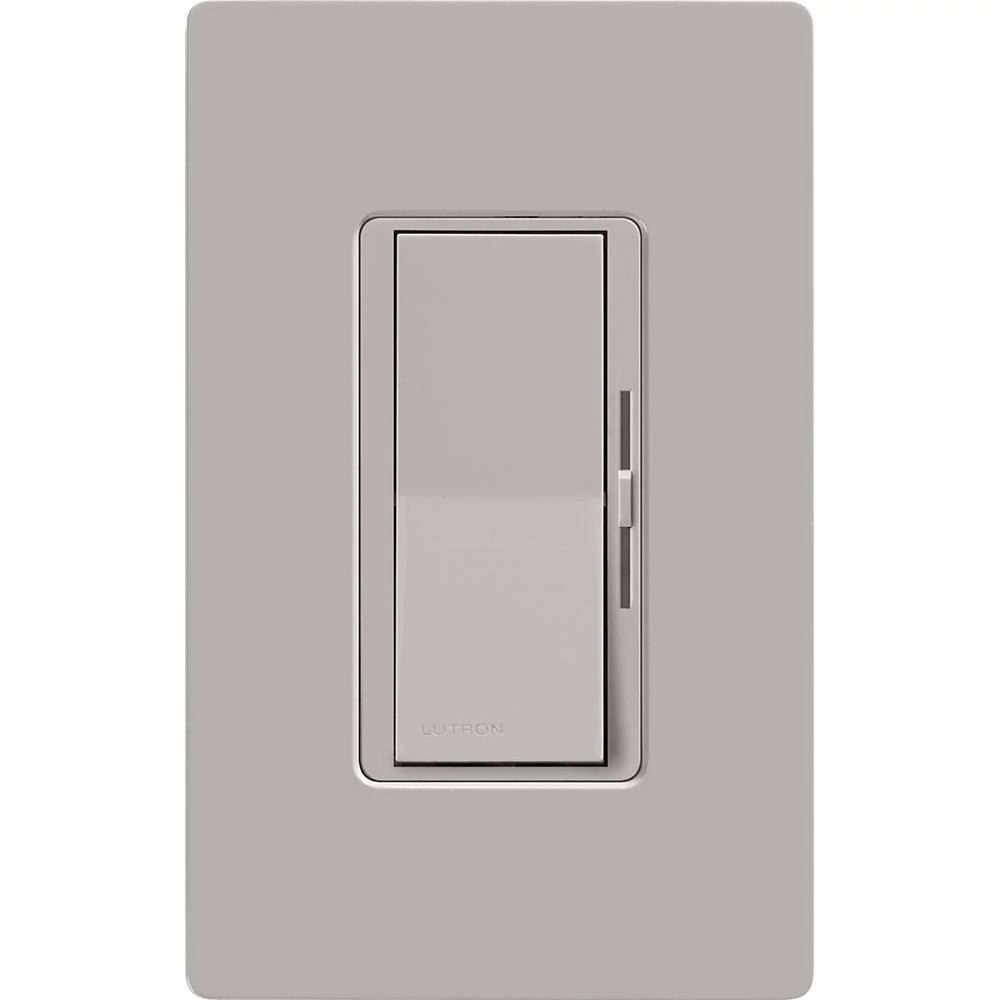

DVSTVIV – Diva DV 8A 0-10V 3WAY Ivory
$
(per )
(Each)
$92.57
(Each)
$
(per 1)
Availability:
In Stock Locally
| Quick Specs – Lutron DVSTV-IV Diva 0-10V 3-Way Dimmer (Ivory) | |
|---|---|
| Catalog Number | DVSTVIV |
| Vendor Code | LUT |
| Manufacturer | Lutron |
| Manufacturer’s Part Number | DVSTV-IV |
| Description | Diva DV 8A 0-10V 3WAY Ivory |
| Short Description | Dimmable Bulb Paddle Switch, 1P, 3W, 2216W, Fluorescent, Ivory |
| Long Description | Dimmable Bulb, Paddle Switch, 120 to 277 V, 2216 W, Fluorescent Lamp, Wall Mount, 2.94 in Length, 2.75 in Width, 4.69 in Height, Ivory, +32 °F to +104 °F Operating Temperature, 1 yr Warranty, 0.26 lb each |
| Features |

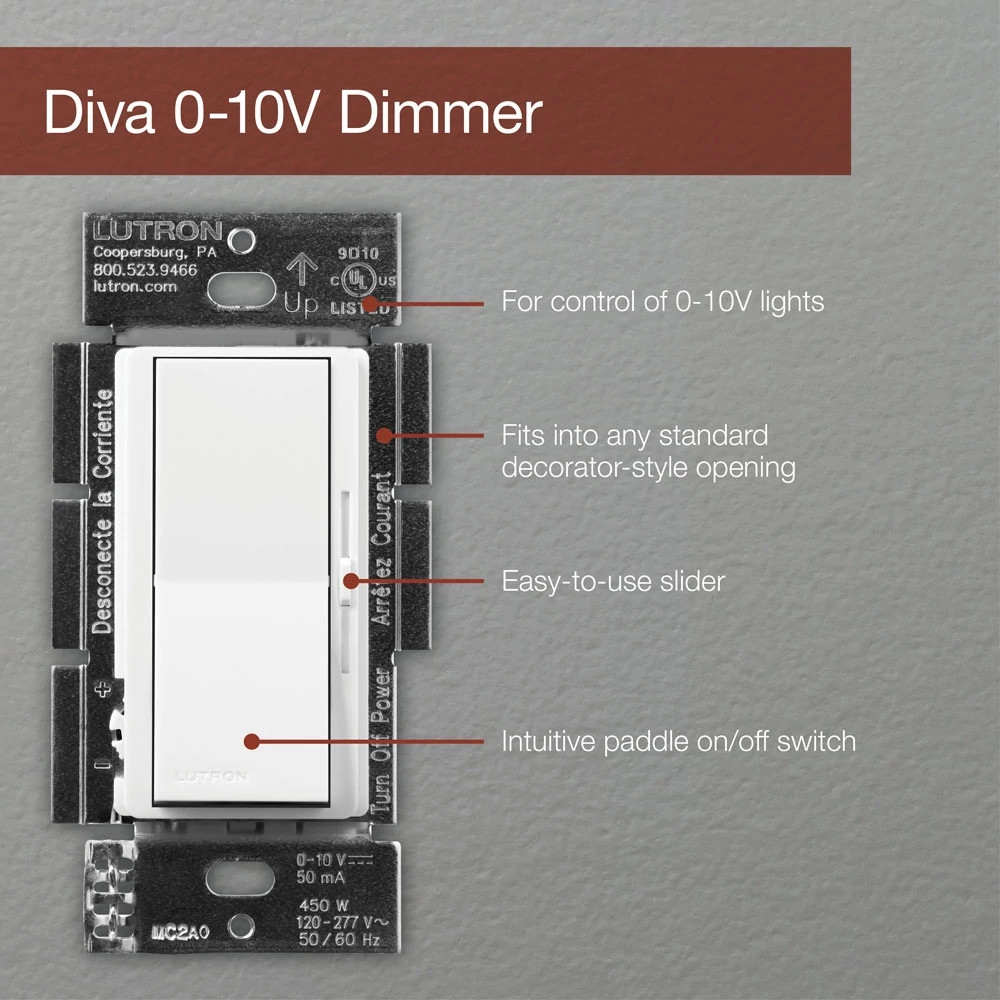

Controls 0-10 V LED or fluorescent fixture loads, 50 mA max control current. Paddle turns on/off. Slide up to brighten, down to dim. C•L dimmers are UL listed for controlling a broad range of dimmable CFLs and LEDs. Reliable dimming for CFL, LED, incandescent, and halogen bulbs. |
| Electrical Specifications | |
| Voltage Rating | 120 to 277 V |
| Power Rating | 2216 W |
| Amperage | 8 A |
| Poles | 1 |
| Material and Finish | |
| Material | Plastic/Metal |
| Color | Ivory |
| Finish | Gloss |
| Dimensions (L×W×H) | 4.69 × 2.94 in (119 × 75 mm) |
| Mounting Type | Wall Mount |
| Switch Type | Paddle Switch |
| Environmental | |
| Operating Temperature | 32 to 104 °F (0 to 40 °C) |
| Application | Indoor Use Only |
| Warranty | 1 Year |
| Weight | 0.26 lb (each) |
| Packaging | |
| Minimum Order Quantity | 1 |
| Standard Packaging | 24 per carton |
| Carton Weight | Approx. 6.24 lb |
| Certifications & Standards | |
| Standards | UL, CSA Listed |
| Identifiers | |
| UPC / GTIN | 784276099608 / 00784276099608 |
| Category Description | Residential dimmers, motion sensors, controls, & photo cells |
