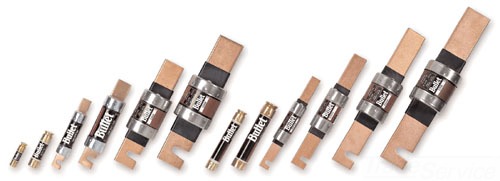

ECNR50 – 50A 250V Class RK5 Time Delay CL Fuse
$
(per )
(Each)
$22.88
(Each)
$
(per 10)
Availability:
In Stock Locally
| Attribute | Details |
|---|---|
| Catalog Number | ECNR50 Vendor Code EDN |
| Manufacturer | Edison |
| Manufacturer’s Part Number | ECNR50 |
| Description | 50A 250V Class RK5 Time Delay CL Fuse |
| Long Description | Time Delay Power Fuse, RK5 Class Fuse, Ferrule Fuse, 10 s @ 500% Response Time, Ferrule End x Ferrule End Connection, 50 A, 250 V AC; 125 V DC, Ferrule Terminal, 0.81 in Diameter, 3 in Overall Length, 1 lb |
| Short Description | Power Fuse, 50 A, 250 VAC/125 V DC, Time Delay, RK5 Class |
| Extra Long Description | Class RK5 type; 3 inch; UL 248-12, CE, CSA C22.2 Approval; 250 VAC/125 VDC Voltage Rating; 0.81 inch diameter; 200,000 Amp (DC) Interrupting Rating; 50 Amp current rating; Ferrule Terminal Type; Dual Element, 10 Sec Time Delay Characteristics; Edison Brand; Application: General-purpose including lighting, heating, and other non-inductive load; ECNR Model |
| Slang Terms | — |
| Categories | Distribution Fuses – Dual Element |
| Classification | Fuses & Fuse Accessories |
| UNSPSC | 39121604 – Time delay fuses |
| UPC/GTIN | 782634507383 / 00782634507383 |
| Weight per Unit | 0.12 lbs/each |
| Packaging – Carton | 10 |
| Weight (Carton) | 1 lb; 0.45 kg |
| Minimum Order Quantity | 1 |
| Unit Price | $22.88 (Each) |
| Carton Price | $228.80 (Per 10) |
| Voltage Rating | 250 V AC; 125 V DC |
| Current Rating | 50 A |
| Interrupt Rating | 200,000 A (DC) |
| Terminal Type | Ferrule |
| Response Time | 10 seconds @ 500% |
| Characteristics | Dual Element, 10 Second Time Delay |
| Dimensions – Diameter | 0.81 in |
| Dimensions – Length | 3 in |
| Product Type | Time Delay Power Fuse |
| Fuse Class | RK5 |
| Fuse Type | Ferrule |
| Connection Type | Ferrule End x Ferrule End |
| Application | General-purpose: lighting, heating, motors, transformers, inductive loads |
| Standards Met | UL Listed 248-12, Class RK-5, Guide JDDZ, File E162363; CSA C22.2 No. 248.12, Class 1422-02, File 700489; CE Certified |
| Made in USA | Yes |
| Brand | Edison |
| Model | ECNR |
| GTIN | 00782634507383 |
| Commodity Description | Dual Element Fuses |
| Category Description | Fuses & Fuse Accessories |
| Type | Class RK5 |
| Approval | UL 248-12, CE, CSA C22.2 |
