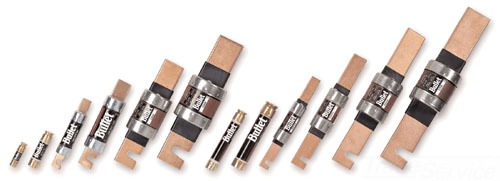

ECSR60 – 60A 600V Class RK5 Time Delay CL Fuse
$
(per )
(Each)
$43.75
(Each)
$
(per 10)
Availability:
In Stock Locally
| Attribute | Details |
|---|---|
| Catalog Number | ECSR60 |
| Vendor Code | EDN |
| Manufacturer | Edison |
| Manufacturer’s Part Number | ECSR60 |
| Description | 60A 600V Class RK5 Time Delay CL Fuse |
| Categories | Distribution Fuses – Dual Element |
| Classification | Fuses & Fuse Accessories |
| UNSPSC | 39121604 – Time delay fuses |
| UPC/GTIN | 782634508397 / 00782634508397 |
| Weight per Unit | 0.3 lbs each |
| Unit Price | $43.75 (Each) |
| Minimum Order Quantity | 1 |
| Current Rating | 60 A |
| Voltage Rating | 600 V AC |
| Interrupt Rating | 200 kAIC |
| Interrupting Rating | 200 Kiloampere (Symmetrical) |
| Terminal Type | Ferrule |
| Characteristics | 10 SEC TIME DELAY (AT 500 PERCENT RATED LOAD), DUAL ELEMENT |
| Diameter | 1.06 in |
| Overall Length | 5.5 in |
| Length | 5.5 INCH |
| Product Type | Time Delay Power Fuse |
| Short Description | Power Fuse, 60 A, 600 VAC/250 V DC, Time Delay, RK5 Class |
| Extra Long Description | CLASS RK5 TYPE; 5.5 INCH; UL, CSA C22.2, CE APPROVAL; 600 VOLT AC VOLTAGE RATING; 1.06 INCH DIAMETER; 200 KILOAMP INTERRUPTING RATING; 60 AMP CURRENT RATING; FERRULE TERMINAL TYPE; 10 SEC TIME DELAY (AT 500% LOAD), DUAL ELEMENT CHARACTERISTICS; APPLICATION AC POWER DISTRIBUTION, MOTORS, TRANSFORMERS, LIGHTING, HEATING |
| Application | Branch and Feeder Circuit, AC Drive, Loadcenter, Panel Board and Switch Board, Non-Inductive Load, General Purpose, Lighting and Heating |
| Fuse Class | RK5 Class |
| Fuse Type | Ferrule |
| Response Time | 10 s @ 500% |
| Connection Type | Ferrule End x Ferrule End |
| Standards Met | UL Listed; STD. 248-12; Class RK5; CSA Certified; CE Certified |
| Package Quantity | 10 CT |
| Made in USA | Yes |
| Brand | Edison Fuses |
| Model | ECSR |
