(Each)
$42.34
(Each)
(per 10)
In Stock Locally
$42.34
| Attribute | Details |
|---|---|
| Catalog Number | EDCC30 |
| Manufacturer | Eaton |
| Manufacturer Part Number | T626-EDCC30 |

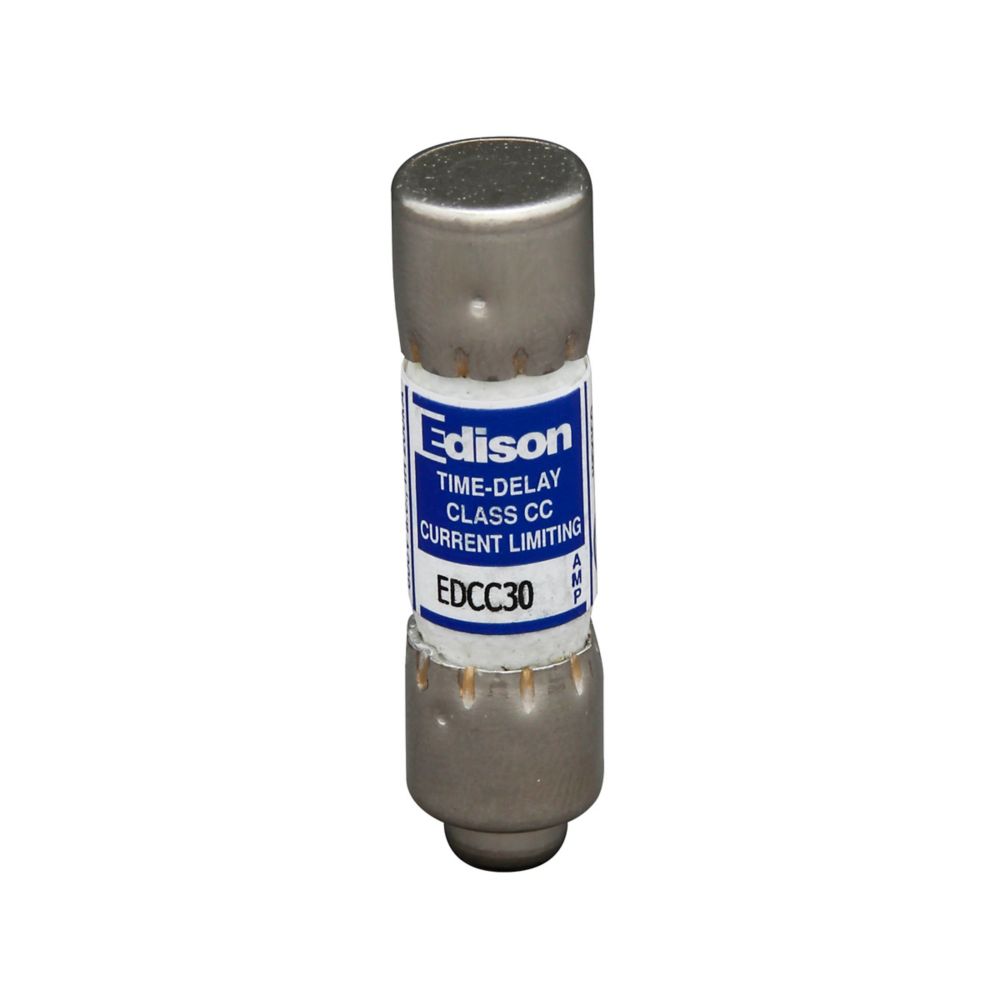

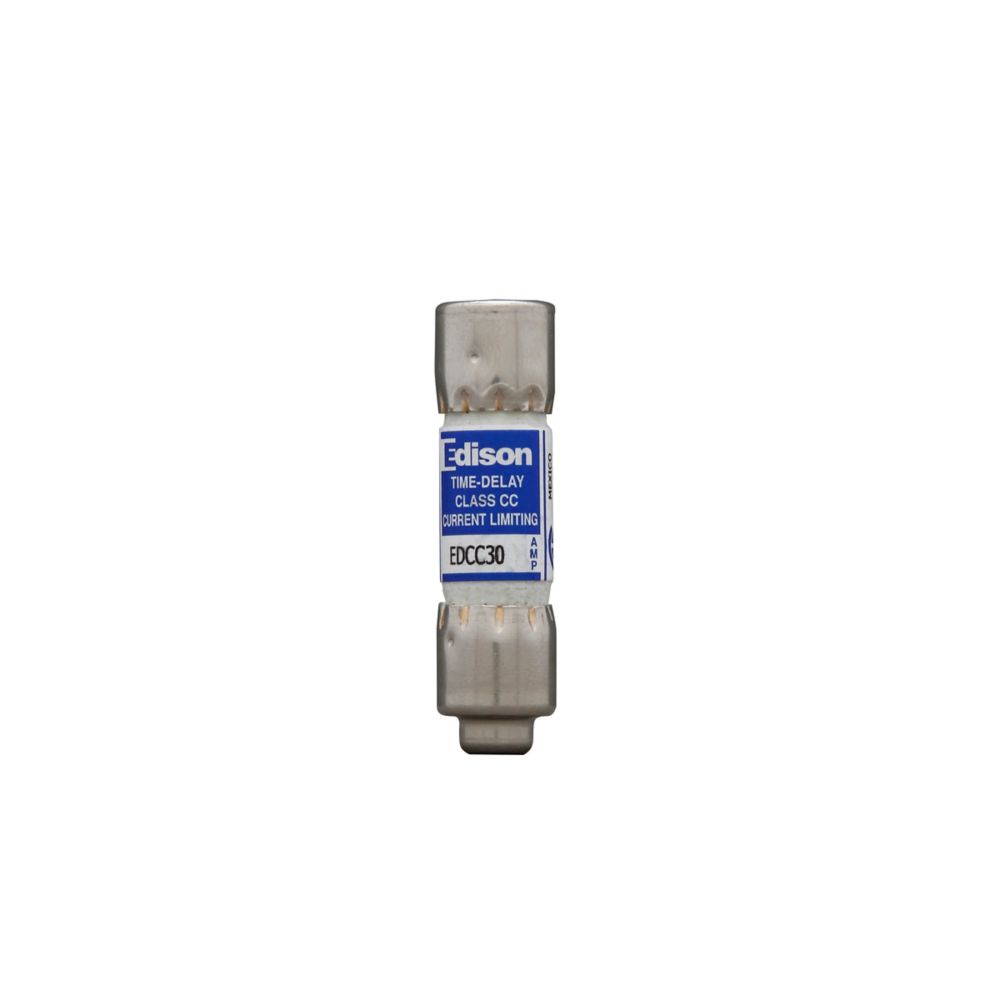

| Description | 30A 600V Class CC Time Delay Compact Fuse |
| Fuse Type | Time Delay, Current-Limiting Compact Fuse (Class CC) |
| Current Rating | 30 A |
| Voltage Rating | 600 V AC |
| Interrupt Rating | 100 kAIC (AC RMS Symmetrical) / 20 kAIC (DC) |
| Dimensions | Diameter: 0.41 in (10.3 mm); Overall Length: 1.5 in (38.1 mm) |
| Weight | 0.02 lbs (per each) |
| Price | $42.34 (Each) |
| UPC / GTIN | 782634808305 / 00782634808305 |
| Package Quantity | 10 |
| Made in | USA |
| Certifications | UL Listed (Std. 248-4, Class CC), CSA Certified, RoHS Compliant, CE Marked |
| Application | Protection of small horsepower motor circuits, control transformers, and other circuits requiring time delay fuses |
