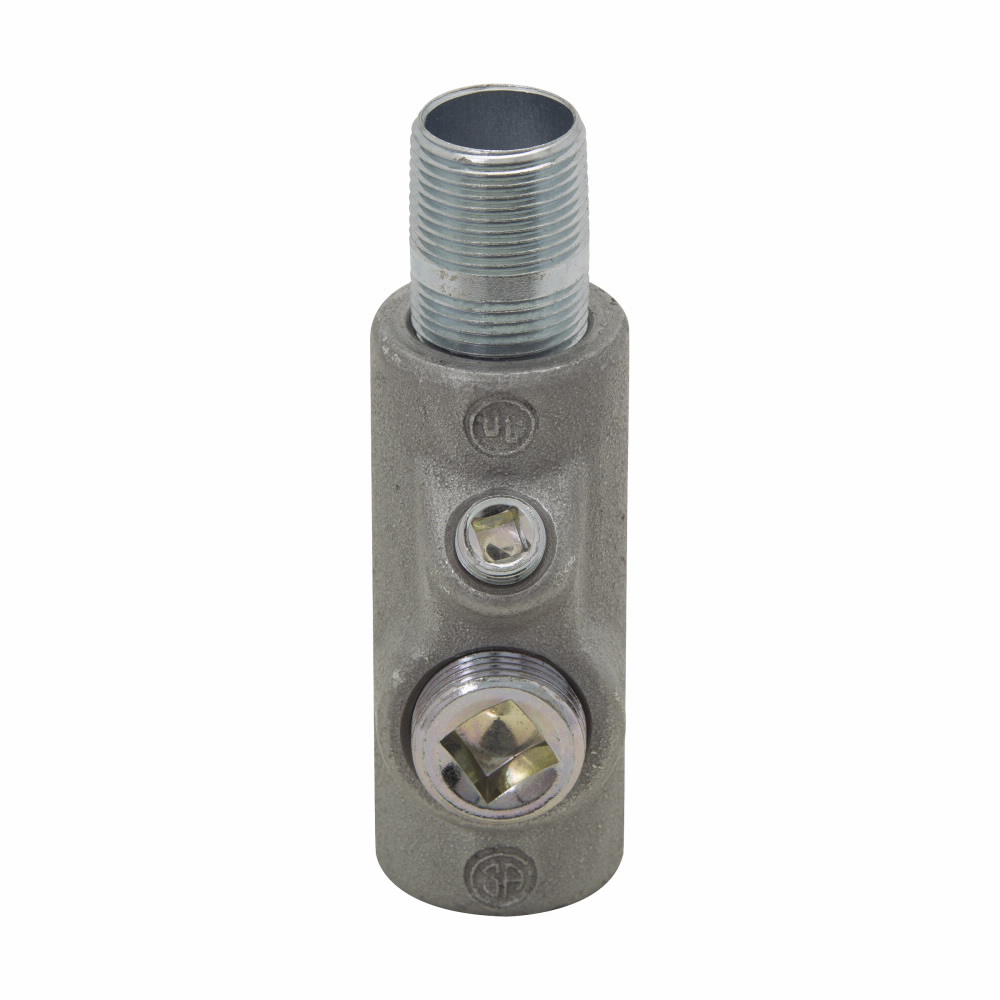

EYS116 – 1/2″ Male & Female Hub Vert/Horizontal Seal Off
$
(per )
(Each)
$44.20
(Each)
$
(per 2)
Availability:
In Stock Locally
| Quick Specs | |
| Catalog Number | EYS116 |
| Vendor Code | CRS |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | EYS116 |
| Description | 1/2″ Male & Female Hub Vert/Horizontal Seal Off |
| Conduit Seal Body, 1/2 In Trade Size, Electro-Galvanized With Aluminum Acrylic Painted, Male X Female Connection, 1 Cu.In (Vertical);1 Cu.In (Horizontal) Capacity, 1 Hub, 1/2 In Hub Size, Horizontal Mount/Vertical Mount, 1.03 LB/Ea | |
| Categories | |
| Steel – Sealing Bodies | |
| Classification | Hazardous Location Fittings |
| UNSPSC | 39131708 – Electrical conduit fitting body |
| UPC/GTIN | 782274380100 / 00782274380100 |
| Weight per unit | 1.03 (lbs/each) |
| Price & Packaging | |
| Minimum Order Quantity | 1 |
| Unit | $44.20 (Each) |
| Carton | $221.00 (Per 5) |
| Features | |
| Number of Hubs | 1 |
| connection | Male Threaded, Female Threaded |
| Material, Color, and Finish | |
| Finish | Electro-Galvanized with Aluminum Acrylic Painted |
| Dimensions and Weight | |
| Hub Size | 1/2 in |
| Descriptions | |
| Description | 1/2″ MALE & FEMALE HUB VERT/HORIZONTAL SEAL OFF |
| Features | EYS sealing fittings are available for installation in either vertical only or in both horizontal or vertical positions. |
| Short Description | Conduit Seal Body, 1/2 in, Electrogalvanized with Aluminum Acrylic Painted |
| Special Features | Explosionproof;Dust Ignitionproof;Rain Tight |
| Product Type | Conduit Seal Body |
| Long Description | Conduit Seal Body, 1/2 in Trade Size, Electro-Galvanized with Aluminum Acrylic Painted, Male x Female Connection, 1 cu.in (Vertical);1 cu.in (Horizontal) Capacity, 1 Hub, 1/2 in Hub Size, Horizontal Mount/Vertical Mount, 1.03 lb/EA |
| extra long description | CRS-H EYS116 1/2 NPT MALE/FEM CST I |
| Additional Information | |
| body type | Conduit Seal |
| Connection Type | Male x Female |
| Enclosure Type | Class I Div 1 and 2 Group C D;Class II Div 1 and 2 Group E F G;Class III |
| Mounting Type | Horizontal Mount/Vertical Mount |
| for use with | Conduit System |
| Standards Met | UL 1203;CSA C22.2;NEC/CEC EYS1-3;NEC/CEC 11-31;NEC/CEC 16-36;NEC/CEC 116-316;NEC/CEC EYS41-101;NEC/CEC 416-1016;NEC/CEC EYS29;NEC/CEC 4-014;NEC/CEC 46-0146;NEC/CEC EZS1-8;NEC/CEC 16-86 |
| package quantity | 5 CT |
| Made in USA | yes |
| dimensions | 1.2500 IN X 1.2500 IN X 3.6900 IN |
| Manufacturer Information | |
| Brand | Eaton |
| Manufacturers Part Number | EYS116 |
| GTIN | 00782274380100 |
| UPC | 782274380100 |
| Taxonomies, Classifications, and Categories | |
| Category Description | HAZARDOUS LOCATION FITTINGS |
| Type | Conduit sealing fitting |
| Trade Size | Trade Size |
| Trade Size | 1/2 in |
| Packaging | |
| Weight | 1.03 lb/EA |
| Weight per each | 1.03 |
| Carton | 5 |
| Uses, Certifications, and Standards | |
| Capacity | 1 cu.in (Vertical);1 cu.in (Horizontal) |
| Application | Hazardous Location |
| Enclosure | Class I Div 1 2 Group A B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III |
| standard | UL 886, CSA C22.2 |
