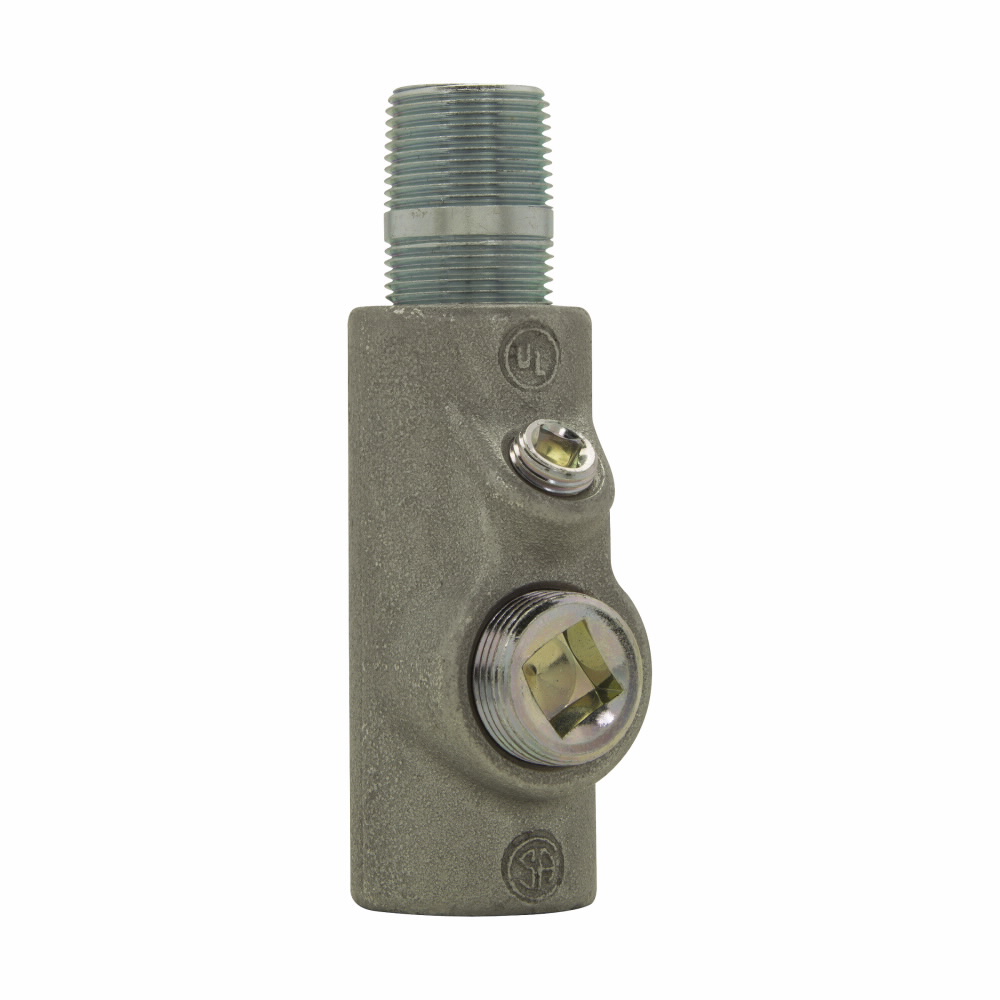

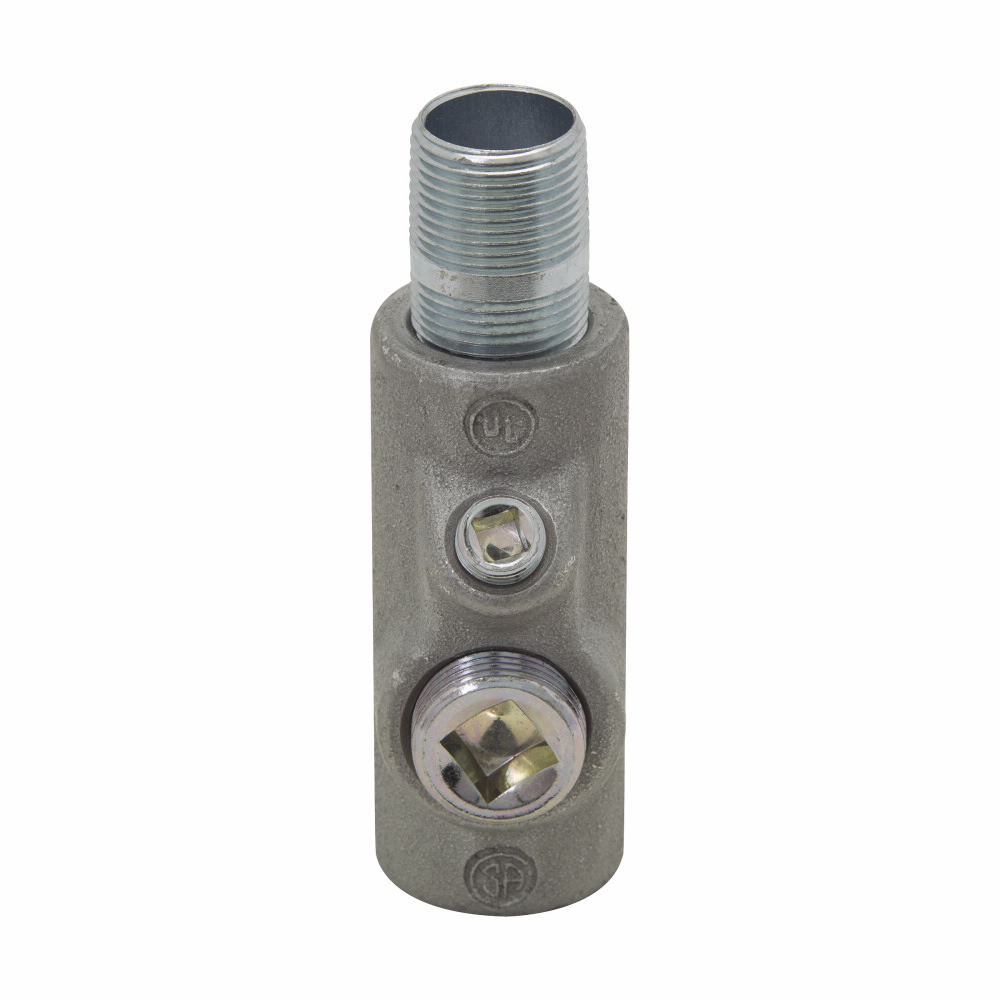

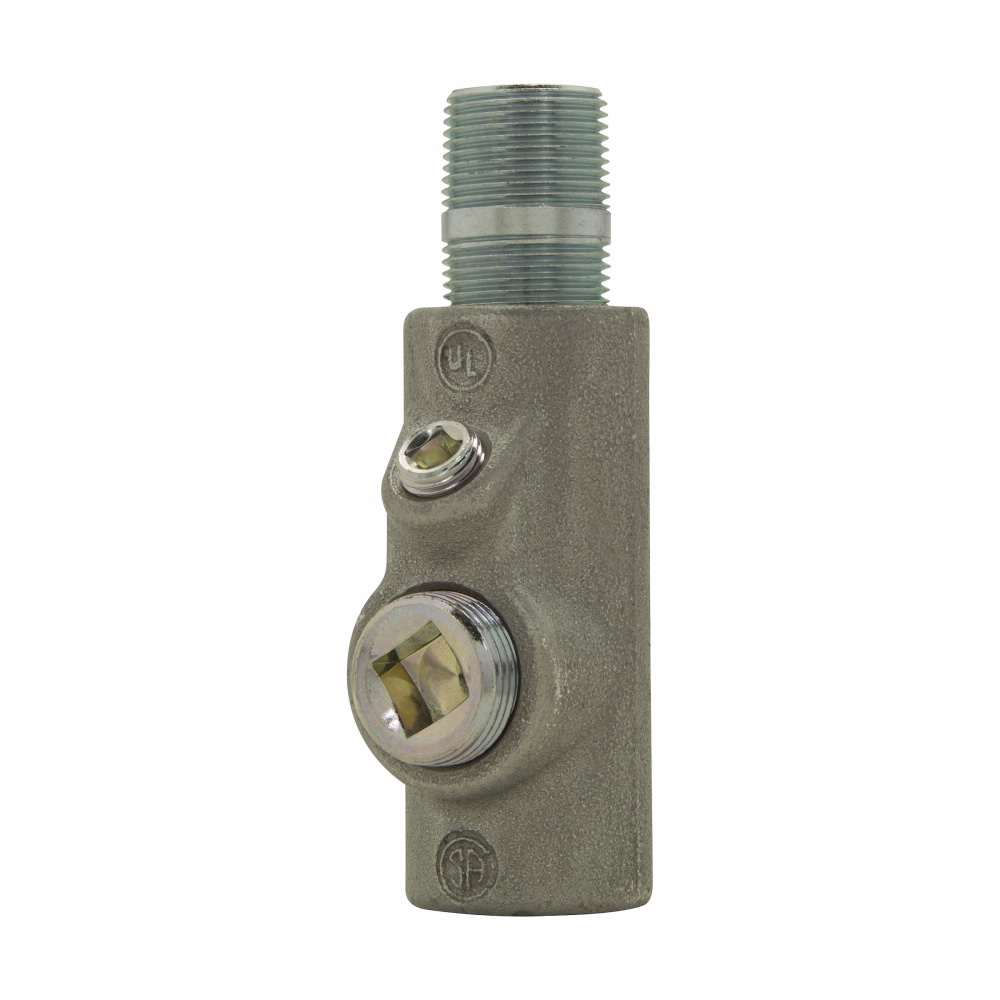

EYS316 – 1″ Male & Female Hub Vert/Horizontal Seal Off
$
(per )
(Each)
$65.18
(Each)
$
(per 2)
Availability:
In Stock Locally
| Attribute | Value |
|---|---|
| Catalog Number | EYS316 |
| Vendor Code | CRS |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | EYS316 |
| Description | 1″ Male & Female Hub Vert/Horizontal Seal Off |
| Long Description | Conduit Seal Body, 1 in Trade Size, Electro-Galvanized with Aluminum Acrylic Painted, Male x Female Connection, 3 cu.in (Vertical); 3-3/4 cu.in (Horizontal) Capacity, 1 Hub, Horizontal Mount/Vertical Mount, 1.7 lb/EA |
| Short Description | Conduit Seal Body, 1 in, Electrogalvanized with Aluminum Acrylic Painted, Vertical/Horizontal Mount |
| Extra Long Description | CRS-H EYS316 1 NPT MALE/FEM CST IRO |
| Product Type | Conduit Seal Body |
| Type | Conduit Sealing Fitting |
| Categories | Steel – Sealing Bodies |
| Classification | Hazardous Location Fittings |
| Category Description | HAZARDOUS LOCATION FITTINGS |
| UNSPSC | 39131708 – Electrical conduit fitting body |
| UPC/GTIN | 782274380308 / 00782274380308 |
| GTIN | 00782274380308 |
| Weight per Unit | 1.7 lbs/each |
| Minimum Order Quantity | 1 |
| Unit Price | $65.18 (Each) |
| Carton Price | $130.36 (Per 2) |
| Package Quantity | 2 CT |
| Material / Finish | Electro-Galvanized with Aluminum Acrylic Painted |
| Body Type | Conduit Seal |
| Form | Not specified |
| Mounting Type | Horizontal Mount / Vertical Mount |
| Connection Type | Male x Female |
| Number of Hubs | 1 |
| Hub Size | 1 in |
| Trade Size | 1 in |
| Dimensions | 1.75 in x 1.75 in x 4.31 in |
| Capacity | 3 cu.in (Vertical); 3-3/4 cu.in (Horizontal) |
| Application | Hazardous Location |
| For Use With | Conduit System |
| Enclosure Type | Class I Div 1 and 2 Group C D; Class II Div 1 and 2 Group E F G; Class III |
| Special Features | Explosionproof; Dust Ignitionproof; Rain Tight; EYS sealing fittings are available for vertical or both vertical/horizontal positions. |
| Standards Met | UL 1203; CSA C22.2; NEC/CEC EYS1-3, EYS41-101, EYS29; NEC/CEC EZS1-8; Federal Specification W-C-586D |
| Made in USA | Yes |
