(Each)
$163.00
(Each)
(per 1)
(per 10)
In Stock Locally
$163.00
| Category | Details |
|---|---|
| Catalog Number | EYS66 |
| Vendor Code | CRS |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | EYS66 |

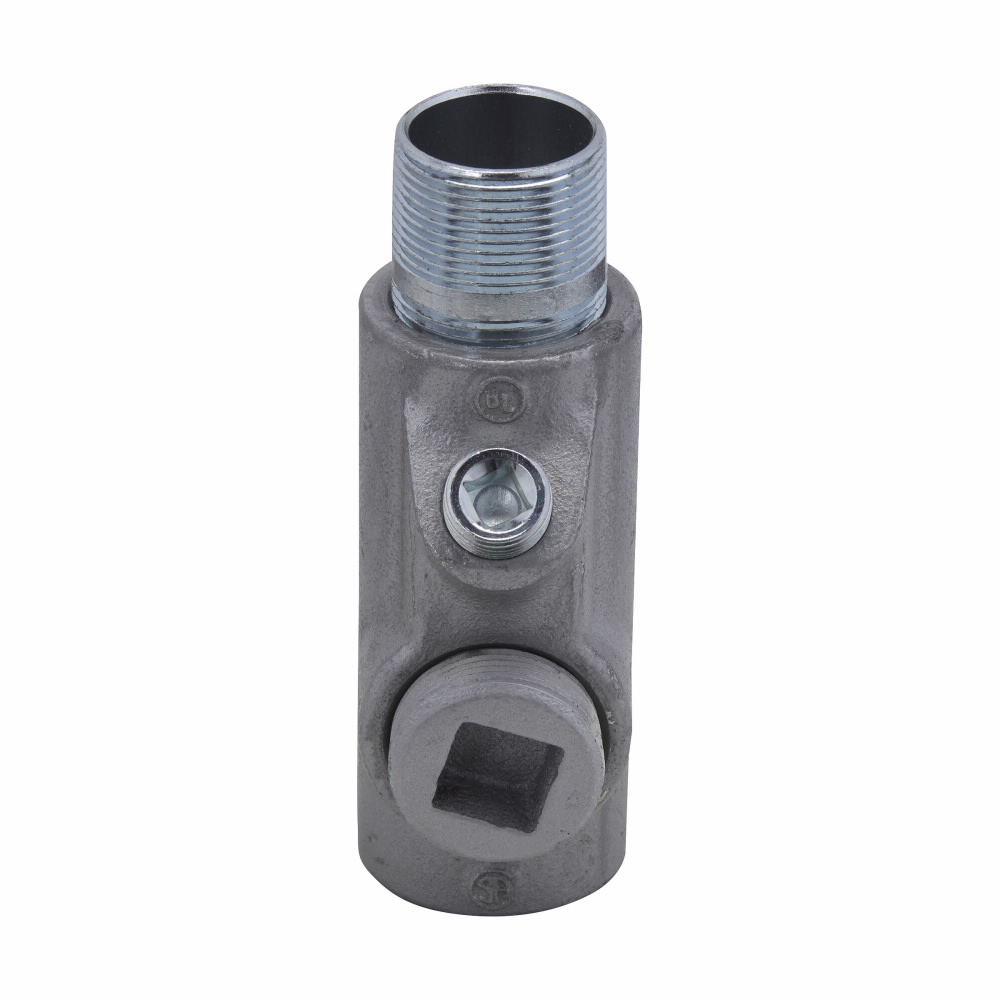

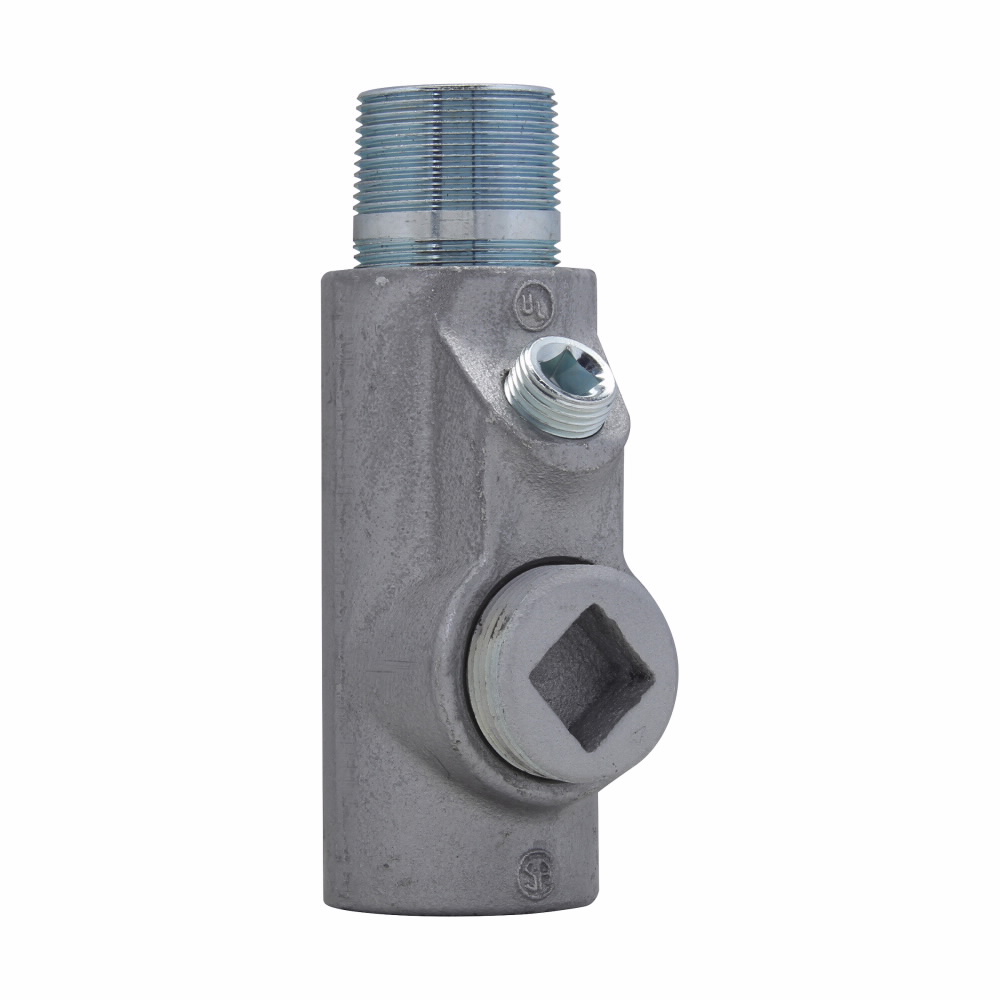

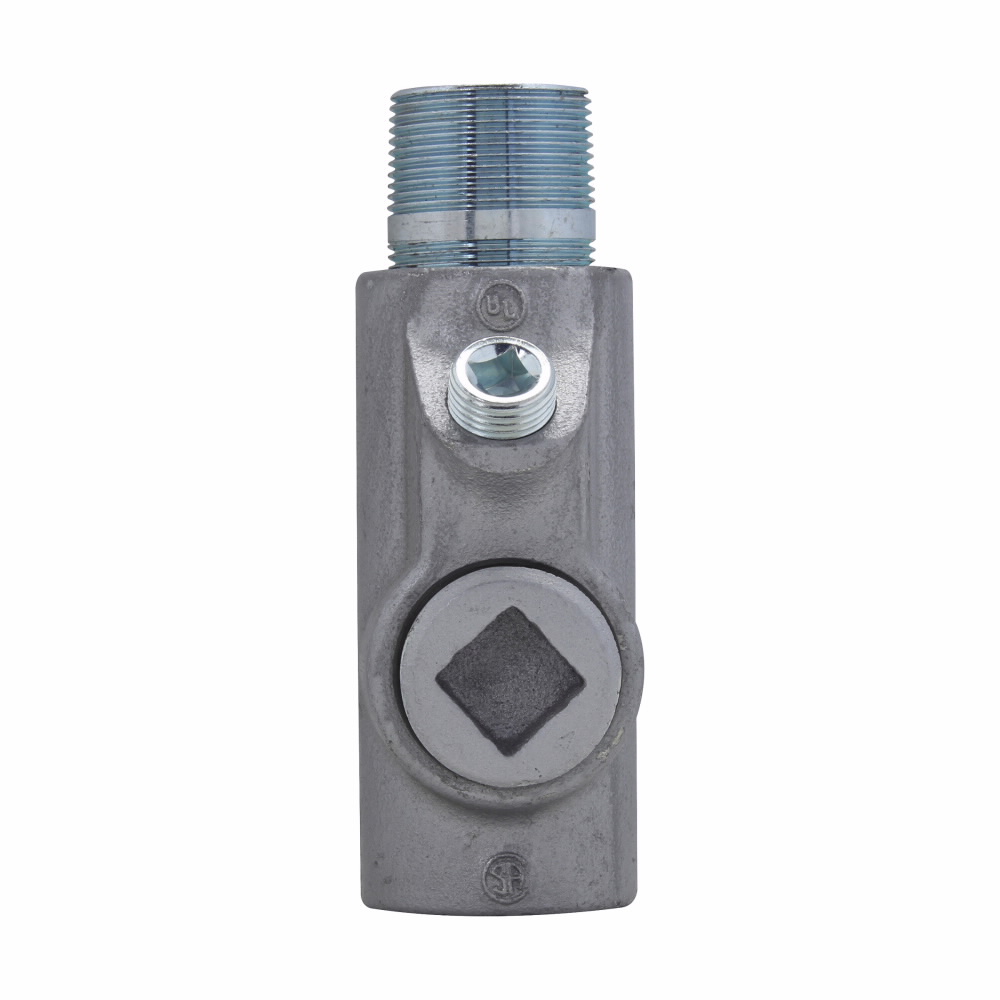

| Description | 2″ Male & Female Hub Vertical Seal Off |
| Product Type | Conduit Seal Body |
| Long Description | Conduit Seal Body, 2 in Trade Size, Electro-Galvanized with Aluminum Acrylic Painted, Male x Female Connection, 19 cu.in (Vertical); 22-3/4 cu.in (Horizontal) Capacity, 1 Hub, 2 in Hub Size, Horizontal Mount/Vertical Mount, 5.6 lb/EA |
| Short Description | Conduit Seal Body, 2 in, Electrogalvanized with Aluminum Acrylic Painted, Vertical Mount |
| Extra Long Description | CRS-H EYS66 2 NPT MALE/FEM CST IRON |
| Special Features | Explosionproof; Dust Ignitionproof; Rain Tight |
| Slang Terms | — |
| Categories | Steel – Sealing Bodies |
| Classification | Hazardous Location Fittings |
| UNSPSC | 39131708 – Electrical conduit fitting body |
| UPC/GTIN | 782274379609 / 00782274379609 |
| Weight per unit | 5.6 lb/each |
| Price (Each) | $163.00 |
| Standard Packaging | $1,630.00 (Per 10) |
| Minimum Order Quantity | 1 |
| Number of Hubs | 1 |
| Connection Type | Male Threaded, Female Threaded |
| Material / Finish | Electro-Galvanized with Aluminum Acrylic Painted |
| Hub Size | 2 in |
| Capacity | 19 cu.in (Vertical); 22-3/4 cu.in (Horizontal) |
| Mounting Type | Horizontal Mount / Vertical Mount |
| Body Type | Conduit Seal |
| For Use With | Conduit System |
| Enclosure Type | Class I Div 1 and 2 Group C D; Class II Div 1 and 2 Group E F G; Class III |
| Standards Met | UL 1203; CSA C22.2; NEC/CEC (multiple clauses) |
| Dimensions (L x W x H) | 6.25 in x 3.00 in x 3.00 in |
| Weight | 5.6 lb/EA |
| Package Quantity | 10 PK; 1 CT |
| Made in USA | Yes |
| Brand | Eaton |
| Type | Conduit sealing fitting |
| Application | Hazardous Location |
| Enclosure | CLASS I DIV 1 2 GROUP C D, CLASS II DIV 1 2 GROUP E F G, CLASS III |
| Standard | UL 886, CSA C22.2 |
