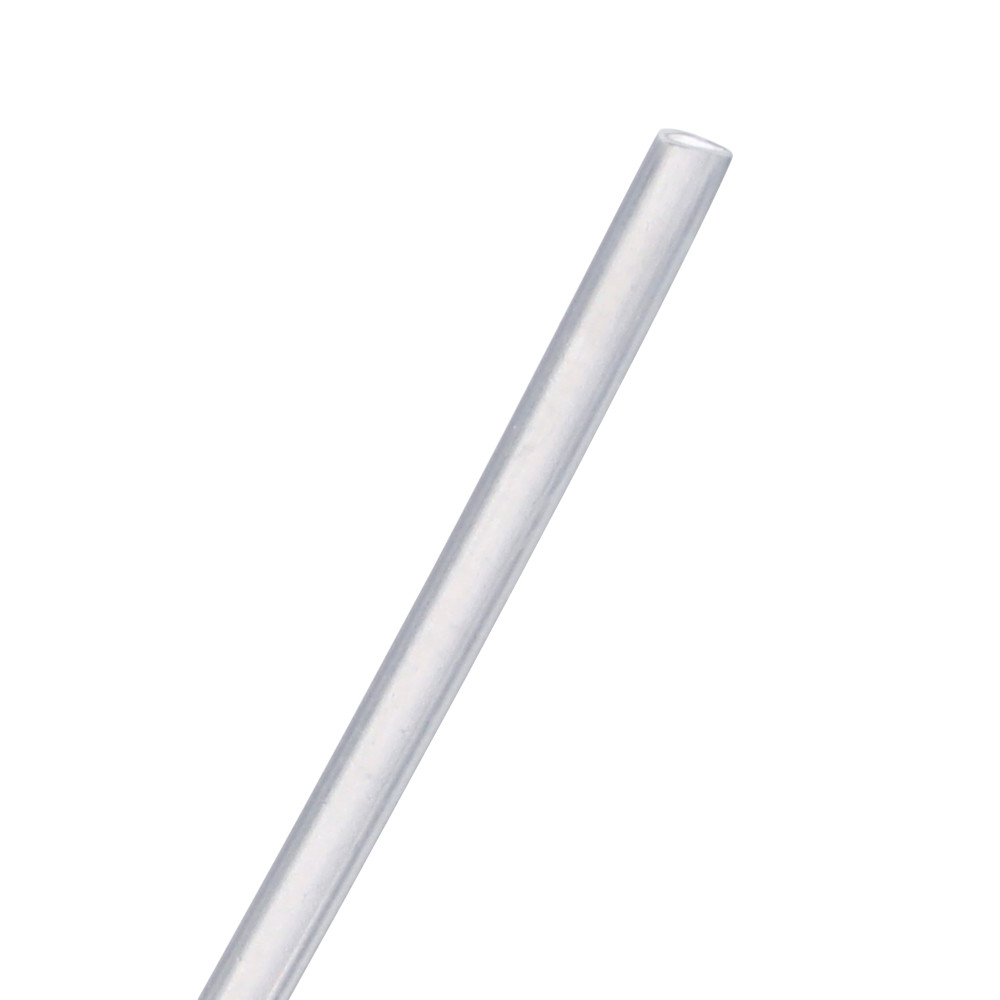

FP30118CLEAR100 – Thin-Wall Heat Shrink Tubing, 1/8 – 100′, Clear
$
(per )
(Each)
$0.78
(Each)
$
(per 1)
$
(per 300)
Availability:
In Stock Locally
| Field | Details |
|---|---|
| Catalog Number | FP30118CLEAR100 |
| Vendor Code | SCO |
| Manufacturer | 3M |
| Manufacturer’s Part Number | FP0.125CR100’S |
| Description | Thin-Wall Heat Shrink Tubing, 1/8 – 100′, ClearThin Wall Shrink Tube, Polyolefin Material, Clear, 2400 psi Tensile Strength, 400% Elongation at Break, 600 V, 1/8 in Cable Size, 0.062 in (1.57 mm) Recovered Diameter, 0.125 in Expanded Diameter, 2:1 Shrink Ratio, -67 °F to +275 °F Operating Temperature, 100 ft Length, 0.02 in Thickness, 10 Year Shelf Life, 0.01 lb/each |
| Slang Terms | (none provided) |
| Categories | Tape, Soldering, & Shrink Tube – Insulating Materials |
| Classification | Heat/Cold Shrink |
| UNSPSC | 13111200 – Films |
| UPC/GTIN | 051135355671 / 00051135355671 |
| Weight per Unit | 0.0022 lbs/each |
| Price & Packaging | Minimum Order Quantity: 1Unit Price: $0.78 (Each)Carton: $77.57 (Per 100)Standard Packaging: $232.71 (Per 300) |
| Stock Availability | Nacogdoches: 0 (Find nearest stock)All Stores: 5,000 |
| Material | Polyolefin |
| Material, Color, and Finish | Color: Clear |
| Dimensions and Weight | Thickness: 0.02 in (0.51 mm)Cable Size: 1/8 inRecovered Diameter: 0.062 in (1.57 mm)Expanded Diameter: 0.125 in (3.18 mm)Shrink Ratio: 2:1Length: 100 ftWeight: 0.01 lb/each |
| Product Type | Thin Wall Shrink Tube |
| Long Description | Thin Wall Shrink Tube, Polyolefin Material, Clear, 2400 psi Tensile Strength, 400% Elongation at Break, 600 V, 1/8 in Cable Size, 0.062 in (1.57 mm) Recovered Diameter, 0.125 in Expanded Diameter, 2:1 Shrink Ratio, -67 °F to +275 °F Operating Temperature, 100 ft Length, 0.02 in Thickness, 10 yr Shelf Life, 0.01 lb/EA |
| Features | 3M FP-301 Heat Shrink Tubing offers excellent balance of electrical, physical and chemical properties.Rated for continuous operation at -55°C to +135°C, short-term up to 300°C.Split resistant, mechanically tough, easily marked, resists cold flow. |
| Short Description | Thin Wall Heat Shrink Tube, Polyolefin, Clear, Spool |
| Special Features | Provides excellent visibility for component packing;Split resistant |
| Additional Information | Tensile Strength: 2400 psiElongation at Break: 400%Minimum Operating Temperature: -67 °F (-55 °C)Maximum Operating Temperature: +275 °F (+135 °C)Shelf Life: 10 years |
| Standards Met | SAE-AMS-DTL-23053/5 Class 1 & 2; AMS-3636; AMS-3637; UL Listed File E-39100; CSA Certified LR38227; MIL-I-23053/5; MIL-DTL-23053; RoHS Compliant |
| Made in USA | Yes |
| Package Quantity | 1 CT; 300 PK |
| Manufacturer Information | Brand: Minnesota Mining (3M)Sub Brand: 3M(TM)GTIN: 00051135355671UPC: 051135355671 |
| Taxonomies, Classifications, and Categories | Type: Single (Thin) WallCategory Description: HEAT/COLD SHRINK |
| Packaging | Weight: 0.01 lb/EAWeight per each: 0.0022Carton: 100Package: 300 |
| Uses, Certifications, and Standards | Application: Construction, Industrial, MilitaryStandard: UL, CSA, ABS |
