(Each)
$45.29
(Each)
(per 10)
In Stock Locally
$45.29
| Feature | Details |
|---|---|
| Catalog Number | FRSR10 |
| Manufacturer | Eaton |
| Part Number | FRS-R-10 |

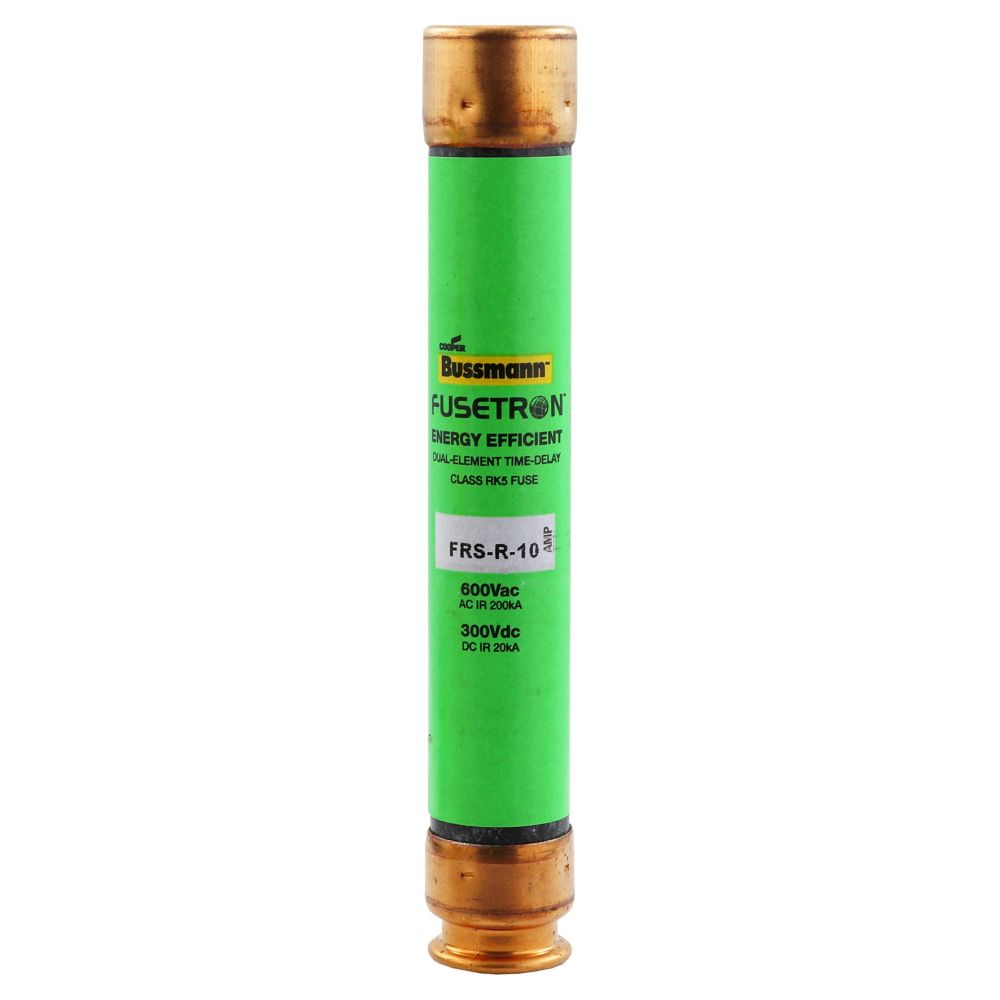

| Description | 10A 600V Time Delay Class RK5 Dual Element Fuse (Fusetron) |
| Current Rating | 10 A |
| Voltage Rating | 600 V AC; 300 V DC |
| Interrupt Rating | 200 kAIC at 600 VAC; 20 kAIC at 300 V DC |
| Response Time | 10 seconds at 500% rated current |
| Connection Type | Ferrule End x Ferrule End |
| Dimensions | 0.81 in diameter x 5.0 in length |
| Weight | 0.16 lbs |
| Price | $45.29 each |
| Packaging | Carton of 10 |
| Fuse Class | RK5 Class |
| Element Type | Dual Element |
| Certifications | UL Listed, CSA Certified, CE Marked |
| Applications | Combination Starters, Motor Control Centers, Machinery Disconnects, Power Panelboards |
| Special Features | Renewable Fuse |
| Made in USA | Yes |
