(Each)
$121.28
(Each)
(per 1)
In Stock Locally
$121.28
| Attribute | Details |
|---|---|
| Catalog Number | FRSR90 |
| Manufacturer | Eaton Bussmann Series |
| Manufacturer Part Number | FRS-R-90 |

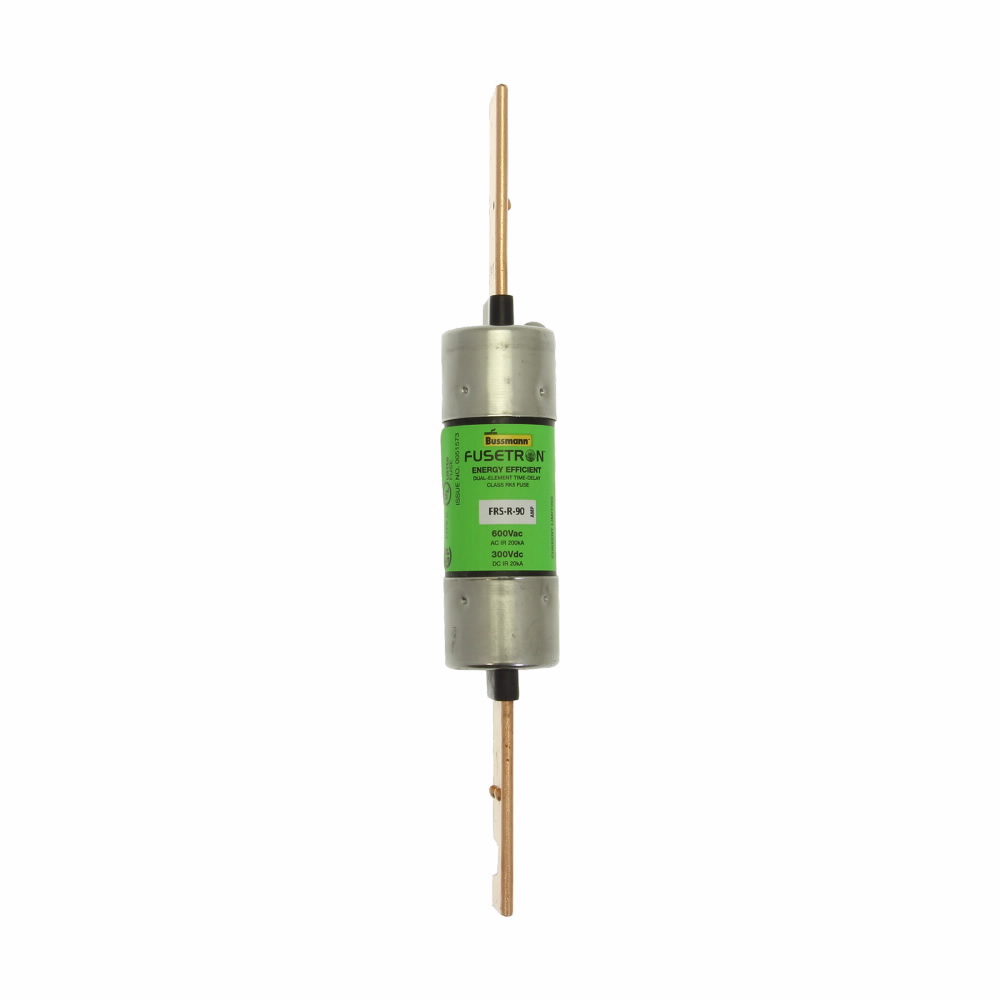

| Description | 90A 600V TD Class RK5 Dual Element Fusetron Fuse |
| Type | Time-Delay, Dual-Element, Current-Limiting |
| Fuse Class | RK5 |
| Amperage Rating | 90 A |
| Voltage Rating | 600 V AC / 300 V DC |
| Interrupt Rating | 200 kAIC (AC) / 20 kAIC (DC) |
| Terminal Type | Blade |
| Connection Type | Blade End x Blade End |
| Response Time | 10 seconds at 500% of rated current |
| Renewable | Yes |
| Standards Met | UL Listed, CSA Certified, CE Marked, STD. 248-12, Guide JDDZ |
| Applications | Combination Starters, MCCs, Disconnects, Panelboards |
| Diameter | 1.11 in |
| Overall Length | 7.88 in |
| Weight per Unit | 0.41 lb |
| UPC / GTIN | 051712508421 / 00051712508421 |
| Unit Price | $121.28 (Each) |
| Package Quantity | 1 ct |
| Made in USA | Yes |
| UNSPSC Code | 39121606 |
| Classification | Fuses & Fuse Accessories |
| Product Type | Fusetron Dual Element Fuse Class RK5 |
| Extra Long Description | BUSS FRS-R-90 FUSETRON DUAL ELEMENT |
