| Catalog Number | GHB1020 |
|---|---|
| Vendor Code | ETN |
| Manufacturer | Eaton |
| Part Number | GHB1020 |
| UPC/GTIN | 786679023624 / 00786679023624 |

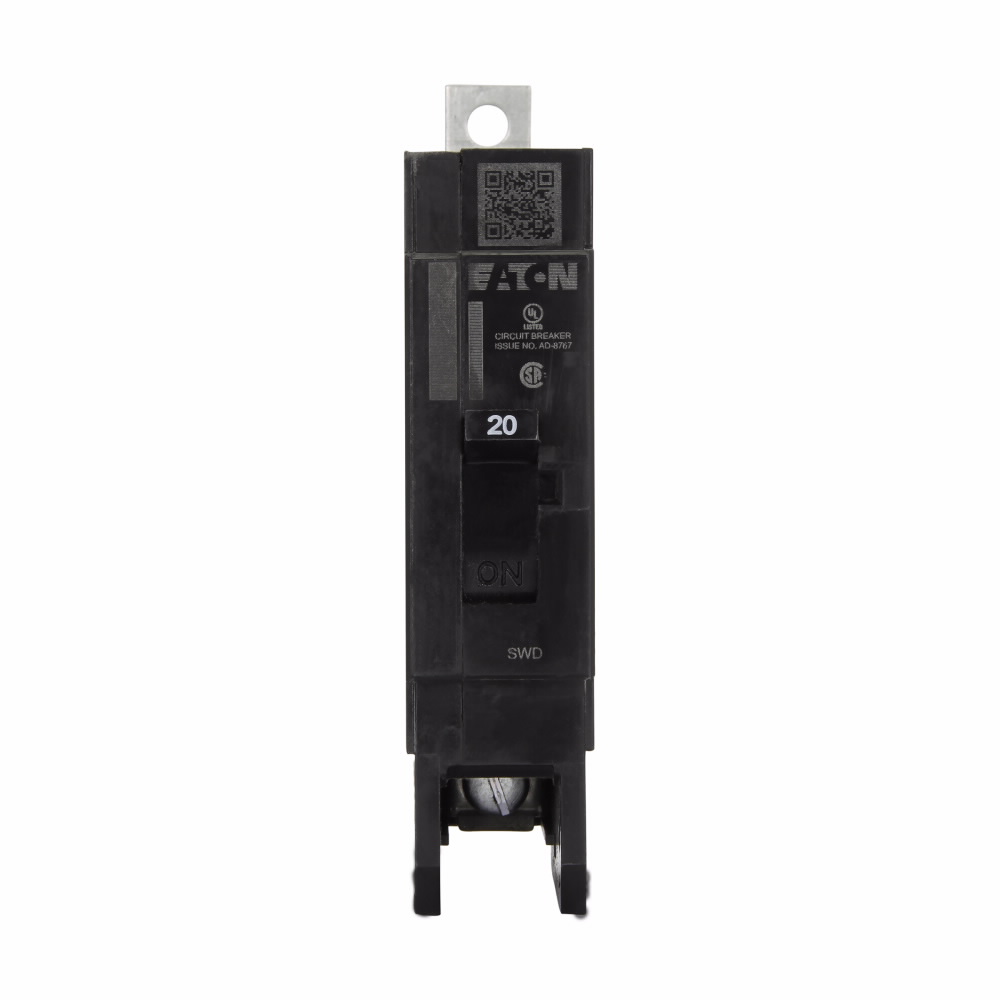

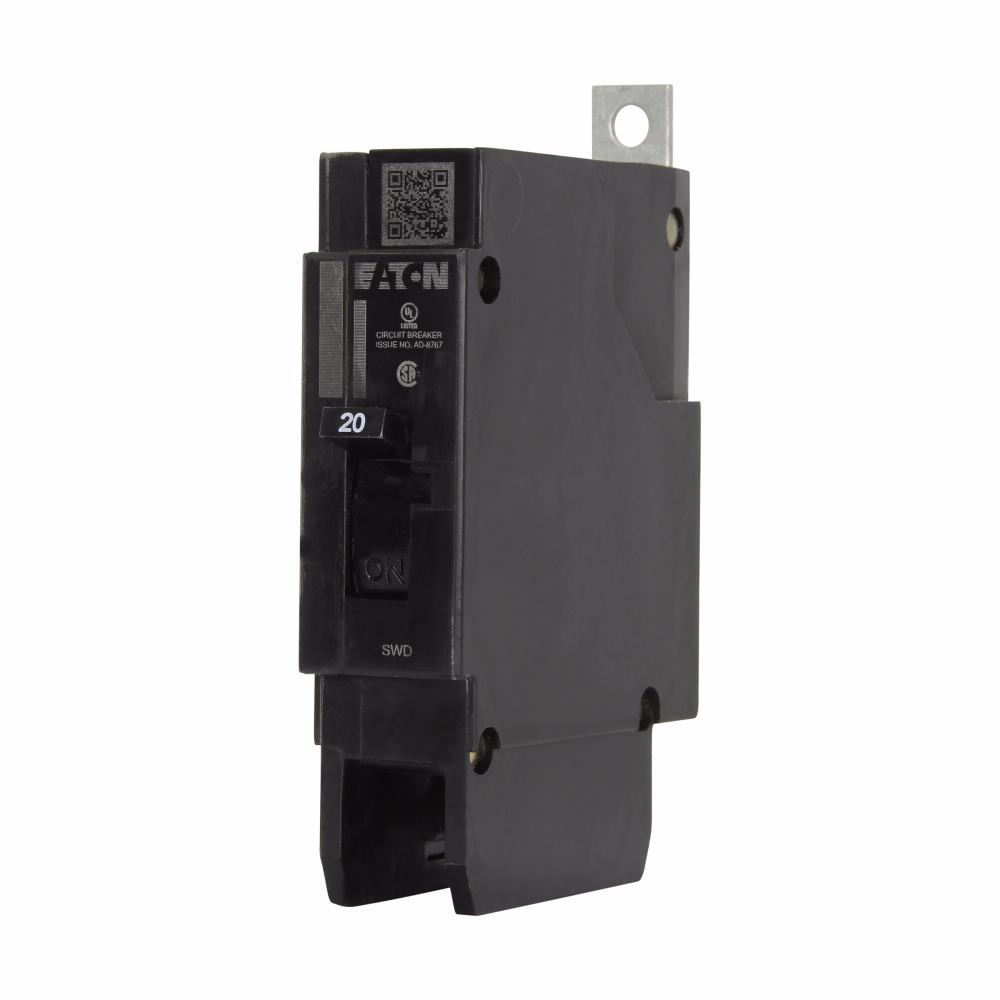

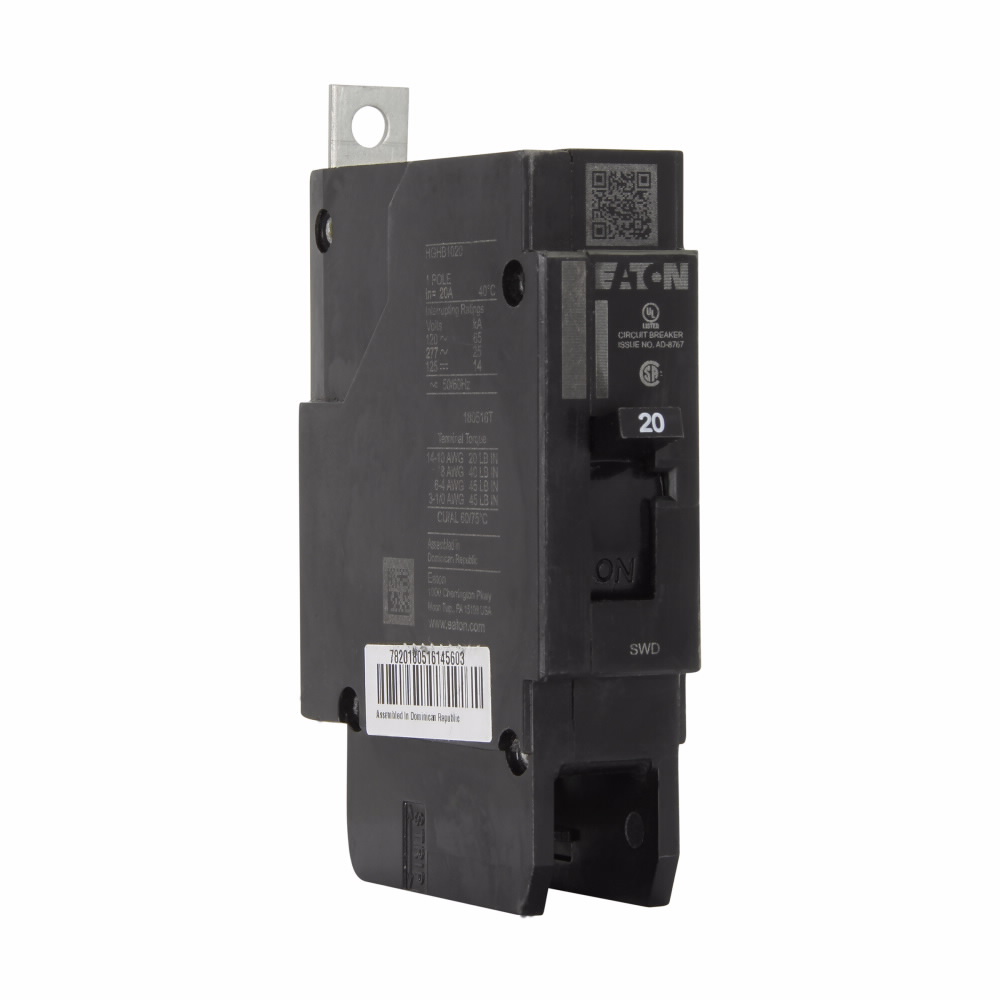

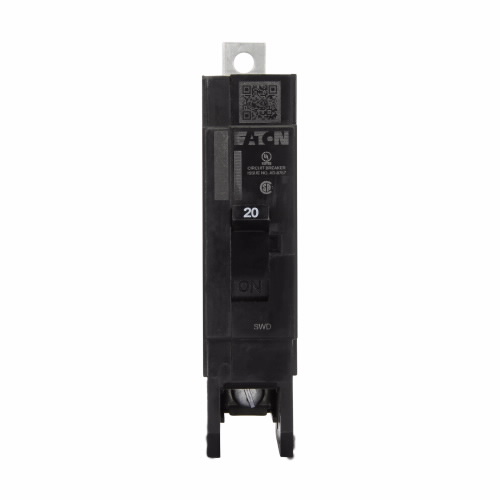

Short Description: 1P Molded Case Circuit Breaker, 20 A, 277 VAC;125 VDC
Long Description: Molded Case Circuit Breaker, 20 A, Non-Interchangeable Thermal Magnetic Tripping Mechanism, Bolt-On, 277 V AC;125 V DC, G-Frame, 50/60 Hz, 2.1 in Overall Height, 6.1 in Overall Length
Extra Long Description: ETN GHB1020 20A GHB 1P BKR
| Poles | 1 |
|---|---|
| Voltage Rating | 277 V AC / 125 V DC |
| Current Rating | 20 A |
| Interrupt Rating | 14 kAIC @ 277 V AC |
| Frame | G (G-Frame) |
| Trip Type | Non-Interchangeable Thermal Magnetic |
| Mounting Type | Bolt-On |
| Frequency | 50/60 Hz |
| Overall Length | 6.1 in |
|---|---|
| Overall Height | 2.1 in |
| Other Dimensions | 2.63 in x 1.00 in x 4.00 in |
| Weight per Unit | 0.65 lb |
| Minimum Order Quantity | 1 |
|---|---|
| Unit Price | $104.64 |
| Standard Packaging | $2,511.36 (Per 24 Units) |
