(Each)
$89.71
(Each)
(per 1)
In Stock Locally
$89.71
| Catalog Number | GM40AV |
|---|---|
| Vendor Code | INT |
| Manufacturer | Intermatic |
| Manufacturer’s Part Number | GM40AV |

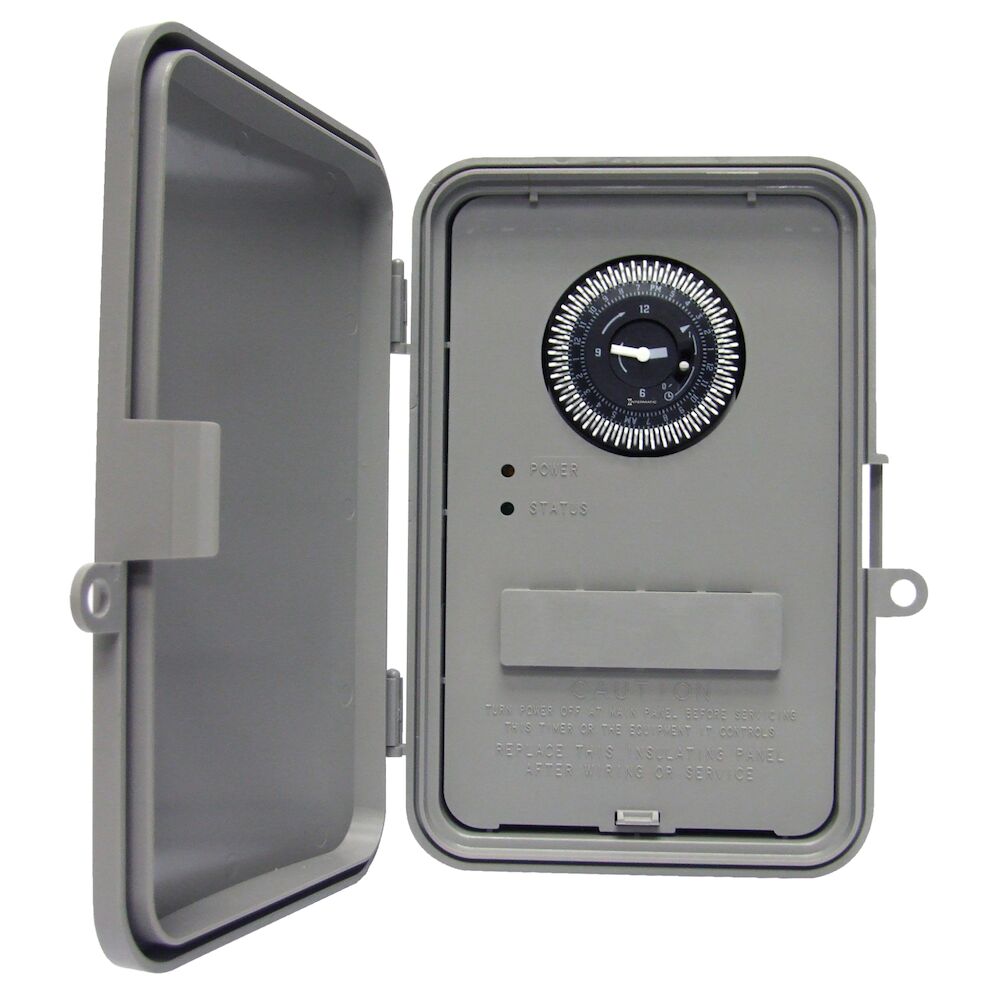

| Description | 24-Hour Electromechanical, 40A, SPDT/DPDT, Auto-Vo Starter, 1440 Min Time Setting Mode, 2 NO/2 NC Contact Form, 15 Min Time Setting, 120 to 208/240/277 V AC, 40 A, 2 Poles, Screw Box Lug Connection, -40 °F to +131 °F Operating Temperature, 8.88 x 6.61 x 3 in Size, 1.9 lbs |
| Categories | Timer Controls – Electromechanical Time Switches |
| Classification | Time Clocks |
| UNSPSC | N/A |
| UPC/GTIN | 078275123755 / 00078275123755 |
| Weight per Unit | 1.9 lbs |
| Minimum Order Quantity | 1 |
| Unit Price | $89.71 (Each) |
| Stock Availability – Nacogdoches | 0 |
| Stock Availability – All Stores | 31 |
| Voltage Rating | 120 to 208/240/277 V AC |
| Current Rating | 40 A |
| Poles | 2 |
| Connection Type | Screw Box Lug |
| Dimensions | 8.88 x 6.61 x 3 in (22.56 x 16.79 x 7.62 cm) |
| Time Setting Mode | 1440 min (24 hours) |
| Contact Form | 2 NO / 2 NC |
| Minimum Time Setting | 15 min |
| Maximum Time Setting | 1440 min |
| Operating Temperature Range | -40 °F to +131 °F (-40 °C to +55 °C) |
| Standards | cULus Listed #E10694; HVACR |
| Motor Power Ratings |
1 HP @ 120 VAC (16FLA and 90LRA-NO), 2 HP @ 208-277 VAC (12FLA and 52LRA-NO), 1 HP @ 120 VAC (12FLA and 30LRA-NC), 2 HP @ 240 VAC (10FLA and 30LRA-NC) |
| Contact Rating |
40 AMP @ 120 – 277 VAC (Resistive NO), 30 AMP @ 120 VAC (Ballast NO), 20 AMP @ 277 VAC (Ballast NO), 15 AMP @ 120 VAC (Tungsten NO), 30 AMP @ 120 – 277 VAC (Resistive NC), 2 AMP @ 120 VAC (Tungsten NC), 10 AMP @ 277 VAC (Ballast NC) |
| Operating Cycles | 50,000 |
| Features |
Power and Status LED Indicators, 96 Captive Trippers Enable 48 On/Off Operations Each Day, Automatically Adjusts Voltage Between 120 and 277 V AC, Manual 3-Way Off/Auto/On Override Switch, Easy-to-Set True Clockface, Mechanism Simply Snaps Into Many Enclosures, 1 Year Warranty |
| Enclosure | NEMA 3R Plastic |
| Mounting | Wall Mount |
| Application | General Purpose; Lighting; HVACR; Pumps; Motors; Fans; Access Controls; Agricultural; Indoor/Outdoor |
| Environmental Conditions | 0 – 95% RH Non-Condensing |
