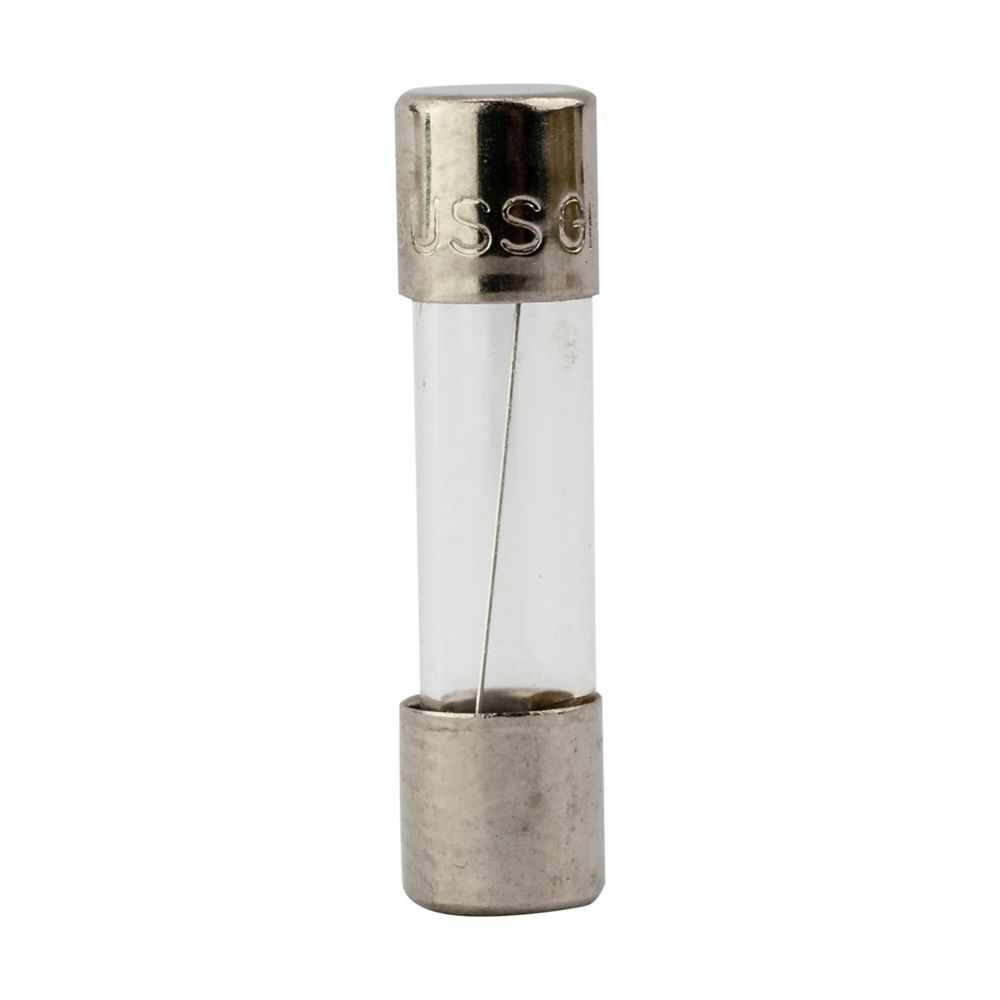

GMA1R – 1A 250V Fa 5X20MM Glass Fuse
$
(per )
(Each)
$3.56
(Each)
$
(per 1)
$
(per 5)
Availability:
In Stock Locally
| Features | |
| Current Rating | 1 A |
| Voltage Rating | 250 V ac |
| Material | Glass (Body); Brass (End Cap) |
| Terminal Type | Ferrule |
| Interrupt Rating | 35 A @ 250 V ac; 10000 A @ 125 V ac |
| Amperage Rating | 1 A |
| Connection | Ferrule End X Ferrule End |
| Dimensions and Weight | |
| Diameter | 5.2 mm |
| Overall Length | 20 mm |
| Size | 5 mm Diameter X 20 mm Length |
| Descriptions | |
| Description | 1A 250V FA 5X20MM GLASS FUSE |
| Product Type | Fuse |
| Features | Fast-acting, glass tube 5 mm x 20 mm ferrule fuse designed to UL 248-14 for overcurrent protection of electronic circuits. Install into a Bussmann Series fuse holder, block or fuse clip. Also available with axial leads for thru-hole installation. Eaton’s GMA fast-acting, glass tube 5 mm x 20 mm ferrule fuses are designed to UL 248-14 for overcurrent protection of electronic circuits. Order in cartridge fuse format and install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available |
| Long Description | Fuse, Fast Acting Fuse Speed, 60 min @ 135%; 2 min @ 200 % Response Time, Ferrule End x Ferrule End Connection, 1 A, 250 V ac, Glass (Body); Brass (End Cap) Material, Ferrule Terminal, 5.2 mm Diameter, 20 mm Overall Length |
| Short Description | 1 A, 250 VAC, Fast Acting Fuse, Low-Break IEC Glass |
| Extra Long Description | EFSE GMA-1-R GMA 1A BUSS FUSE |
| Special Features | Low Breaking Capacity, Interrupt Rating 35 Amp at 250 Vac, 10 kA at 125 Vac, Material Glass Tube, Nickel Plated Brass Endcap, ROHS Complaint |
| Additional Information | |
| Fuse Speed | Fast Acting |
| Response Time | 60 min @ 135%; 2 min @ 200 % |
| Connection Type | Ferrule End x Ferrule End |
| Standards Met | UL Listed; Guide JDYX; File E19180; UL Listed; Guide JDYX2; File E19180; CSA Certified; Class 1422-01; File 53787; PSE Approval |
| Package Quantity | 5 CT |
| Dimensions | X X 0.7874 IN |
| Manufacturer Information | |
| Manufacturer’s Part Number | GMA-1-R |
| Brand | Eaton |
| GTIN | 00051712647830 |
| UPC | 051712647830 |
| Taxonomies, Classifications, and Categories | |
| Category Description | GLASS FUSES (and ceramic) |
| Type | Fast-Acting Fuse |
| Packaging | |
| Weight per each | 0.002 |
| Carton | 5 |
| Uses, Certifications, and Standards | |
| Application | Electronic Circuits |
| Standard | RoHS Compliant, CE Marked |
