(Each)
$3.56
(Each)
(per 5)
In Stock Locally
$3.56
| Attribute | Details |
|---|---|
| Catalog Number | GMA2R |
| Vendor Code | BUS |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | GMA2R |
| Product Type | Fuse – Fast Acting |

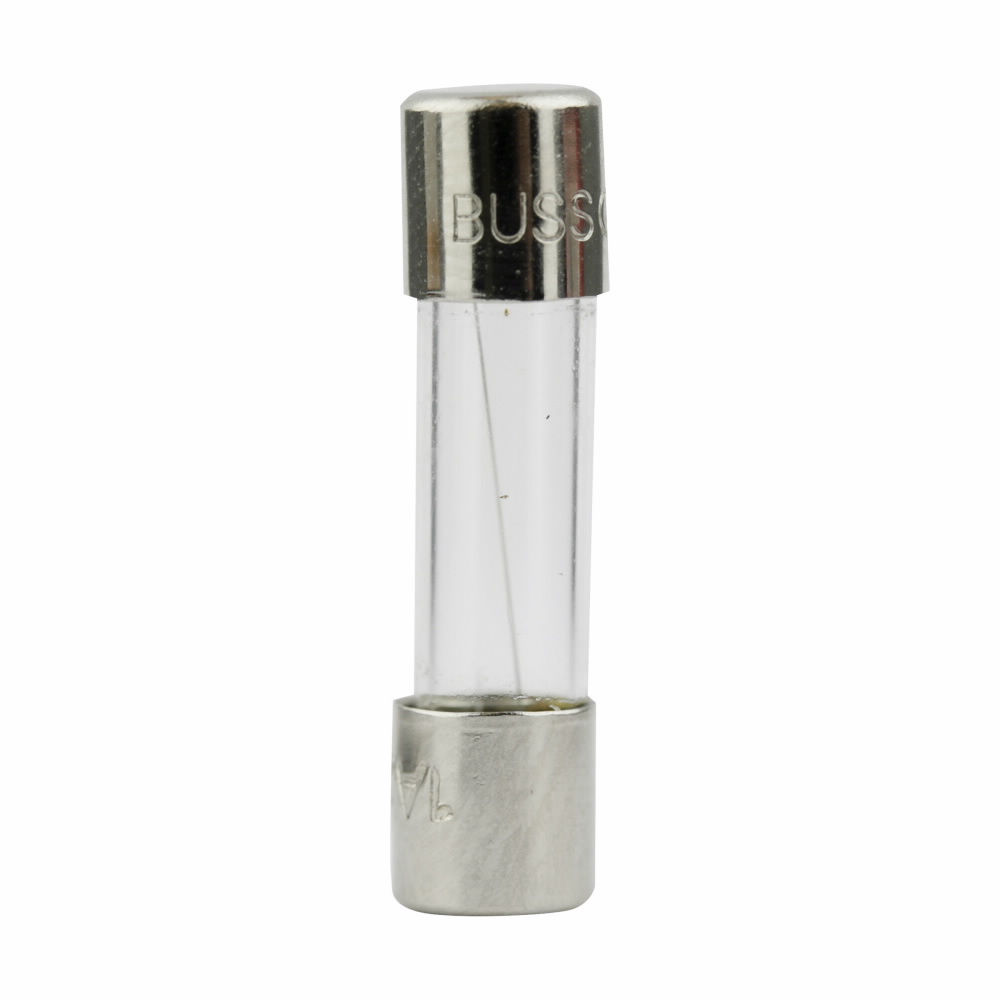

| Description | 2A 250V Fast Acting Glass Fuse |
| Long Description | Fuse, Fast Acting Speed, 60 min @ 135%; 2 min @ 200%, Ferrule Ends, Glass Body, Brass End Caps |
| Amperage Rating | 2 A |
| Voltage Rating | 250 V AC |
| Interrupting Rating | – 100 A @ 250 V AC – 10,000 A @ 125 V AC/VDC |
| Fuse Speed | Fast Acting |
| Response Time | 60 min @ 135%; 2 min @ 200% |
| Fuse Type | Non-Indicating |
| Terminal Type | Ferrule |
| Connection Type | Ferrule End x Ferrule End |
| Material | Glass Tube, Brass End Caps (Nickel Plated) |
| Dimensions (Dia. x Length) | 5.2 mm x 20 mm |
| Weight per Unit | 0.002 lbs |
| UNSPSC | 39121607 – Glass body fuses |
| UPC / GTIN | 051712647892 / 00051712647892 |
| Short Description | 2 A, 250 VAC, Fast Acting Fuse |
| Category | Fuses – Small Dimension Fuses |
| Classification | Glass Fuses (and Ceramic) |
| Manufacturer Status | Inactive |
| Certifications / Standards | UL 248-14, CSA (Class 1422-01, File 53787), CE, PSE Approval |
| Price | $3.56 (Each), $17.80 (Per 5) |
| Minimum Order Quantity | 1 |
| Standard Packaging | 5 per carton |
| Application | Electronic Circuits |
| Special Features | Low Breaking Capacity, RoHS Compliant |
