| Field | Details |
|---|---|
| Catalog Number | IPLD5004 |
| Vendor Code | NSI |
| Manufacturer | Nsi |
| Manufacturer’s Part Number | IPLD500-4 |

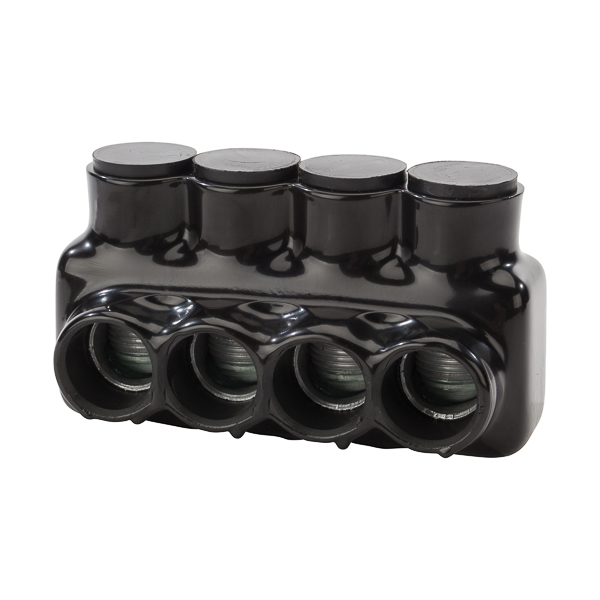

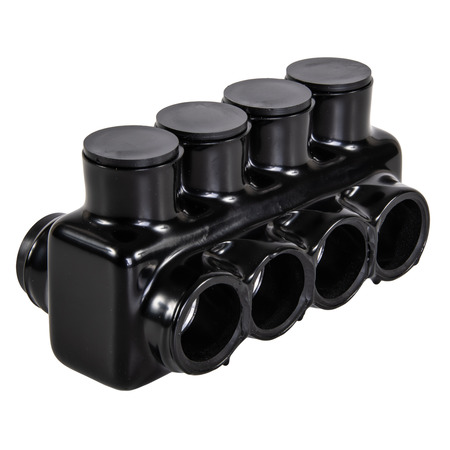

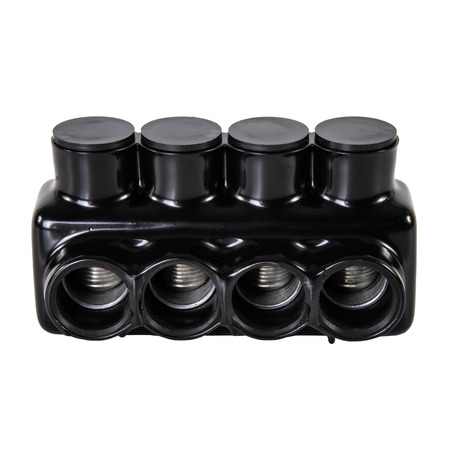

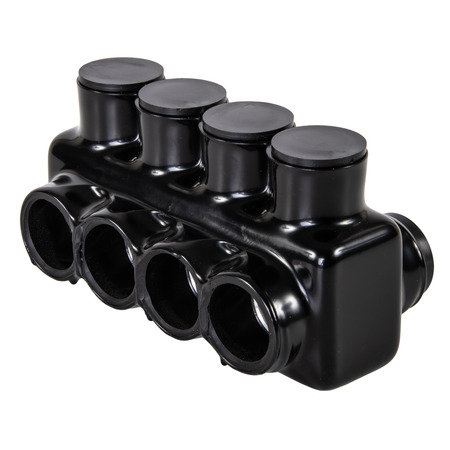

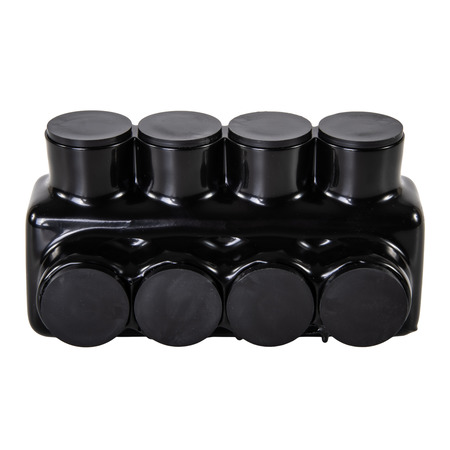

| Description | 500MCM-#4 4 Pole Polaris Connector Block |
| Detailed Description | Multi-Tap Connector, #4 Awg Conductor Size, 500 MCM Conductor Size, Insulated, Plastisol Insulation Material, Copper/Aluminum Conductor Material, Black Insulation Color, 4 Conductors, -45 °C Operating Temperature, +90 °C Operating Temperature, 5.24 In Overall Length, 600 V, 1.0499 LB/Ea |
| Categories | Solderless Connectors – Large Terminals & Connectors |
| Classification | Split Bolts |
| UNSPSC | 39121409 – Wire connectors |
| UPC/EAN/GTIN | 662381925022 / 6623819250226 / 00662381925022 |
| Weight per unit | 1.0499 (lbs/each) |
| Minimum Order Quantity | 1 |
| Unit Price | $123.12 (Each) |
| Carton Price | $369.36 (Per 3) |
| Stock Availability | Nacogdoches: 0 (Find nearest stock), All Stores: 419 |
| Number of Conductors | 4 |
| Poles | 1 |
| Wire Size | 500 MCM-4 AWG |
| Voltage Rating | 600 V |
| Material | Aluminum |
| Insulation Material | Plastisol |
| Conductor Material | Copper; Aluminum |
| Insulation Color | Black |
| Color | Black |
| Finish | Plastisol Insulated |
| Overall Length | 5.24 in |
| Size | L=5.240 – W=2.830 – H=2.910 |
| Product Type | Multi-Tap Connector |
| Short Description | Multi-Tap Connector, Insulated, 5.24 in L, 600 V |
| Special Features | Abrasion Resistant; Chemical Resistant; UV Resistant |
| Extra Long Description | NSI IPLD500-4 POLARIS Ins Multi-Tap |
| Features | The Polaris IPLD500-4 4-Port Dual-Sided Connector provides the simplest solution for forming a secure connection between up to four conductors in cable trays, panel boards, ducts, raceways or troughs. Sized for 500 MCM – 4 AWG wires and rated for 600V. Pre-insulated with oxide inhibitor, installs faster using hex key and torque wrench. Aluminum alloy body wrapped in high-dielectric str |
| Minimum Conductor Size | #4 AWG |
| Maximum Conductor Size | 500 MCM |
| Insulated/Non-Insulated | Insulated |
| Minimum Operating Temperature | -45 °C |
| Maximum Operating Temperature | +90 °C |
| For Use With | Wire Termination |
| Maximum Voltage Rating | 600 V |
| Standards Met | UL Listed 486B; CSA Certified; cULus Listed |
| Package Quantity | 3 CT |
| Warranty | 1 YEAR |
| Wire Type | Class B & C |
| Brand | Nsi Industries |
| Sub Brand | POLARIS(TM) |
| GTIN | 00662381925022 |
| UPC | 662381925022 |
| Category Description | SPLIT BOLTS |
| Type | Double Sided Entry |
| Packaging Weight | 1.0499 lb/EA |
| Carton Quantity | 3 |
| Environmental Conditions | 90 °C |
| Temperature Rating | 90 °C |
| Standard | UL 486A/B |
| Application | Wire Termination |
