(Each)
$29.04
(Each)
(per 1)
(per 6)
In Stock Locally
$29.04
| Category | Details |
|---|---|
| Quick Specs | |
| Catalog Number | IT10 |
| Vendor Code | NSI |
| Manufacturer | Nsi |
| Manufacturer’s Part Number | IT-1/0 |
| Description | 1/0-#14 Polaris Insul-Tap Connector |
| Extra Description | Insulation-Tap Connector, #14 AWG Conductor Size, 1/0 AWG Conductor Size, Insulated, Plastisol Insulation Material, Copper/Aluminum Conductor Material, Black Insulation Color, 2 Conductors, -45 °C to +90 °C Operating Temperature, 1.62 in Overall Length, 600 V, 0.13 lb/ea |
| Slang Terms | (none provided) |
| Categories & Classification | |
| Categories | Solderless Connectors – Large Terminals & Connectors |
| Classification | Split Bolts |
| UNSPSC | 39121434 – Electrical metallic tubing EMT connectors |
| UPC/EAN/GTIN | 662381950031 / 6623819500314 / 00662381950031 |
| Weight & Packaging | |
| Weight per unit | 0.13 lbs/each |
| Minimum Order Quantity | 1 |
| Unit Price | $29.04 (Each) |
| Carton Price | $174.24 (Per 6) |
| Stock Availability | |
| Nacogdoches Stock | 58 (Check another store) |
| All Stores Stock | 6,100 |
| Features | |
| Number of Conductors | 2 |
| Voltage Rating | 600 V |
| Poles | 1 |
| Wire Size | 1/0 – 14 AWG |
| Material | Aluminum |
| Insulation Material | Plastisol |
| Conductor Material | Copper; Aluminum |
| Insulation Color | Black |
| Color | Black |
| Finish | Plastisol Insulated |
| Dimensions and Weight | |
| Overall Length | 1.62 in |
| Size | L=1.620 in, W=1.620 in, H=1.750 in |
| Weight | 0.13 lb/each |
| Descriptions | |
| Product Type | Insulation-Tap Connector |
| Long Description | Insulation-Tap Connector, #14 AWG Conductor Size, 1/0 AWG Conductor Size, Insulated, Plastisol Insulation Material, Copper/Aluminum Conductor Material, Black Insulation Color, 2 Conductors, -45 °C to +90 °C Operating Temperature, 1.62 in Overall Length, 600 V, 0.13 lb/ea |
| Short Description | Insulation-Tap Connector, Insulated, 1.62 in L, 600 V, 1/0-14 AWG |
| Special Features | Abrasion Resistant; Chemical Resistant; UV Resistant |
| Extra Long Description | NSI IT-1/0 POLARIS Ins 2 Port 1/0 |

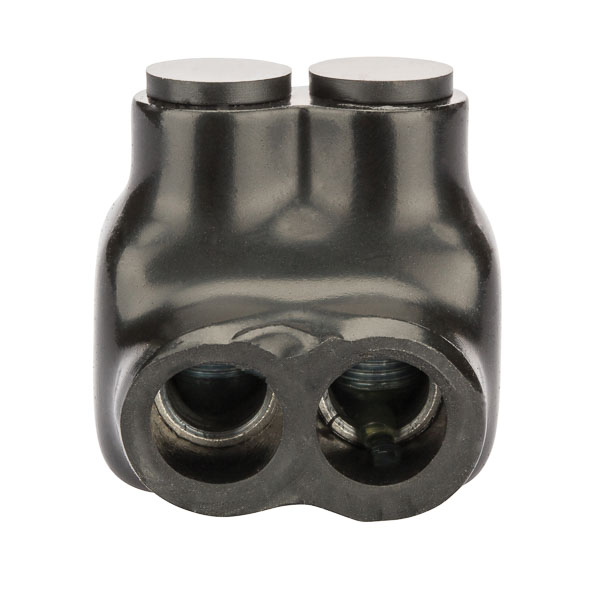

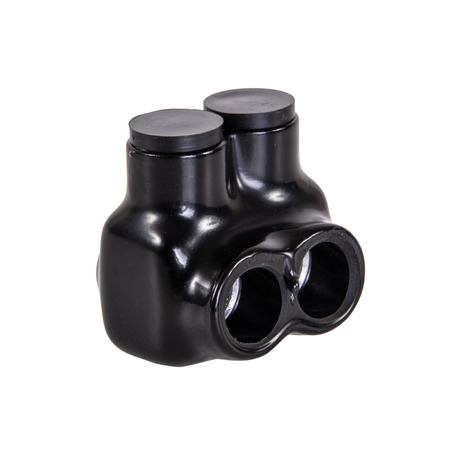

| Features | The Polaris IT-1/0 2-Port Single-Side Connector provides a simple solution for secure connection between two conductors in cable trays, panel boards, ducts, raceways, or troughs. Sized for 1/0 to 6 AWG wires, rated 600V, pre-insulated with oxide inhibitor, installs quickly with hex key and torque wrench. Aluminum alloy body wrapped in high-dielectric strength plastisol. |
| Additional Information | |
| Minimum Conductor Size | #14 AWG |
| Maximum Conductor Size | 1/0 AWG |
| For Stud Size | 3/16 in (Hex) |
| Insulated/Non-Insulated | Insulated |
| Minimum Operating Temperature | -45 °C |
| Maximum Operating Temperature | +90 °C |
| For Use With | Wire Termination; Copper and Aluminum Cable |
| Maximum Voltage Rating | 600 V |
| Standards Met | UL Listed 486A, 486AB; cULus Listed |
| Package Quantity | 6 CT |
| Warranty | 1 YEAR |
| Wire Type | Class B & C |
| Manufacturer Information | |
| Brand | Nsi Industries |
| Manufacturer’s Part Number | IT-1/0 |
| Sub Brand | Polaris Black |
| GTIN | 00662381950031 |
| UPC | 662381950031 |
| Taxonomies, Classifications, and Categories | |
| Category Description | SPLIT BOLTS |
| Type | Multi Cable |
| Packaging | Weight per each: 0.13 lb, Carton: 6 |
| Uses, Certifications, and Standards | |
| Environmental Conditions | 90 °C |
| Temperature Rating | 90 °C |
| Standard | UL 486A/B |
| Application | Wire Termination |
