| Specification | Details |
|---|---|
| Catalog Number | L60030M3CDIN |
| Vendor Code | L-F (Littelfuse) |
| Manufacturer’s Part Number | L60030M-3CDIN |
| UPC / GTIN | 079458117974 / 00079458117974 |
| Brand / Series | Littelfuse Powr-Gard® |

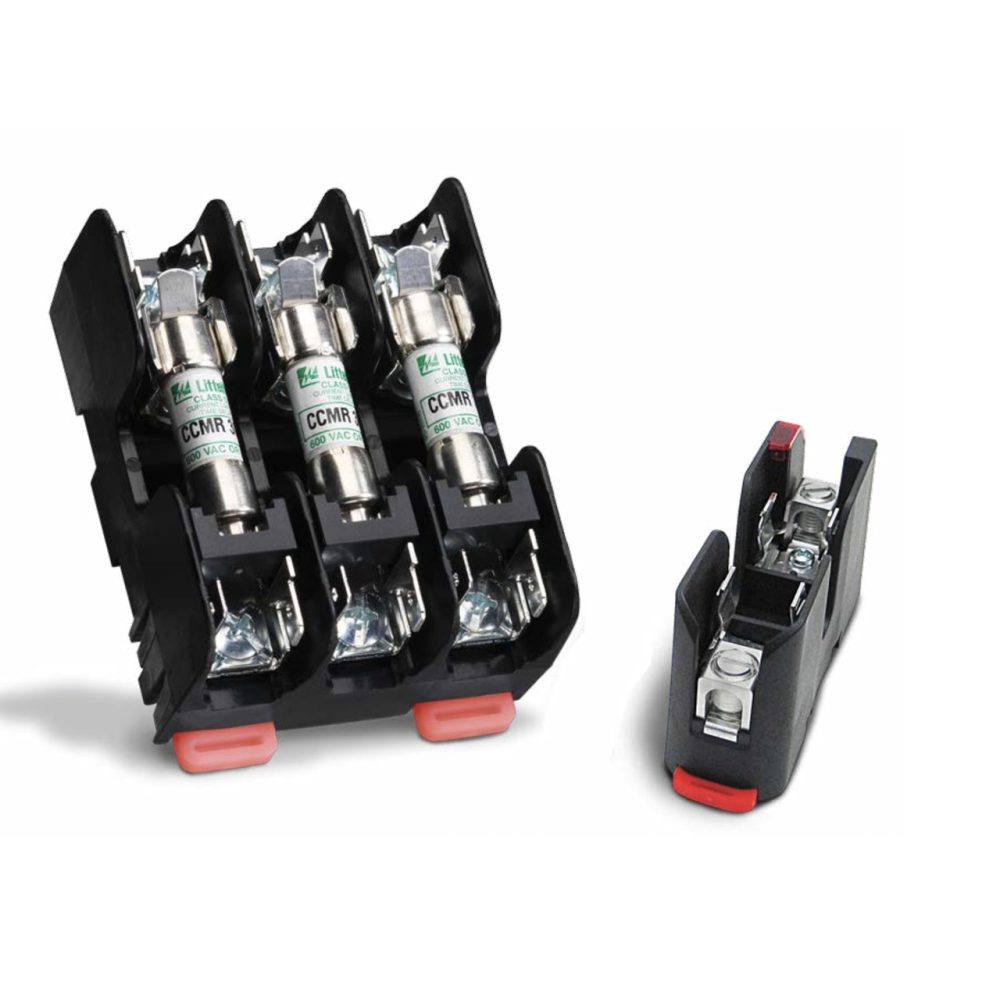

| Product Type | Fuse Block |
| Fuse Type | Midget (13/32″ x 1.5″) |
| Number of Poles | 3 |
| Current Rating | 30 A |
| Voltage Rating | 600 V AC / DC |
| Mounting Type | DIN Rail Mount |
| Terminal / Connection Type | Pressure Plate with Quick Connect Terminal |
| Wire Size Range | #14 to #6 AWG |
| Materials | Box Lug: Copper Screw & Pressure Plate: Zinc-Plated Steel Base: Thermoplastic |
| Dimensions | Length: 2.283 in (57.15 mm) Width: 1.25 in (31.75 mm) Height: 3.0 in (76.2 mm) |
| Weight | 1.75 lb (Each) |
| Minimum Order Quantity | 1 |
| Unit Price | $66.92 (Each) |
| Stock Availability | 0 in Nacogdoches, 127 units in all stores |
| Special Features | Clip design reduces resistance and heat Space-saving DIN mount Class CD indication compatibility |
| Category Description | Fuse Blocks, Fuse Holders |
| UNSPSC | 39121629 – Fuse Block |
| Standards Met | UL Listed, CSA Certified, RU Recognized, RoHS Compliant |
| Packaging | Carton of 1 |
