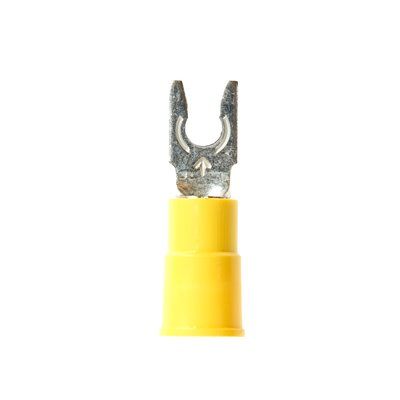

LFV108Q – Highland Vinyl Ins Locking Fork Term, 12-10awg
$
(per )
(Each)
$19.76
(Each)
$
(per 1)
$
(per 10)
Availability:
In Stock Locally
| Category | Detail |
|---|---|
| Catalog Number | LFV108Q |
| Vendor Code | SCO |
| Manufacturer | Scotchlok |
| Manufacturer Part Number | LFV108Q |
| Brand | Scotchlok |
| Sub Brand | Highland™ |
| Description | Highland Vinyl Ins Locking Fork Term, 12-10 AWG |
| Product Type | Locking Fork |
| Short Description | #16 to #14 AWG Vinyl Insulated Butted Seam – Locking Forks, #8 Stud Size |
| Extra Long Description | 3M 7010321020 3M™ Highland™ Vinyl I |
| Long Description | Locking Fork, #12 AWG Conductor Size, #10 AWG Conductor Size, Insulated, Vinyl, Yellow, -40 °F to +221 °F, 1.03 in Length, 0.12 lb |
| Features | Spring-like tongue, color-coded vinyl insulation, butted-seam barrel, tin-plated, electrolytic copper, corrosion resistance |
| Special Features | Barrel Style Butted |
| Slang Terms | — |
| Categories | Solderless Connectors – Small Terminals & Connectors |
| Classification | Terminals |
| UNSPSC | 39121400 – Electrical lugs, plugs and connectors |
| UPC/GTIN | 051128600160 / 00051128600160 |
| Weight per Unit | 0.0125 lbs/each |
| Weight (Total) | 0.12 lb |
| Minimum Order Quantity | 1 |
| Unit Price | $19.76 (Each) |
| Standard Packaging Price | $197.60 (Per 10) |
| Packaging – Carton | 1 |
| Packaging – Package | 10 |
| Package Quantity | 25 BG |
| Stock – Nacogdoches | 0 (Find nearest stock) |
| Stock – All Stores | 240 |
| Terminal Type | Fork Terminal |
| Insulation Material | Vinyl |
| Insulation Color | Yellow |
| Overall Length | 1.03 in |
| Minimum Conductor Size | #12 AWG |
| Maximum Conductor Size | #10 AWG |
| For Stud Size | #8 AWG |
| Insulated/Non-Insulated | Insulated |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | +221 °F |
| Made in USA | Yes |
| Standards Met | UL Listed, CSA Certified, RoHS |
