MC122STBKWH – 12/2 WG MC STR BK/WH/GN Alu Armor 250′
$
(per )
(Each)
$0.96
(Each)
$
(per 1)
Availability:
In Stock Locally
| Field | Details |
|---|---|
| Catalog Number | MC122STBKWH |
| Vendor Code | ALF |
| Manufacturer | Flexible Conduit |
| Manufacturer’s Part Number | 2158S42-00 |

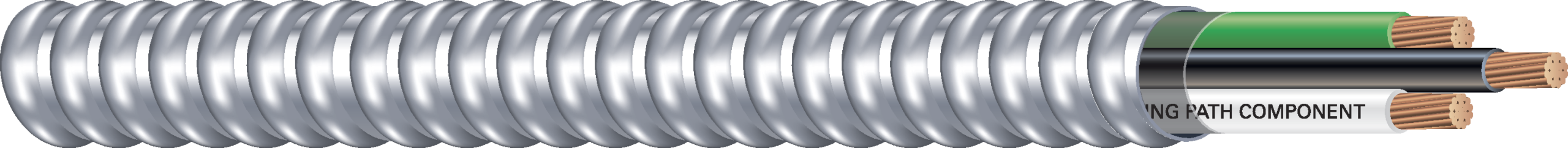

| Description | 12/2 WG MC STR BK/WH/GN Alu Armor 250′ Aluminum Armored Conductor, Stranded, 19 Strands, #12 AWG Conductor Size, PVC Jacket Material, Thermoplastic Nylon Insulation Material, Copper Conductor Material, 600 V, 20 A, Black, White and Green, 2 Conductors, 250 FT Overall Length, 0.494 In Outside Diameter, +90 °C Operating Temperature, 110 LB/MFT |
| Slang Terms | — |
| Categories | Enhanced Commodity Codes – Wire |
| Classification | BX & MC |
| UNSPSC | 26121517 – Copper wire |
| UPC/GTIN | 032886347559 / 00032886347559 |
| Weight per unit | 0.11 (lbs/each) |
| Price & Packaging | Minimum Order Quantity: 1 Unit Price: $0.96 (Each) Carton Price: $239.89 (Per 250) |
| Stock Availability | Nacogdoches: 250 (Check another store) All Stores: 185,500 |
| Features | Conductor Size: #12 AWG Current Rating: 20 A Number of Conductors: 2 Voltage Rating: 600 V |
| Material, Color, and Finish | Insulation Material: Thermoplastic Nylon Conductor Material: Copper Color: Black; White; Green Jacket Material: PVC |
| Dimensions and Weight | Overall Length: 250 ft Length: 250 Outside Diameter: 0.494 in |
| Descriptions | Product Type: Aluminum Armored Conductor Long Description: Aluminum Armored Conductor, Stranded, 19 Strands, #12 AWG Conductor Size, PVC Jacket Material, Thermoplastic Nylon Insulation Material, Copper Conductor Material, 600 V, 20 A, Black, White and Green, 2 Conductors, 250 ft Overall Length, 0.494 in Outside Diameter, +90 °C Operating Temperature, 110 lb/mft Short Description: Aluminum Armored Conductor, Stranded, 12/3 AWG with ground, PVC Jacket, 250 ft Description: 12/2 WG MC STR BK/WH/GN ALU ARMOR Extra Long Description: SWC 69114701 Armorlite Type MC |
| Additional Information | Solid/Strand: Stranded Number of Strands: 19 Maximum Operating Temperature: +90 °C |
| Standards Met | RoHS Compliant; Federal Specification A-A-59544; IEEE 1202; NEC; UL 83; UL1569; UL1685 |
| Made in USA | Yes |
| Media | Yes |
| Manufacturer Information | Brand: Flexible Conduit Manufacturers Part Number: 2158S42-00 GTIN: 00032886347559 UPC: 032886347559 |
| Taxonomies, Classifications, and Categories | Category Description: BX & MC Type: MC Packaging: Coil Weight: 110 lb/mft Weight per each: 0.11 Carton: 250 |
| Uses, Certifications, and Standards | Application: Commercial; Industrial; Institutional; Multi-Residential Buildings |
