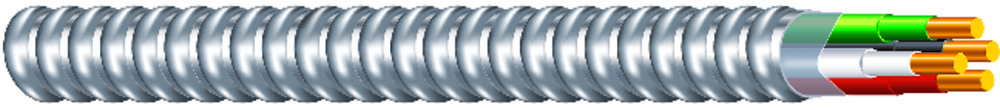

MC122STBKWH1000 – 12/2 WG MC STR BK/WH/GN Alu Armor 1000′
$
(per )
(Each)
$0.95
(Each)
$
(per 1)
Availability:
In Stock Locally
| Field | Details |
|---|---|
| Catalog Number | MC122STBKWH1000 |
| Vendor Code | ALF |
| Manufacturer | Flexible Conduit |
| Manufacturer’s Part Number | 69114702 |
| Description | 12/2 WG MC STR BK/WH/GN Alu Armor 1000′ |
| Long Description | Aluminum Armored Conductor, Stranded, 19 Strands, #12 AWG Conductor Size, PVC Jacket Material, Thermoplastic Nylon Insulation Material, Copper Conductor Material, 600 V, 20 A, Black, White and Green, 2 Conductors, 1000 ft Overall Length, 0.494 in Outside Diameter, +90 °C Operating Temperature, 110 lb/mft |
| Short Description | Aluminum Armored Conductor, Stranded, 12/2 AWG, PVC Jacket, 1000 ft |
| Extra Long Description | SWC 69114702 Armorlite Type MC |
| Slang Terms | — |
| Categories | Enhanced Commodity Codes – Wire |
| Classification | BX & MC |
| UNSPSC | 26121517 – Copper wire |
| UPC/GTIN | 032886347252 / 00032886347252 |
| Weight per Unit | 0.11 lbs/each |
| Price & Packaging | Minimum Order Quantity: 1 |
| Unit Price: $0.95 (Each) | |
| Carton Price: $951.63 (Per 1,000) | |
| Stock Availability | Nacogdoches: 3,000 (Check another store) |
| All Stores: 47,000 | |
| Features | Conductor Size: #12 AWG |
| Current Rating: 20 A | |
| Number of Conductors: 2 | |
| Voltage Rating: 600 V | |
| Insulation Material: Thermoplastic Nylon | |
| Conductor Material: Copper | |
| Color: Black; White; Green | |
| Jacket Material: PVC | |
| Dimensions and Weight | Overall Length: 1000 ft |
| Length: 1000 ft | |
| Outside Diameter: 0.494 in | |
| Weight: 110 lb/mft | |
| Weight per each: 0.11 | |
| Maximum Operating Temperature: +90 °C | |
| Solid/Strand | Stranded |
| Number of Strands | 19 |
| Standards Met | RoHS Compliant; Federal Specification A-A-59544; IEEE 1202; NEC; UL 83; UL 1569; UL 1685 |
| Made in USA | Yes |
| Media | Yes |
| Manufacturer Information | Brand: Flexible Conduit |
| Manufacturer’s Part Number: 69114702 | |
| GTIN: 00032886347252 | |
| UPC: 032886347252 | |
| Taxonomies, Classifications, and Categories | Category Description: BX & MC |
| Type: MC | |
| Packaging Package Type: Reel | |
| Carton Quantity | 1000 |
| Uses, Certifications, and Standards | Application: Commercial; Industrial; Institutional; Multi-Residential Buildings |
