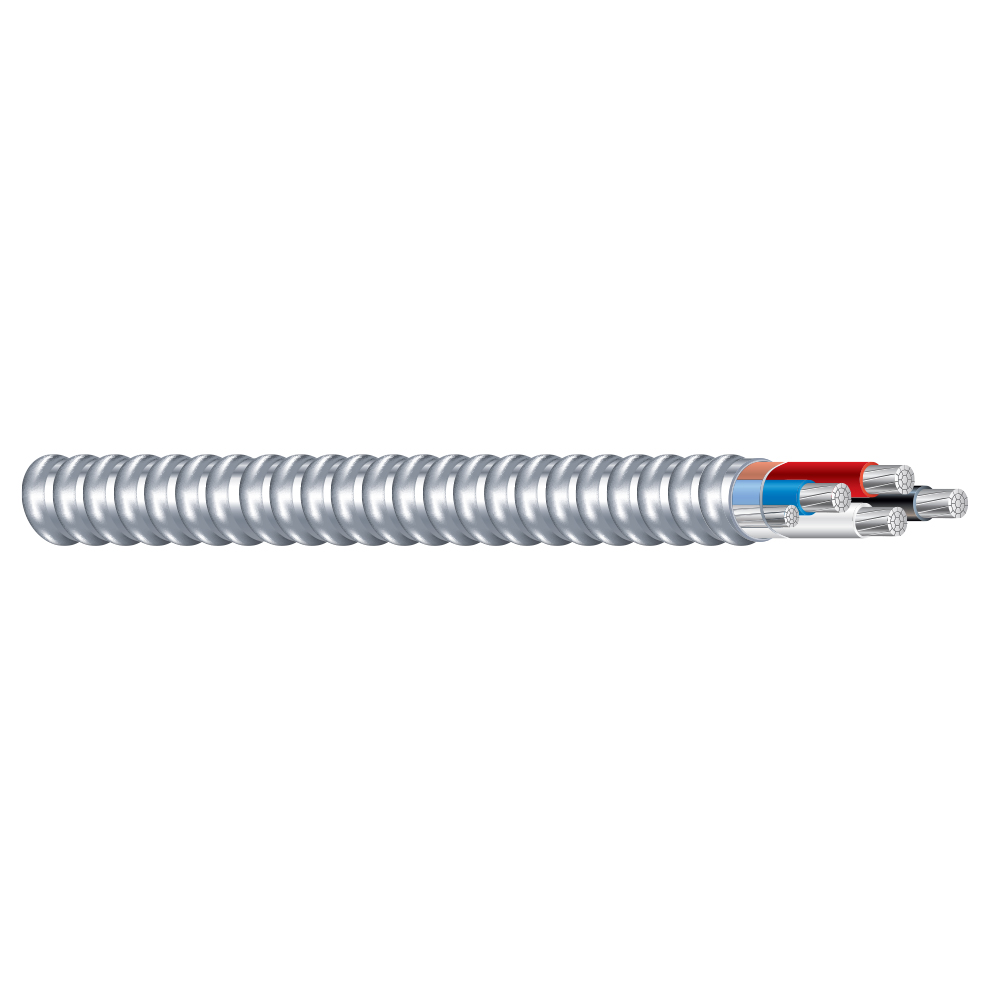

MC123STWG – 12/3 WG MC STR BK/WH/RD/GN Alu Armor
$
(per )
(Each)
$1.45
(Each)
$
(per 1)
Availability:
In Stock Locally
| Field | Value |
|---|---|
| Catalog Number | MC123STWG |
| Vendor Code | ALF |
| Manufacturer | Flexible Conduit |
| Manufacturer’s Part Number | 69115401 |
| Description | 12/3 WG MC STR BK/WH/RD/GN Alu Armor 250′ |
| Product Type | Aluminum Armored Conductor |
| Short Description | Aluminum Armored Conductor, Stranded, 12/3 AWG with ground, PVC Jacket, 250 ft |
| Long Description | Aluminum Armored Conductor, Stranded, 19 Strands, #12 AWG, PVC Jacket, Thermoplastic Nylon Insulation, Copper, 600 V, 20 A, Black/Red/Green, 3 Conductors, 250 ft, 0.537 in OD, +90 °C |
| Conductor Size | #12 AWG |
| Number of Conductors | 3 |
| Number of Strands | 19 |
| Conductor Type | Stranded |
| Current Rating | 20 A |
| Voltage Rating | 600 V |
| Insulation Material | Thermoplastic Nylon |
| Jacket Material | PVC |
| Conductor Material | Copper |
| Color | Black; White; Red; Green |
| Outside Diameter | 0.537 in |
| Maximum Operating Temperature | +90 °C |
| Made in USA | Yes |
| Standards Met | RoHS, A-A-59544, IEEE 1202, NEC, UL 83, UL 1569, UL 1685 |
| Category Description | BX & MC |
| Classification | BX & MC |
| UNSPSC | 26121517 – Copper wire |
| UPC/EAN/GTIN | 032886347658 / 00032886347658 |
| Weight per Unit | 0.134 lbs/each |
| Weight (mft) | 137 lb/mft |
| Package Type | Coil |
| Carton Quantity | 250 |
| Minimum Order Quantity | 1 |
| Unit Price | $1.45 (Each) |
| Carton Price | $362.58 (Per 250) |
| Stock – Nacogdoches | 500 |
| Stock – All Stores | 24,000 |
| Applications | Commercial; Industrial; Institutional; Multi-Residential Buildings |
