(Each)
$9.64
(Each)
(per 1)
(per 40)
In Stock Locally
$9.64
| Attribute | Details |
|---|---|
| Catalog Number | N2 |
| Vendor Code | NSI |
| Manufacturer | Nsi Industries |
| Manufacturer’s Part Number | N-2 |

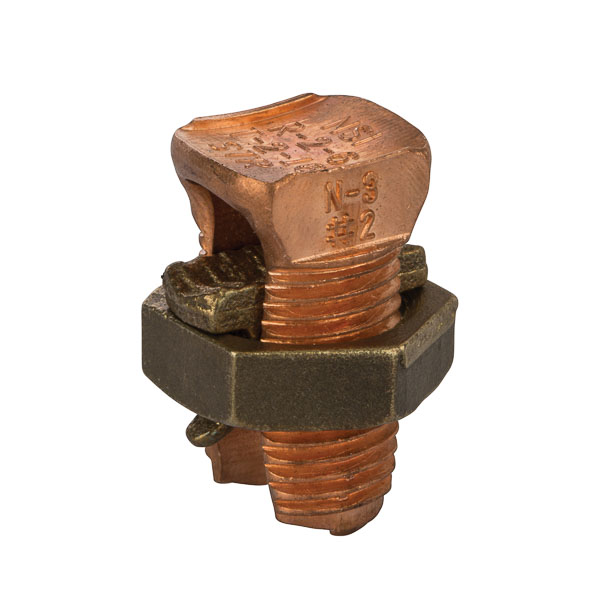

| Description | #2 STR Cu Split Bolt |
| Long Description | Split Bolt Connector, #6 AWG (Equal Main & Tap-Solid), #2 AWG (Equal Main & Tap-Stranded); #14 AWG min tap, non-insulated, copper/copperweld, 2 conductors, +90°C operating temp, 1.153 in length, 600 V |
| Short Description | #2 Split Bolt Connector, Non-Insulated, 1.153 in L, 600 V |
| Categories | Solderless Connectors – Large Terminals & Connectors |
| Classification | Split Bolts |
| UNSPSC | 39121719 – Strain reliefs |
| UPC/EAN/GTIN | 662381020055 / 6623810200558 / 00662381020055 |
| Weight per Unit | 0.13 lbs |
| Minimum Order Quantity | 1 |
| Unit Price | $9.64 |
| Carton Price | $9.64 (each) |
| Standard Packaging | $385.49 (per 40) |
| Stock – Nacogdoches | 0 |
| Stock – All Stores | 1,759 |
| Terminal Type | Split |
| Poles | 1 |
| Number of Conductors | 2 |
| Wire Size | #6 SOL – #2 STR |
| Voltage Rating | 600 V |
| Material | Copper |
| Conductor Material | Copper, Copperweld |
| Color | Copper |
| Finish | Copper |
| Overall Length | 1.153 in |
| Size | Length 1.153 in x Width 0.748 in |
| Special Features | High strength solderless service connector |
| Minimum Conductor Size | #6 AWG (equal main and tap-solid) |
| Maximum Conductor Size | #2 AWG (equal main and tap-stranded); #14 AWG (minimum tap with max main-stranded) |
| Insulated/Non-Insulated | Non-Insulated |
| Maximum Operating Temperature | +90 °C |
| Standards Met | UL Listed 486B, 486BA, 486BD; CSA Certified |
| Package Quantity | 40 CT |
| Warranty | 1 Year |
| Wire Type | Class A & B |
| Category Description | Split Bolts |
| Type | Copper Split Bolts |
| Packaging | Carton: 1, Package: 40 |
| Application | Wire Termination |
| Temperature Rating | 90°C |
